Epson EB-PU1006W Large venue projector 6000 ANSI lumens 3LCD WUXGA (1920x1200) White
Part number V11HA35920
EPSON EB-PU1006W BUSINESS PROJ 6000 LUMENS WUXGA WHITE
- Laser light source — up to 20,000 hours of use
- 11 optional powered lenses
- NFC function built-in
- Optional external air filter — extend the filter maintenance cycle in dusty environments
- Dynamic projection capabilities — advanced built-in Edge Blending, image warping and shape overlay features for a variety of applications; direct content playback from USB storage media
- Customized performance — brightness modes to maximize light source life and provide a consistent brightness level
- Powerful remote management — control and monitor projector status via the Epson Projector Management app for Windows
- Manufacturer
- Epson
- Part number
- V11HA35920
- Term
- Per Ingram SKU 9AK254
- Condition
- New
- Category
- Presentation Devices › Projectors
Overview

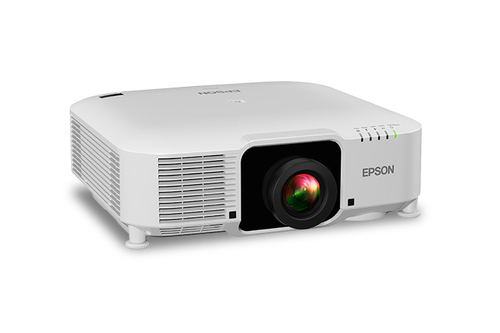

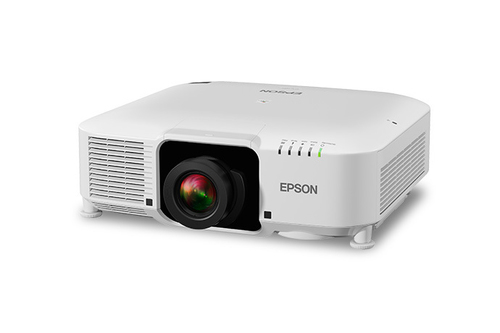

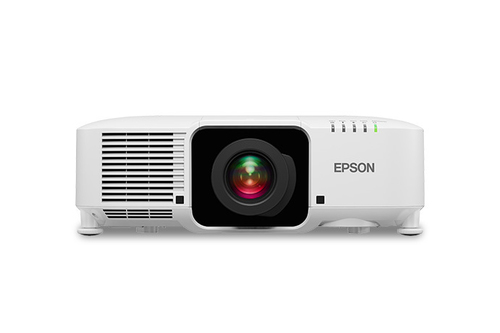

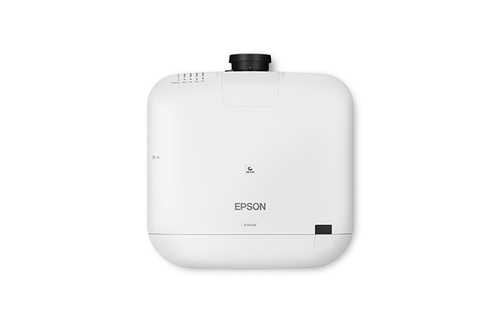

Premium, compact large-venue laser projector with 4K Enhancement.
The EB-PU1006W offers larger-than-life images from a sleek, powerful projector that’s easy to install. The most compact within Epson’s Pro Series, it’s compatible with a wide range of optional powered lenses, including a zero offset, .35 ultra short-throw lens.
Delivering best-in-class color brightness, with 6,000 lumens of color brightness and 6,000 lumens of white brightness, this 3-chip, 3LCD projector features a virtually maintenance-free 20,000 hour laser light source and air filter.
Full HD WUXGA resolution and 4K Enhancement Technology (1920 x 1200 x 2) mean you get crystal-clear, lifelike images. Built-in NFC function reduces the time to install and commission multiple projectors. And a clip-on optional external camera allows access to powerful automated tools including auto color calibration, screen matching of multiple projectors, tiling assist for edge blends, and the stacking assist function.
Specifications
| Supported aspect ratios | 4:3, 16:10, 16:9 |
|---|---|
| Projector brightness | 6000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Uniformity | 85% |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | 45° |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 6000 ANSI lumens |
| Colour light output | 6000 ANSI lumens |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Focus | Manual |
|---|---|
| Focal length range | 24 - 38.2 mm |
| Aperture range (F-F) | 1.7 - 2.3 |
| Zoom capability | Yes |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.45 - 2.32 |
| Horizontal lens shift range | 29 - 31% |
| Vertical lens shift range | 66 - 68% |
| Interchangeable lens | Yes |
| Full HD | Yes |
|---|---|
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 4096 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

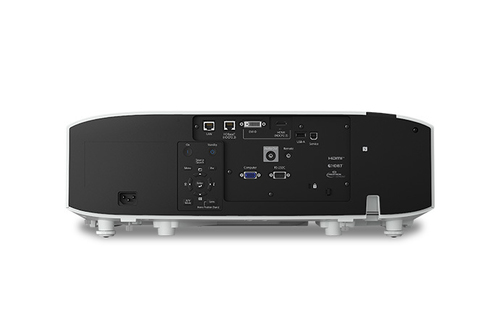

| HDMI connector type | Full-size |
|---|---|
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232C |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | Yes |
| Smart TV | No |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Card reader integrated | No |
|---|
| Noise level (economic mode) | 28 dB |
|---|---|
| HDCP | Yes |

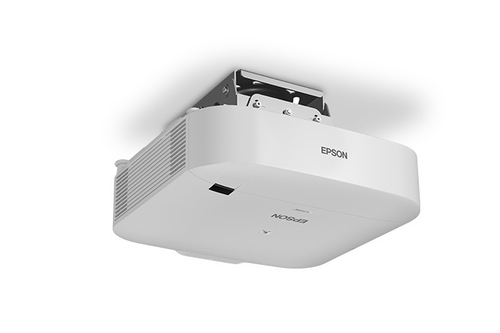

| Projection modes | Ceiling, Front, Rear |
| HDCP version | 2.3 |
| Test patterns | Yes |
| Noise level | 30 dB |
| Air filter | Yes |
| 4K Ultra HD upscaling | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Certification | RoHS |
| Built-in speaker(s) | No |
|---|
| Market positioning | Business |
|---|---|
| Product type | Large venue projector |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in display | No |
|---|
| Power source | AC |
|---|---|
| Power consumption (typical) | 384 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 321 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Width | 546.1 mm |
|---|---|
| Depth | 436.9 mm |
| Height | 165.1 mm |
| Weight | 15.4 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| Warranty card | Yes |
| Cable cover included | Yes |
| Packaging content | Cable cover, lens connector cap |
| Number of batteries supported | 2 |
| Special features | NFC |
|---|---|
| Weight (imperial) | 15.4 kg (34 lbs) |
| HDMI | Yes |
| RS-232C | Yes |
| USB port | Yes |
