Overview
Engage students with ultra bright, widescreen projection
Increase collaboration in the classroom with the PowerLite W49 projector. Designed to maximize engagement and enrich lesson plans, this powerful WXGA projector delivers eye-catching, widescreen displays with 3,800 lumens of color and white brightness. Featuring an integrated Moderator function, the PowerLite W49 allows up to 50 users to connect to the display and share content from laptops or mobile devices. A convenient, durable addition to any learning environment, it also offers a long lamp life up to 17,000 hours in ECO Mode and includes dual HDMI® ports for easy connectivity to a variety of high-definition AV devices.
Specifications
Projector
| Screen size compatibility | 838.2 - 8128 mm (33 - 320") |
|---|
| Projection distance | 0.91 - 9.07 m |
|---|
| Projector brightness | 3800 ANSI lumens |
|---|
| Projection technology | 3LCD |
|---|
| Projector native resolution | WXGA (1280x800) |
|---|
| Contrast ratio (typical) | 16000:1 |
|---|
| Native aspect ratio | 16:10 |
|---|
| Number of colours | 1.073 billion colours |
|---|
| Keystone correction, horizontal | ±30° |
|---|
| Keystone correction, vertical | ±30° |
|---|
| Matrix type | 3-panel (p-Si TFT active) |
|---|
| White light output | 3800 ANSI lumens |
|---|
| Colour light output | 3800 ANSI lumens |
|---|
Light source
| Light source type | Lamp |
|---|
| Service life of light source | 8000 h |
|---|
| Service life of light source (economic mode) | 17000 h |
|---|
| Lamp type | UHE |
|---|
| Lamp power | 210 W |
|---|
Lens system
| Focus | Manual |
|---|
| Focal length range | 16.9 - 20.28 mm |
|---|
| Aperture range (F-F) | 1.49 - 1.72 |
|---|
| Zoom ratio | 1.2:1 |
|---|
| Throw ratio | 1.30 - 1.56 |
|---|
Video
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
|---|
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 960, 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA) |
|---|

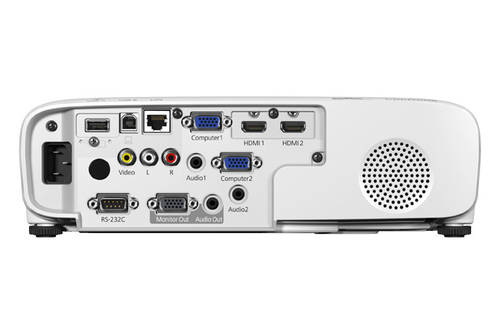

Ports & interfaces
| USB 2.0 Type-B ports quantity | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|
| Audio (L/R) in | 1 |
|---|
| Microphone in | Yes |
|---|
| PC Audio out | Yes |
|---|
| HDMI ports quantity | 2 |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Wi-Fi | Yes |
|---|
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
|---|
Features
| Noise level (economic mode) | 28 dB |
|---|
| Projection modes | Ceiling, Front, Rear |
|---|
| Noise level | 37 dB |
|---|
Multimedia
| Built-in speaker(s) | Yes |
|---|
| RMS rated power | 16 W |
|---|
| Number of built-in speakers | 1 |
|---|
Design
| Market positioning | Presentation |
|---|
| Product type | Standard throw projector |
|---|
| Product colour | White |
|---|
| Placement | Ceiling |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
Power
| Power source | AC |
|---|
| Power consumption (typical) | 345 W |
|---|
| Power consumption (standby) | 2 W |
|---|
| Power consumption (economy mode) | 235 W |
|---|
| AC input voltage | 100 – 240 |
|---|
| AC input frequency | 50 / 60 Hz |
|---|
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|
Weight & dimensions
| Width | 300 mm |
|---|
| Depth | 249 mm |
|---|
| Height | 91 mm |
|---|
| Weight | 2.7 kg |
|---|
Packaging content
| Remote control included | Yes |
|---|
| Batteries included | Yes |
|---|
| Cables included | AC, VGA |
|---|
| Packaging content | PowerLite W49 Projector
Power cord
Computer cable (VGA)
Projector remote control
Batteries
Software CD
Quick setup sheet
Warranty card |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
