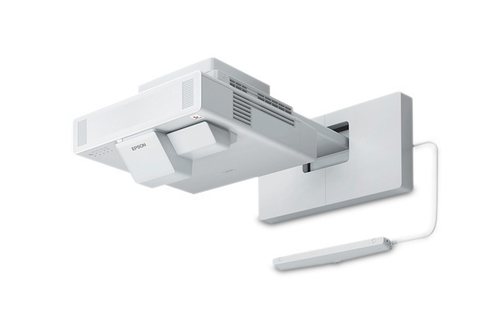

Epson BrightLink 1485Fi Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White
Part number V11H919520
BRIGHTLINK 1485FI 5000L LCD PROJ 1080P 2500000:1 WRLS 21.4LBS

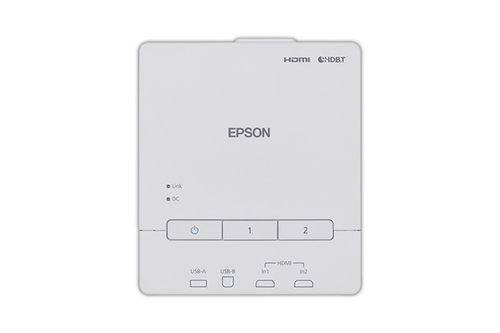

- Improved cable management — HDBaseT control pad supports, video, audio and interactive functions, reducing the number of cables and making installation a snap
- Built-in wireless — use free Epson iProjection™ software to connect, display and share content simultaneously to/from up to 50 connected devices
- Connect with Miracast® — supports software-free, peer-to-peer wireless connectivity
- SMART Learning Suite — includes 1-year subscription and support for SMART Notebook®, SMART amp™, SMART lab™, SMART Learning Suite Online and more
- Manufacturer
- Epson
- Part number
- V11H919520
- Term
- Per Ingram SKU 6ZM196
- Condition
- New
- Category
- Presentation Devices › Projectors
Overview
Bring collaboration to classrooms and meeting spaces with this interactive HD 1080p laser display
Create engaging and collaborative learning environments with the BrightLink 1485Fi 1080p 3LCD interactive laser display. Providing 5,000 lumens of color and white brightness and a virtually maintenance-free 20,000-hour laser light source with no lamps, this reliable, ultra bright interactive display supports easy reading, instruction and communication. The flexible 1485Fi projects large, 100", 16:9 and super-wide, 120", 16:6 images, offering up to 95 percent more interactive space vs. a 75" flat panel. Designed for easy collaboration, the 1485Fi supports PC-free whiteboarding, printing, emailing and more. Plus, it easily hosts other network-connected BrightLink projectors, allowing up to eight users to work on a single interactive canvas from multiple locations. Now with automatic image adjustment, simplified calibration and a single-cable, HDBaseT control pad, installation has never been easier.
Specifications
| Supported aspect ratios | 16:6, 4:3, 16:10, 16:9, 21:9 |
|---|---|
| Screen size compatibility | 1651 - 2540 mm (65 - 100") |
| Projector brightness | 5000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Number of colours | 1.073 billion colours |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Matrix type | 3-panel (p-Si TFT active) |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Focus | Manual |
|---|---|
| Fixed focal length | 3.9 mm |
| Zoom capability | Yes |
| Throw ratio | 16:9) 0.27 - 0.37, (4:3) 0.37 - 0.50, (16:10) 0.30 - 0.42 |
| Full HD | Yes |
|---|---|
| 3D | No |
| Supported video modes | 1080p |

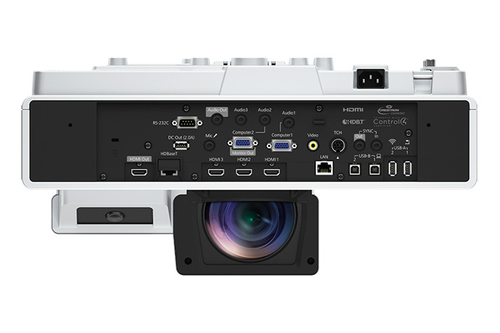

| HDMI connector type | Full-size |
|---|---|
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 3 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| PC Audio in | Yes |
| PC Audio out | Yes |
| PC in (D-Sub) | Yes |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 4 |
| Composite video in | 1 |
| DVI port | No |
| Smart TV | No |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Card reader integrated | No |
|---|
| Noise level (economic mode) | 27 dB |
|---|---|
| Noise level | 36 dB |
| Password protection | Yes |
| Built-in speaker(s) | Yes |
|---|---|
| RMS rated power | 16 W |
| Number of built-in speakers | 2 |
| Market positioning | Presentation |
|---|---|
| Product type | Ultra short throw projector |
| Product colour | White |
| Placement | Ceiling, Wall |
| Cable lock slot | Yes |
| Built-in display | No |
|---|
| Power source | AC |
|---|---|
| Power consumption (typical) | 381 W |
| Power consumption (standby) | 2 W |
| Power consumption (economy mode) | 270 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 459.7 mm |
|---|---|
| Depth | 363.2 mm |
| Height | 210.8 mm |
| Weight | 9.7 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Cables included | AC, USB |
