Epson

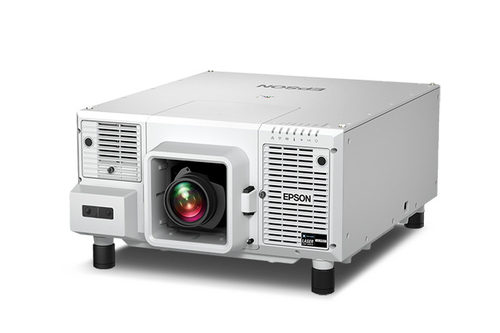

Epson L20002UNL Large venue projector 20000 ANSI lumens 3LCD WUXGA (1920x1200) White
Part number V11H833920
PRO L20002UNL WUXGA PROJECTOR WHITE NO LENS
- Designed for demanding environments
- Dynamic projection capabilities
- Bold, vibrant images
- Mechanical shutter
- Frame interpolation
- Wide lens shift
- Manufacturer
- Epson
- Part number
- V11H833920
- Condition
- New
- Category
- Presentation Devices › Projectors
- 1GPA category
- Hardware
Overview
Ultra bright, vivid color
20,000 lumens color/white brightness, advanced 3-chip, 3CLD technology
Exceptional widescreen display
Full HD WUXGA (1920 x 1200) resolution; accepts 4K content and provides 2.3 million pixels on screen
Solid-state laser light source
with electrostatic air filter for up to 20,000 hours of virtually maintenance-free operation
Powerful
outstanding brightness from a remarkably compact large-venue projector
Advanced connectivity
two interface slots accommodate a wide range of inputs
Specifications
| Supported aspect ratios | 4:3, 16:10, 16:9 |
|---|---|
| Projector brightness | 20000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | - 30 - 30° |
| Keystone correction, vertical | - 44 - 44° |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 20000 ANSI lumens |
| Colour light output | 20000 ANSI lumens |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Focal length range | 36 - 57.4 mm |
|---|---|
| Aperture range (F-F) | 1.8 - 2.35 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.57 - 2.56 |
| Horizontal lens shift range | -18 - 18% |
| Vertical lens shift range | -60 - 60% |
| Lens position memory | 10 |
| Full HD | Yes |
|---|---|
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2560p |
| DisplayPorts quantity | 2 |
|---|---|
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| PC in (D-Sub) | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| BNC input ports | 1 |
| DVI port | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Noise level (economic mode) | 38 dB |
|---|---|
| HDCP | Yes |
| Projection modes | Ceiling, Front, Rear |
| Noise level | 45 dB |
| Market positioning | Business |
|---|---|
| Product type | Large venue projector |
| Product colour | White |
| Placement | Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Power source | AC |
|---|---|
| Power consumption (typical) | 1860 W |
| Power consumption (standby) | 2 W |
| Power consumption (economy mode) | 1123 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Width | 620 mm |
|---|---|
| Depth | 358.5 mm |
| Height | 790 mm |
| Weight | 49.6 kg |
| Remote control included | Yes |
|---|---|
| Remote control type | Wired |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
