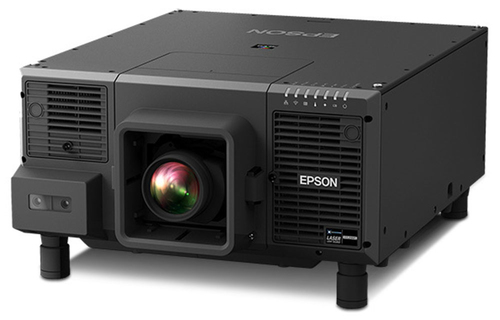

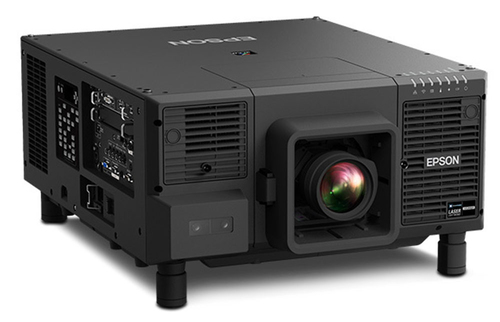

Epson PRO-L20000UNL Large venue projector 20000 ANSI lumens 3LCD WUXGA (1920x1200) Black
Part number V11H833820
PRO L20000UNL WUXGA PROJECTOR BLACK NO LENS
- Designed for demanding environments
- Dynamic projection capabilities
- Bold, vibrant images
- Mechanical shutter
- Frame interpolation
- Wide lens shift
- Manufacturer
- Epson
- Part number
- V11H833820
- Condition
- New
- Category
- Presentation Devices › Projectors
- 1GPA category
- Hardware
Overview
Premium large-venue WUXGA laser projector with 20,000 lumens.
The Pro L20000UNL combines a laser light source and 3-chip, 3LCD technology for powerful, lifelike images, delivering outstanding brightness in a remarkably compact form factor. A premium large-venue projector, it features Full HD WUXGA resolution and 20,000 lumens of color/white brightness1 for ultra bright, vivid color. Its laser light engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours2. With two interface slots designed to accommodate a wide range of inputs, the Pro L20000UNL provides the ultimate in connectivity. And, it supports optional lenses (sold separately), including a zero-offset ultra short-throw lens
Ultra bright, vivid color
20,000 lumens color/white brightness1; advanced 3-chip, 3CLD technology
Exceptional widescreen display
Full HD WUXGA (1920 x 1200) resolution; accepts 4K content and provides 2.3 million pixels on screen
Solid-state laser light source
with electrostatic air filter for up to 20,000 hours of virtually maintenance-free operation2
Wide range of optional lenses (sold separately)
including a zero-offset ultra short-throw lens
Powerful
outstanding brightness from a remarkably compact large-venue projector
Advanced connectivity
two interface slots accommodate a wide range of inputs
Specifications
| Supported aspect ratios | 4:3, 16:9 |
|---|---|
| Smart projector | No |
| Projector brightness | 20000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Uniformity | 90% |
| White light output | 20000 ANSI lumens |
| Colour light output | 20000 ANSI lumens |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Focus | Manual |
|---|---|
| Focal length range | 36.0 – 57.4 |
| Aperture range (F-F) | 1.8 - 2.35 |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.57 – 2.56 |
| Horizontal lens shift range | -18 - 18% |
| Vertical lens shift range | -60 - 60% |
| Full HD | Yes |
|---|---|
| 3D | No |
| Video colour modes | BT.709 |
| DisplayPorts quantity | 2 |
|---|---|
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| BNC input ports | 1 |
| DVI port | Yes |
| Smart TV | No |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Card reader integrated | No |
|---|
| Interactive | No |
|---|---|
| HDCP | Yes |
| Noise level | 45 dB |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Built-in speaker(s) | No |
|---|
| Market positioning | Presentation |
|---|---|
| Product type | Large venue projector |
| Product colour | Black |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in display | No |
|---|
| Power source | AC |
|---|---|
| Power consumption (typical) | 1860 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 1123 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Width | 620 mm |
|---|---|
| Depth | 790 mm |
| Height | 358.5 mm |
| Weight | 49.6 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | RoHS |
