Products › Presentation Devices

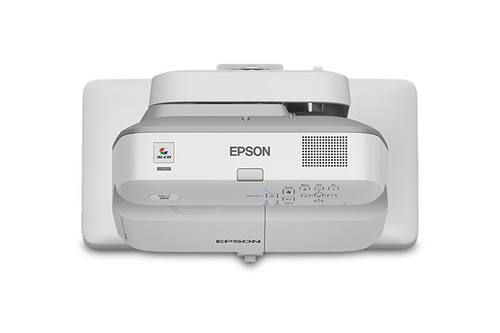

Epson PowerLite 685W Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White
Part number V11H744520
POWERLITE 685W LCD PROJ 3500L WXGA 14000:1 HDMI 12.6 LBS
- Education Ultra short throw projector Grey, White
- 3LCD 3500 ANSI lumens
- Lamp 5000 h
- WXGA (1280x800) 16:10
- Screen size compatibility: 1524 - 2540 mm (60 - 100") Number of colours: 1.073 billion colours
- Focus: Manual Zoom capability
- Ethernet LAN
- Built-in speaker(s) 16 W
- AC 373 W
- Manufacturer
- Epson
- Part number
- V11H744520
- Term
- Per Ingram SKU 7Y8468
- Condition
- New
- Category
- Presentation Devices › Projectors
Overview
The ultimate ultra short-throw presentation display for BYOD classrooms.
Take classroom collaboration to another level with the PowerLite 685W widescreen ultra short-throw presentation display. Designed for today’s BYOD classroom, this WXGA performer displays 100" images from just 11" away for optimal visibility. Offering 3x Higher Color Brightness than competitive models, Epson® 3LCD projectors and displays ensure bright, vivid images. Delivering 3,500 lumens of color and white brightness, the 685W ensures stimulating presentations. It also features wireless functionality (module sold separately) and advanced connectivity, so teachers can share content from multiple devices, including Chromebooks — up to four at once with Moderator software. Plus, its lamp lasts up to 10,000 hours in ECO Mode.
Specifications
| Screen size compatibility | 1524 - 2540 mm (60 - 100") |
|---|---|
| Projection distance | 0.34 - 0.6 m |
| Contrast ratio (dynamic) | 14000:1 |
| Projector brightness | 3500 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Native aspect ratio | 16:10 |
| Number of colours | 1.073 billion colours |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 3500 ANSI lumens |
| Colour light output | 3500 ANSI lumens |
| Light source type | Lamp |
|---|---|
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHE |
| Lamp power | 250 W |
| Focus | Manual |
|---|---|
| Fixed focal length | 3.7 mm |
| F-number (relative aperture) | 1.6 |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Digital zoom | 1.35x |
| Throw ratio | 0.28 - 0.37:1 |
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
|---|---|
| Full HD | No |

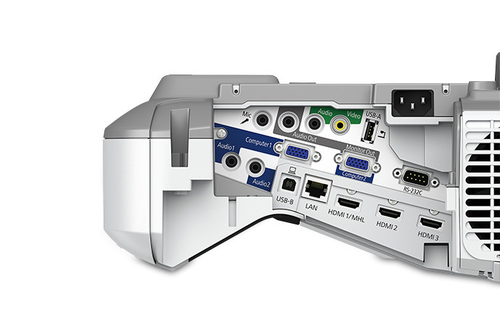

| USB 2.0 ports quantity | 2 |
|---|---|
| Audio (L/R) in | 3 |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| DVI port | No |
| Mobile High-Definition Link (MHL) | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Noise level (economic mode) | 29 dB |
|---|---|
| Noise level | 35 dB |
| Password protection | Yes |
| Built-in speaker(s) | Yes |
|---|---|
| RMS rated power | 16 W |
| Number of built-in speakers | 1 |
| Market positioning | Education |
|---|---|
| Product type | Ultra short throw projector |
| Product colour | Grey, White |
| Placement | Ceiling, Desktop, Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Power source | AC |
|---|---|
| Power consumption (typical) | 373 W |
| Power consumption (standby) | 2.2 W |
| Power consumption (economy mode) | 324 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 5 - 40 °C |
|---|
| Width | 368 mm |
|---|---|
| Depth | 401 mm |
| Height | 188 mm |
| Weight | 5.71 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Compliance certificates | RoHS |
|---|
| RS-232 ports | 1 |
|---|---|
| RS-232C | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
