Overview
This design changes everything

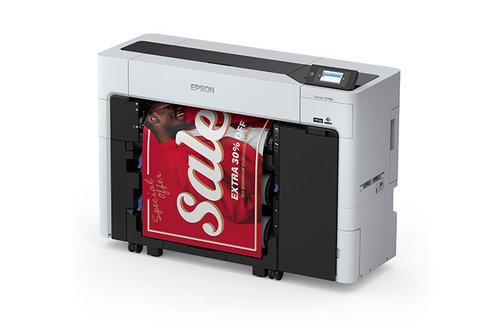

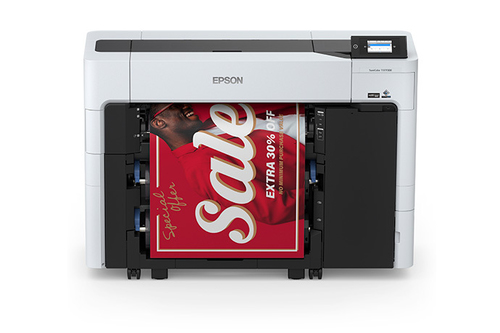

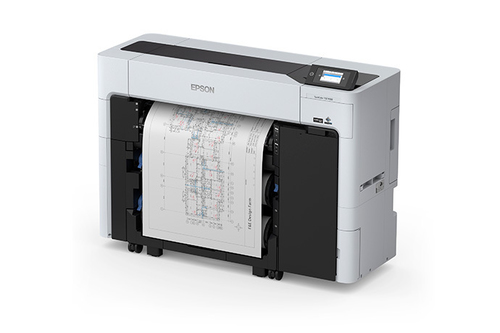

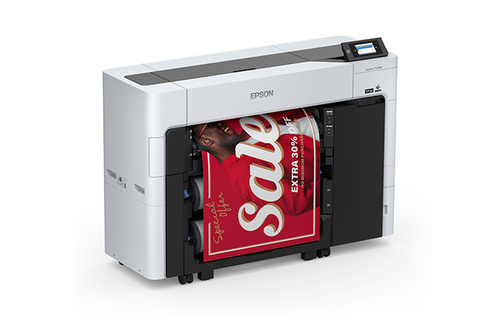

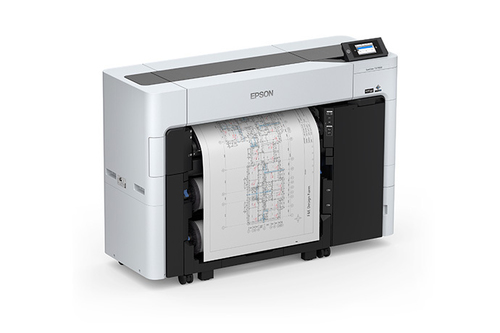

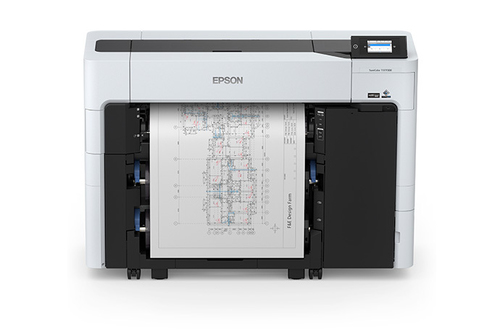

Epson delivers a first-of-its-kind design that shatters expectations and redefines capability, versatility and efficiency for its class: the SureColor® T3770DE. With a compact footprint and all-front operation, the T3770DE fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, producing technical drawings at production-class speeds with A1/D-size prints in as little as 16 seconds1. Its innovative six-ink set with dedicated Red Ink opens the door to an extraordinary color gamut for a production printer as well as rich red branding colors. And simple, carefree operation combined with new levels of media flexibility helps users do more using less space—all with a low total cost of ownership (TCO). Add it all up, and this is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.
Specifications
Printing
| Print technology | Inkjet |
|---|
| Colour | Yes |
|---|
| Maximum resolution | 2400 x 1200 DPI |
|---|
| Page description languages | ESC P, HP-GL/2, HP-RTL |
|---|
| Printing colours | Cyan, Magenta, Matte black, Photo black, Red, Yellow |
Paper handling
| Maximum print size | A1 (594 x 841 mm) |
|---|
| Paper tray media types | Roll |
|---|
| Maximum roll length | 90.83 m |
|---|
| Maximum roll width | 61 cm |
Ports & interfaces
| Wi-Fi | Yes |
|---|
| Ethernet LAN | Yes |
|---|
| USB port | Yes |
|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
Performance
| Product colour | Black, White |
|---|
| Built-in display | Yes |
|---|
| Display | LCD |
|---|
| Display diagonal | 10.9 cm (4.3") |
|---|
| Control type | Touch |
|---|
| Internal storage capacity | 4 GB |
Power
| Power consumption (typical) | 75 W |
|---|
| Power consumption (off) | 0.3 W |
|---|
| Power consumption (sleep) | 2 W |
|---|
| AC input voltage | 110 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
Operational conditions
| Operating temperature (T-T) | 10 - 35 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80% |
|---|
| Storage temperature (T-T) | -20 - 40 °C |
|---|
| Storage relative humidity (H-H) | 5 - 85% |
System requirements
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
