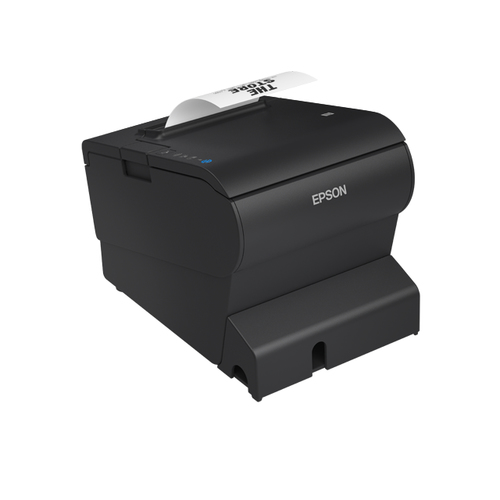

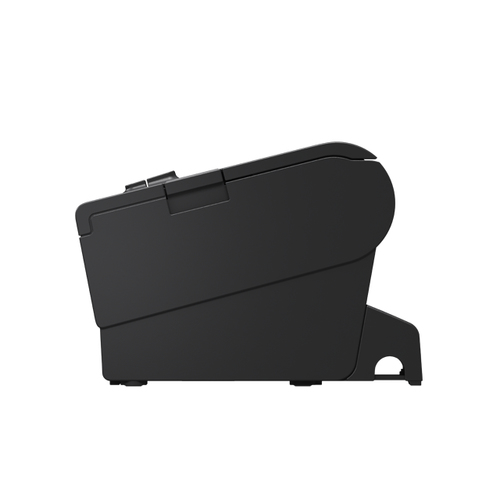

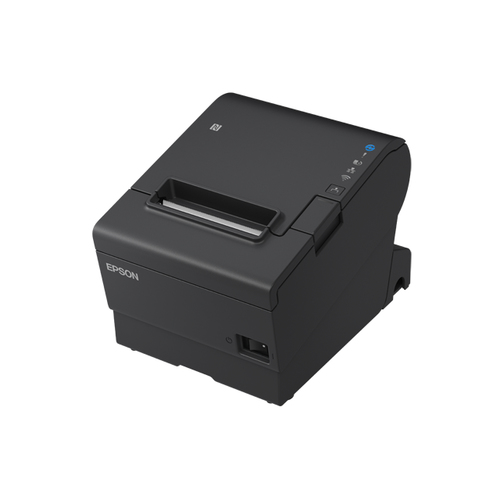

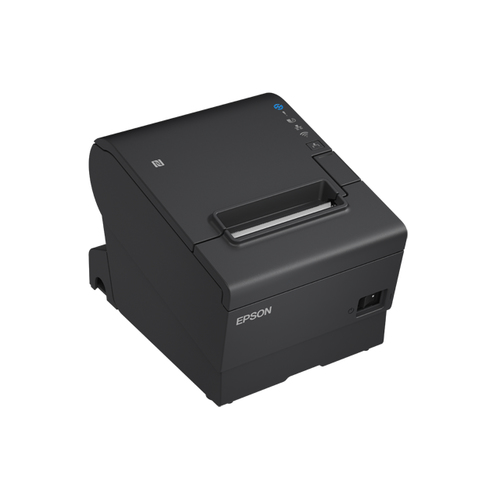

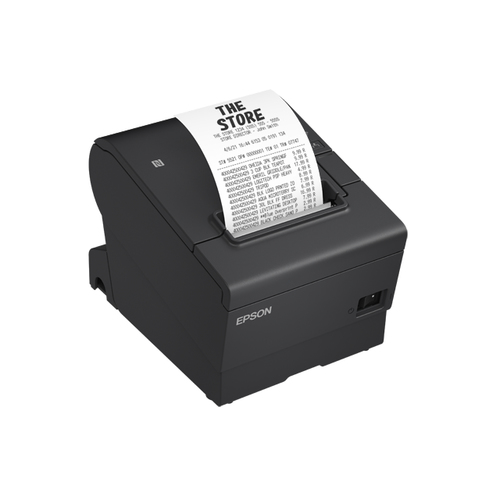

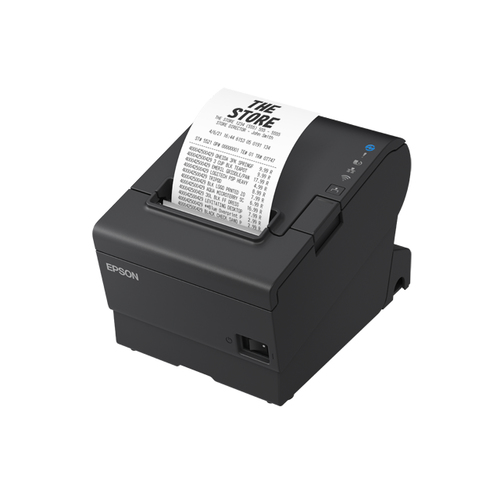

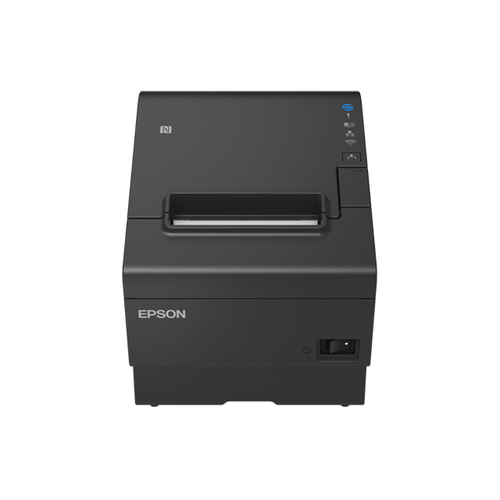

Epson OmniLink TM-T88VII 180 x 180 DPI Wired Thermal POS printer
Part number C31CJ57052
TM-T88VII-052.USB+ETH PS AND AC EBCK
- Thermal POS printer
- 180 x 180 DPI
- Connectivity technology: Wired
- USB port Ethernet LAN
- Built-in barcodes
- Black
- 1.7 kg
- Manufacturer
- Epson
- Part number
- C31CJ57052
- Condition
- New
- Category
- Data Capture / Point of Sale › Pos Printers
- 1GPA category
- Hardware
Specifications
| Maximum resolution | 180 x 180 DPI |
|---|---|
| Print speed | 500 mm/sec |
| Character size | 1.41 x 3.39 mm |
| Printing characters | Text, Graphic, Barcode, 2D barcode |
| Character sets | ANK |
| Print technology | Thermal |
| Type | POS printer |
| Printing media thickness | 48 - 80 µm |
|---|---|
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 80 mm |
| Media thickness | 48 - 80 mm |
| USB port | Yes |
|---|---|
| USB connector | USB Type-A / USB Type-B |
| Serial interface | No |
| Connectivity technology | Wired |
| Near Field Communication (NFC) | Yes |
| Optional connectivity | Wireless LAN |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, PDF417, UPC-A, UPC-E |
|---|---|
| Sound pressure level (printing) | 52 dB |
| Mean time between failures (MTBF) | 360000 h |
| Autocutter durability | 3 million cuts |
| Paper save function | Yes |
| Print head life | 200 km |
| Mounting position | Horizontal/Vertical |
| Wall mountable | Yes |
| Built-in sensors details | Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor |
| Certification | CE |
| Product colour | Black |
|---|
| Power source type | DC |
|---|---|
| Power consumption (printing) | 28.6 W |
| AC input voltage | 24 V |
| Power consumption | 27900 mA |
| Power consumption (standby) | 1400 mA |
| Power consumption (standby) | 1.4 W |
| Operating temperature (T-T) | 5 - 45 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Pre-installed software | Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print |
|---|
| Width | 145 mm |
|---|---|
| Depth | 195 mm |
| Height | 148 mm |
| Weight | 1.7 kg |
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 195 mm |
| Package depth | 235 mm |
| Package height | 260 mm |
| Package weight | 2.7 kg |
| Column capacity | 42/56 |
|---|
| Pallet weight (UK) | 0 g |
|---|---|
| Products per pallet | 112 pc(s) |
| Pallet gross weight | 0 g |
| Products per pallet (UK) | 168 pc(s) |
| Changeable interface | Y |
|---|---|
| Lifetime | 20000000 lines |
| Buffer size | 4 KB |
|---|---|
| Mean cycles between failures (MCBF) | 70000000 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
