Overview

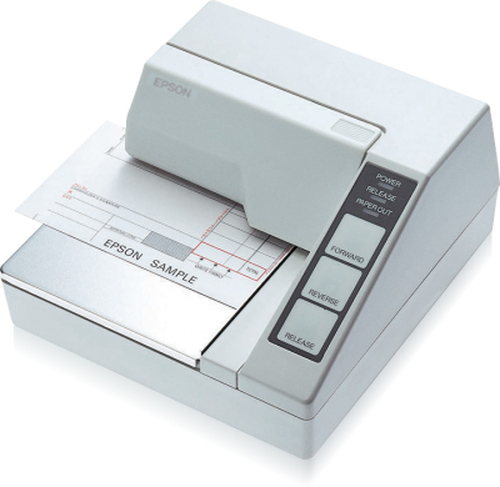

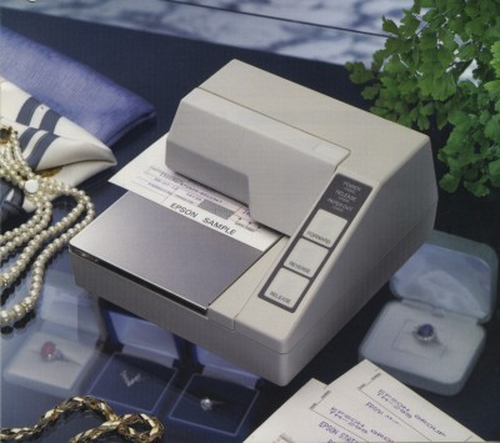

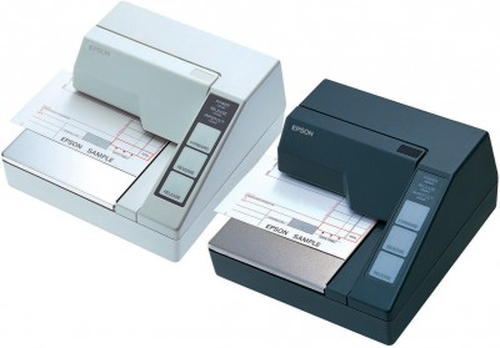

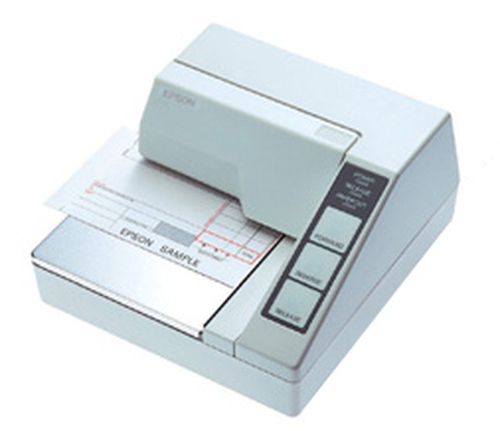

Authorisation slip printer
SLIP IMPACT PACKAGED PRINTER; Serial; Epson Cool White (ECW); no Power Supply
Specifications
Printing
| Colour | No |
|---|
| Character density | 16.2 cpi |
|---|
Paper handling
| Printing media thickness | 0.09/0.35 µm |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Interface | RS-232, Drawer kick-out |
|---|
Features
| Sound pressure level (printing) | 65 dB |
|---|
| Mean time between failures (MTBF) | 180000 h |
|---|
| Country of origin | Japan |
|---|
| Maximum number of copies | 2 copies |
|---|
| Ribbon life | 1.5 million characters |
|---|
| Safety | UL, CSA C22.2 No. 950 |
|---|
Design
| Product colour | White |
|---|
Operational conditions
| Operating temperature (T-T) | 5 - 40 °C |
|---|
| Storage temperature (T-T) | -10 - 50 °C |
|---|
| Operating relative humidity (H-H) | 30 - 85% |
|---|
| Storage relative humidity (H-H) | 30 - 90% |
|---|
Weight & dimensions
| Width | 180 mm |
|---|
| Depth | 191 mm |
|---|
| Height | 102 mm |
|---|
| Weight | 1.6 kg |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 235 mm |
|---|
| Package depth | 270 mm |
|---|
| Package height | 185 mm |
|---|
| Package weight | 1.84 kg |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
| Products per master (outer) case | 4 pc(s) |
|---|
| Master (outer) case width | 300 mm |
|---|
| Master (outer) case length | 485 mm |
|---|
| Master (outer) case height | 405 mm |
|---|
| Products per pallet | 120 pc(s) |
|---|
| Products per pallet layer | 24 pc(s) |
|---|
| Pallet gross width | 120 cm |
|---|
| Pallet gross height | 100 cm |
|---|
| Products per pallet (UK) | 160 pc(s) |
|---|
| Products per pallet layer (UK) | 32 pc(s) |
|---|
| Pallet length (UK) | 120 cm |
|---|
| Pallet height (UK) | 137 cm |
|---|
Technical details
| Box contents | Main unit, Ribbon, User manual |
|---|
Other features
| Dimensions (WxDxH) | 180 x 190.5 x 101.5 mm |
|---|
| Electromagnetic compatibility | VCCI class A, FCC class A, CE marking |
|---|
