Products › Printers & Office Equipment

Epson

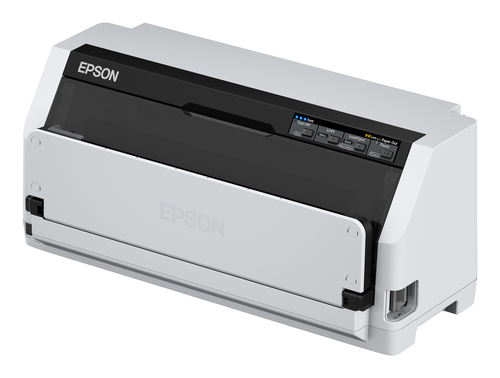

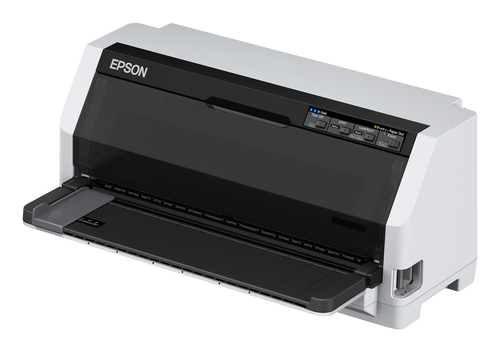

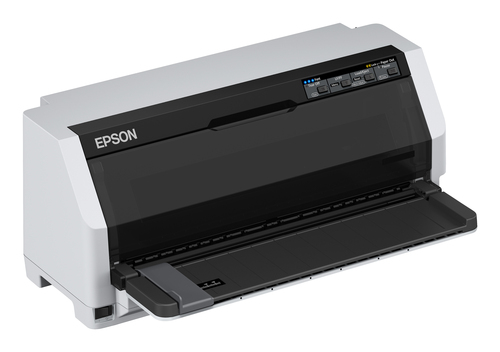

Epson LQ-780N dot matrix printer 360 x 180 DPI 487 cps

Part number C11CJ81202

EPSON LQ-780N PRINTER 24 PIN 80 COL NETWORKUPS

  • High speed Impressive print speed of 487 cps (10cpi) with 1+6 copies
  • Quality The 106 column capacity with 24 pins means greater quality
  • Reliable Combined power of print head life and MTBF of 20,000 hours
  • Modern design The black and white casing blends comfortably into any work environment
Manufacturer
Epson
Part number
C11CJ81202
Condition
New
Category
Printers & Office Equipment › Printers-Home/Office
1GPA category
Hardware

Overview

Fast and reliable dot matrix printing with the Epson LQ-780N. Its robust nature and modern design fits comfortably into any environment.

Designed with productivity in mind, the LQ-780N is an ultra-reliable dot matrix printer that offers an impressive ribbon yield. It is fast and compact with a robust build. Its modern design allows effortless integration into any work environment, be it an office or a warehouse.

Fast printing:

Print faster and more productively. The LQ-780N prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.

High ribbon yield:

In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-780N as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership.

Dependable:

Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, and automatic paper thickness adjustment makes the LQ-780N intuitive to use. This results in greater productivity and less maintenance from down time - essential when producing large amounts of documents and data.

Smart design:

This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.

Specifications

Printing
Maximum resolution360 x 180 DPI
Maximum printing width (columns)106
ColourNo
Maximum print speed487 cps
Maximum print speed (draft)487 cps
Maximum print speed (LQ)366 cps
Maximum number of copies6 copies
Built-in barcodesCODABAR (NW-7), Code 128 (A/B/C), Code 39, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Number of barcode fonts8
Number of bitmap fonts11
Bitmap fontsCourier, Draft, Prestige, Roman
Number of scalable fonts4
Scalable fontsRoman, Roman T, Sans Serif, Sans Serif H
Character setsPC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO 8859-15, Roman 8, Italic
Number of characters15
Paper handling
Paper tray media typesEnvelopes
Continuous paper thickness range0.12 - 0.49 mm
Multi-part paper thickness range0.12 - 0.49 mm
Single sheet thickness range0.065 - 0.15 mm
Features
Product colourBlack, White
Sound pressure level (printing)59 dB
Country of originIndonesia
Ports & interfaces

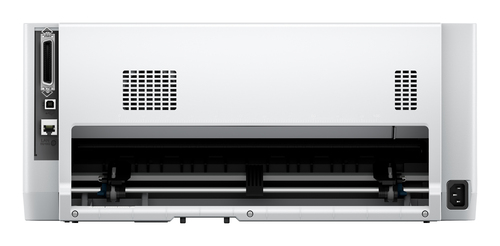

Standard interfacesEthernet, Parallel, USB
Endurance
Print head24-pin
Print head life400 million characters
Mean time between failures (MTBF)35000 h
Power
Power consumption (typical)46 W
Power consumption (standby)8.3 W
AC input voltage198-264 V
AC input frequency50 - 60 Hz
Operational conditions
Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)10 - 80%
System requirements
Windows operating systems supportedWindows 11 x64
Server operating systems supportedWindows Server 2003, Windows Server 2022
Weight & dimensions
Width480 mm
Depth301 mm
Height211 mm
Weight6.7 kg
Packaging data
Quantity per pack1 pc(s)
Package width325 mm
Package depth590 mm
Package height350 mm
Package weight8.31 kg
Other features
Print technologyDot matrix
Needles24
Logistics data
Products per pallet24 pc(s)
Pallet gross weight0 g
Products per pallet (UK)36 pc(s)
Pallet weight (UK)0 g
Harmonized System (HS) code84433210

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
