Epson DS-730N Sheet-fed scanner 600 x 600 DPI A4 Black, Grey
Part number B11B259201
EPSON DS-730N DOCUMENT SCANNER
- Scanner type: Sheet-fed scanner 600 x 600 DPI
- Colour scanning Duplex scanning
- LCD Built-in display
- A4 Scanning media types supported: Business Card, Plastic Card, Post Card(JPN)
- Maximum scan size: 215.9 x 6096 mm Sensor type: CIS
- USB port Ethernet LAN
- Power supply type: AC 14 W
- Manufacturer
- Epson
- Part number
- B11B259201
- Condition
- New
- Category
- Imaging Devices › Scanners
- 1GPA category
- Hardware
Overview
Connect your business with this affordable and highly efficient standalone network scanner. It's the intelligent choice for business document management, offering the ability to scan to separate locations – at the touch of a button, allowing you to capture, convert and distribute scanned information within your organisation.
Shared

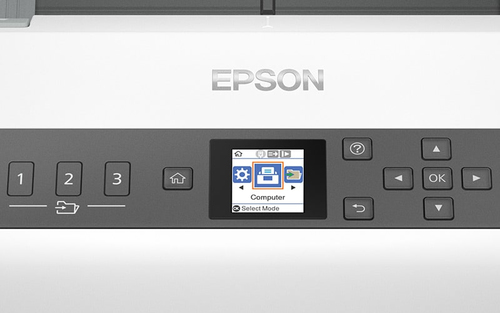

Scan to email, folder, FTP, SFTP, cloud services and Microsoft applications at the touch of a button¹. The control panel with built in 1.44’’ colour LCD display and three individual job buttons enables you to choose the correct job and send documents to the right destination without delay, making the digital files available across multiple departments.
High performance
With a high capacity 100 sheet ADF and scan speeds of up to 40ppm/80ipm, bulk jobs can be captured quickly and easily as a single file, with minimal user intervention.
Intelligent
Take control with a range of intelligent features, including ultra-sonic sensors and a paper protection function. Slow mode allows difficult media to be captured by reducing roller speed, without increasing file sizes. Double feed detection skip means difficult documents like envelopes and post-it notes can be processed rapidly.
Reliable
Paper protection, double feed and dirt detection warning ensure high quality digital images are captured carefully and precisely, from 27gsm to 413gsm. The Active Separation Roller System and on-board sensors help prevent document double-feeds and ensures every piece of paper is scanned accurately.
Specifications
| Maximum scan size | 215.9 x 6096 mm |
|---|---|
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 10 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 8 bit |
| ADF scan speed (b/w, A4) | 40 ppm |
| ADF scan speed (colour, A4) | 40 ppm |
| Black/white scanning colour modes | Monochrome |
| Scanner type | Sheet-fed scanner |
|---|---|
| Product colour | Black, Grey |
| Display | LCD |
| Display diagonal | 3.81 cm (1.5") |
| Colour display | Yes |
| Built-in display | Yes |
| Sensor type | CIS |
|---|---|
| Light source | ReadyScan LED |
| Scan file formats | JPEG, PDF, TIFF |
| Daily duty cycle (max) | 4500 pages |
| Scan to | E-mail, FTP, Network folder |
| Password protection | Yes |
| Ultrasonic sensor | Yes |
| Auto document feeder (ADF) input capacity | 100 sheets |
|---|
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
|---|---|
| Maximum ISO A-series paper size | A4 |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| Letter | Yes |
| Legal | Yes |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| USB port | Yes |
|---|---|
| USB version | 2.0 |
| USB connector type | USB Type-B |
| Ethernet LAN | Yes |
|---|---|
| IPv6 support | Yes |
| Power supply type | AC |
|---|---|
| Power consumption (typical) | 14 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.5 W |
| Width | 296 mm |
|---|---|
| Depth | 169 mm |
| Height | 167 mm |
| Weight | 3.6 kg |
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 270 mm |
| Package depth | 370 mm |
| Package height | 320 mm |
| Package weight | 4.93 kg |
| Cables included | AC |
|---|
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
| Output resolutions | 75, 100, 150, 200, 240, 300, 600, 1200 dpi |
|---|---|
| Image formats supported | BMP, JPEG, TIFF, PNG |
| Cabling technology | 10/100/1000Base-T(X) |
| Products per pallet | 48 pc(s) |
|---|---|
| Country of origin | Indonesia |
| Pallet gross weight | 0 g |
| Products per pallet (UK) | 60 pc(s) |
| Pallet weight (UK) | 0 g |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
