Epson

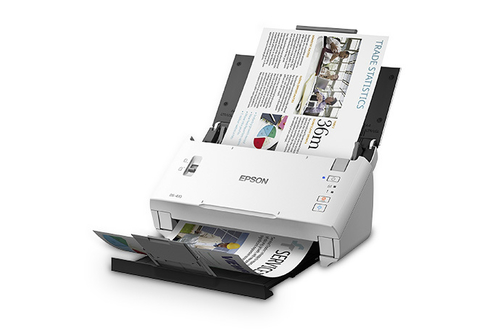

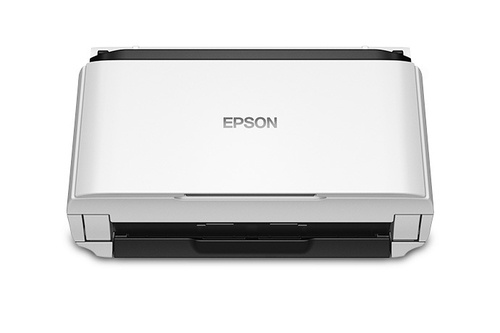

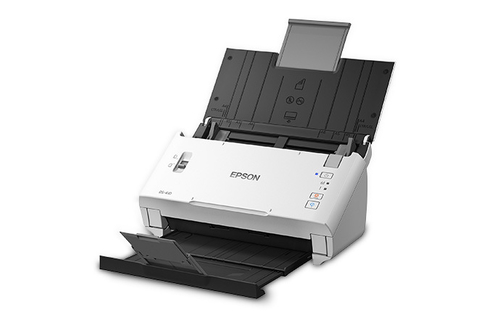

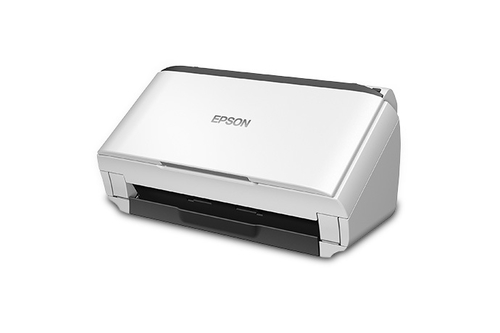

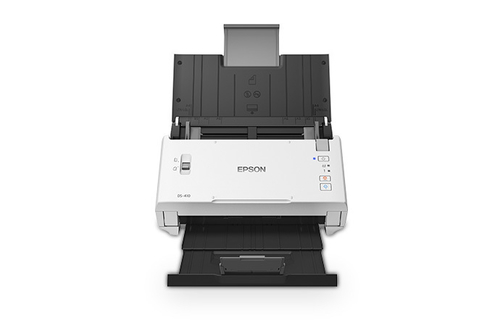

Epson B11B249201 scanner ADF + Sheet-fed scanner 600 x 600 DPI A3 White

Part number B11B249201

DS-410 SF CLR 600DPI 48BIT USB 2.0 LTR DOCUMENT SCANNER

Fast — high-quality scans up to 26 ppm/52 ipm; scans both sides in one pass
Unsurpassed compatibility — TWAIN and ISIS drivers included; connect to virtually any document management software
3-year limited warranty with world-class service and support — includes Advance Exchange with free Next-Business-Day replacement to minimize downtime
Reliable — Double-feed Detection and Paper Protection prevent misfeeds; peak daily duty cycle up to 3,000 sheets
Scan to online storage accounts — scan to Dropbox, Evernote, Google Drive, SharePoint and more
Scan to searchable PDFs — save scanned documents as PDF files; scan and edit documents and spreadsheets with OCR software included
Easily scan stacks of documents — 50-page Auto Document Feeder
Versatile paper handling capabilities — scan folded pages up to 11" x 17", rigid ID cards, stacks of business cards and single sheets
Up to 30 user-programmable jobs — Epson Document Capture software automates frequent tasks
Paper Protection — efficient paper feeding system that prevents damage to documents when stapled or skewed pages are detected

Manufacturer: Epson
Part number: B11B249201
Condition: New
Category: Imaging Devices › Scanners
1GPA category: Hardware

Overview

The affordable DS-410 document scanner brings speed and compatibility to busy workstations. Scanning up to 26 ppm/52 ipm, it powers through stacks of documents via its 50-page ADF. Built for seamless integration with virtually any document management software, it includes both ISIS and TWAIN drivers. And, it comes with an industry-leading 3-year limited warranty, with added support services to minimize downtime. The DS-410 also features Double-feed Detection and Paper Protection to prevent misfeeds, and a peak daily duty cycle up to 3,000 sheets. Users can scan documents, ID cards and more to online storage accounts, or create searchable PDFs.

Specifications

Scanning
Maximum scan size	215.9 x 914.4 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
Input greyscale depth	16 bit
Output greyscale depth	8 bit
Output monochrome depth	1 bit
ADF scan speed (b/w, A4)	26 ppm
Duplex ADF scan speed (b/w, A4)	52 ipm

Design
Scanner type	ADF + Sheet-fed scanner
Product colour	White
Built-in display	No

Performance
Sensor type	CMOS
Light source	RGB LED
Daily duty cycle (max)	3000 pages
Scan to	Cloud
Button functions	On
Scan drivers	ISIS, TWAIN

Input capacity
Auto document feeder (ADF) input capacity	50 sheets

Paper handling
Scanning media types supported	Envelopes, Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size	A3
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
ISO B-series sizes (B0...B9)	B4, B5, B6
Letter	Yes
Legal	Yes
Auto Document Feeder (ADF) media weight	50 - 210 g/m²
Minimum scan area (ADF)	53.34 x 73.66 mm

Ports & interfaces
USB port	Yes
USB version	2.0
Standard interfaces	USB 2.0

Network
Wi-Fi	No
Ethernet LAN	No

Power
Power supply type	AC
Power consumption (typical)	18 W
Power consumption (standby)	7 W
Power consumption (off)	0.4 W
AC input frequency	50 - 60 Hz
Sleep mode	Yes
Input voltage	100-240 V
Power consumption (sleep)	1.6 W

Weight & dimensions
Width	297.2 mm
Depth	152.4 mm
Height	154.9 mm
Weight	2.49 kg

System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.9 Mavericks

Operational conditions
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 80%

Logistics data
Country of origin	China

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
