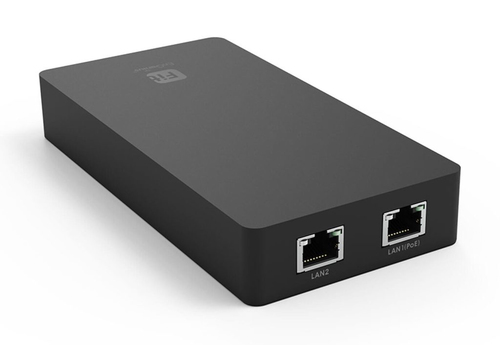

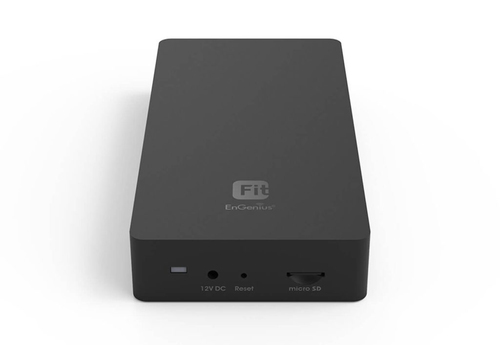

EnGenius Hardware controller for all FIT switches and APs
Part number FITCON100
ENGENIUS FITCONTROLLER IS A SECURE, AND EASY-TO-USE NETWORK MANAGEMENT CONTROLLE
Simply plug into PoE Ethernet switch. No additional download or training required
Fast deployment with quick-scan device registration & configuration
Network management for up to 100 EnGenius Fit APs and Switches
Hierarchy view to quickly structure customer sites and organize networks
Network health view to analyze networks and report potential issues Multi-tenant user login privileges
Device two-factor authentication to ensure only authorized devices are on the network
Support up to 50 networks
Built-in powerful Qualcomm Qual-Core CPU
Micro SD slot for extra back-up
802.3af or DC12/1A input power source
Manufacturer
EnGenius
Part number
FITCON100
Condition
New
Category
Network Devices › Wireless Networking
1GPA category
Hardware
Overview
EnGenius FitController is a simple, secure, and easy-to-use Wi-Fi solution for your small business. Our intuitive system makes it easy to manage your network. Plus, our advanced security features help keep your data safe, and your customers connected. For IT managers or admins at small businesses who need to manage access points and switches quickly and easily, FitController’s intuitive interface and simple plug-and-play integration securely provide efficient device management, while cloud accessibility allows remote management of multiple networks from a single portal without requiring a dedicated server. Admins can easily view detailed analytics from a single pane of glass as well as monitor and troubleshoot issues instantly.
Specifications
Design
Product colour
Black
LED indicators
Yes
Performance
Control display unit
No
Built-in processor
Yes
Processor manufacturer
ARM
Processor frequency
1800 MHz
Number of processors installed
1
Internal memory
2 MB
Internal memory type
DDR4
Flash memory
8000 MB
Network
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3af
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Management features
Reset button
Yes
Power
Input voltage
100-240 V
Output voltage
12 V
Weight & dimensions
Width
77.4 mm
Depth
174.2 mm
Height
43 mm
Weight
165 g
Packaging data
Package width
185 mm
Package depth
109 mm
Package height
47 mm
Package weight
295 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 90%
Logistics data
Master (outer) case net weight
5.9 kg
Harmonized System (HS) code
85176990
Master (outer) case width
236 mm
Master (outer) case length
496 mm
Master (outer) case height
222 mm
Master (outer) case gross weight
6.55 kg
Products per master (outer) case
20 pc(s)
