EnGenius

EnGenius Managed AP Outdoor Dual Band 11ax 574+1200Mbps 2T2R 2.5GbE PoE.at(+) 4x5dBi RP-SMA IP67

Part number EWS850-FIT

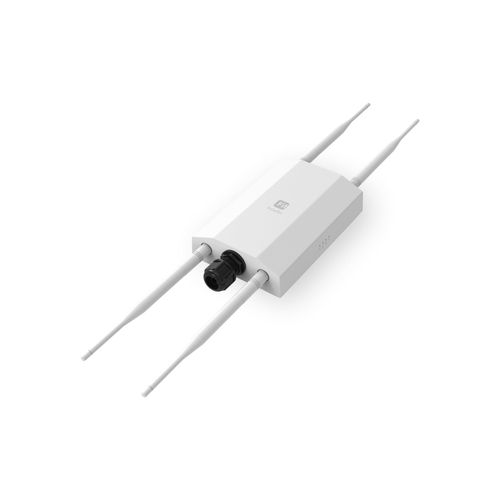

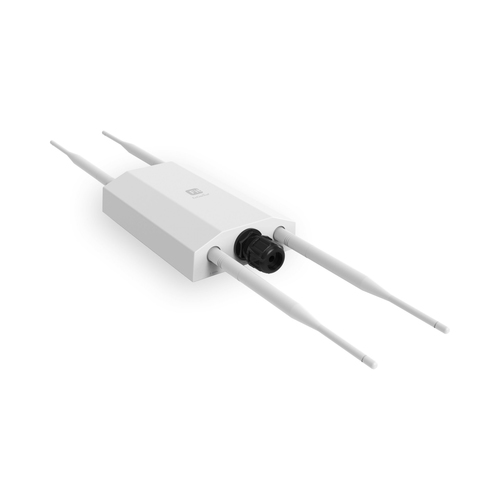

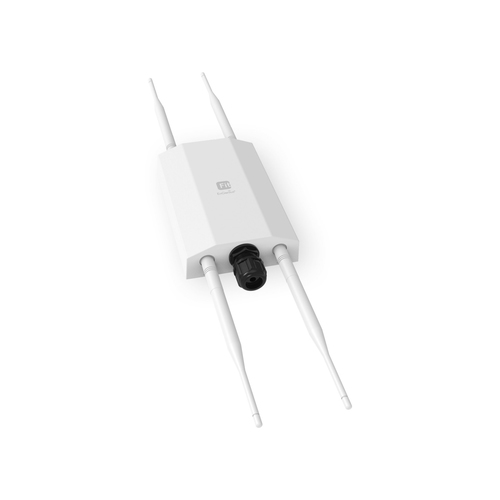

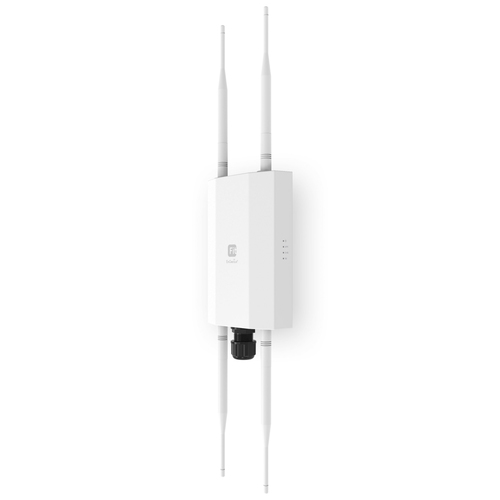

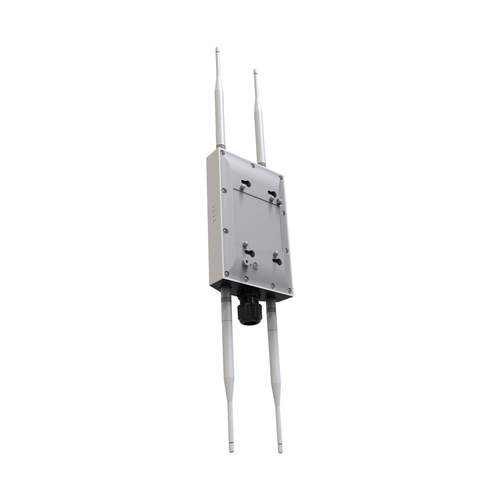

NEW ENGENIUS FIT MANAGED OUTDOOR WIRELESS ACCESS POINT EWS850-FIT/WI-FI 6 2X2 IP

Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 2x2 antenna
Supports up to 1,200 Mbps in 5-GHz frequency band & 574 Mbps in 2.4-GHz frequency band
IP67-Rated weatherproof & dustproof housing withstands harsh environments
2.5 GigE PoE+ compatible port for easy placement where power outlets are scarce
Select cloud or on-premises management options based on network architecture, administrative permissions
From anywhere cloud visibility and control
Setup in minutes with app-based step by step instructions
Quick-scan device register, remote monitoring and troubleshooting
Real-time system metrics, analytics and remote configurations
No access point licensing or subscription fees

Manufacturer: EnGenius
Part number: EWS850-FIT
Condition: New
Category: Network Devices › Wireless Networking
1GPA category: Hardware

Overview

The EnGenius Fit Managed EWS850-FIT, a Wi-Fi 6 (802.11ax) 2x2 IP67 dual-band outdoor wireless access point designed for small business environments and provides maximum speeds of 574 Mbps (2.4 GHz frequency) and 1,200 Mbps (5 GHz frequency). This IP67-rated weatherproof and ruggedized wireless AP can be deployed outdoors. Select cloud or on-premises management options based on network architecture, administrative permissions, and technical aptitude. Business-class features optimize network efficiency ensuring secure, reliable, and high performance while r

Specifications

Features
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1774 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	DSSS
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Quality of Service (QoS) support	Yes
BeamForming	Yes

Security
Security algorithms	SNMP, SNMPv2, SNMPv3, WPA2-AES, WPA2-Enterprise, WPA3-Enterprise, WPA3-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Hidden SSID, Multiple SSIDs
Number of SSID supported	8

Ports & interfaces
Ethernet LAN (RJ-45) ports	1

Power
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Active PoE
DC voltage range	48 - 54 V
Power consumption (max)	15.9 W

Design
Placement	Pole, Wall
Product colour	White
International Protection (IP) code	IP67
LED indicators	LAN, Power, WLAN

Antenna
Antenna type	External
Antenna direction type	Omni-directional
Antenna features	Detachable antenna
Antennas quantity	4
Antenna gain level (max)	5 dBi
Antenna connector type	SMA

Performance
Built-in processor	Yes
Processor model	ARM Cortex-A53
Processor frequency	1800 MHz

Certificates
Certification	FCC, CE, IC

Weight & dimensions
Width	124 mm
Depth	190 mm
Height	52.5 mm
Weight	700 g

Packaging data
Package width	284 mm
Package depth	144 mm
Package height	234 mm
Package weight	1.77 kg

Packaging content
Quantity per pack	1 pc(s)
PoE adapter included	Yes

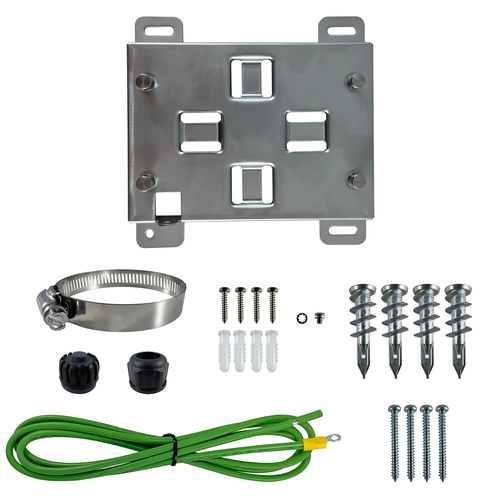

Mounting kit	Yes
Quick start guide	Yes
Antenna included	Yes

Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-40 - 80 °C

Logistics data
Harmonized System (HS) code	85176990
Master (outer) case width	450 mm
Master (outer) case length	490 mm
Master (outer) case height	310 mm
Master (outer) case gross weight	11.9 kg
Products per master (outer) case	6 pc(s)
