Overview

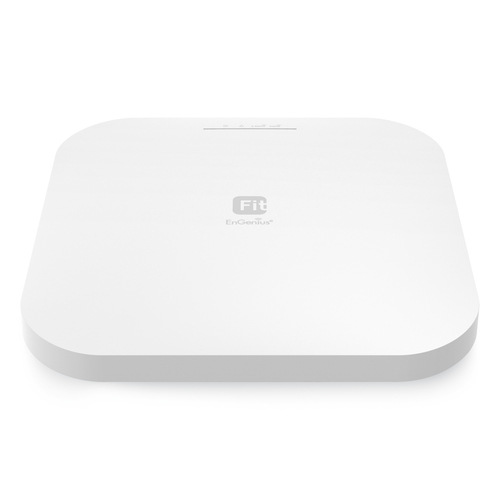

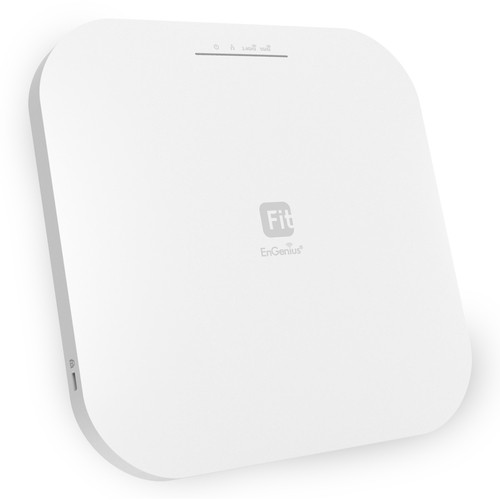

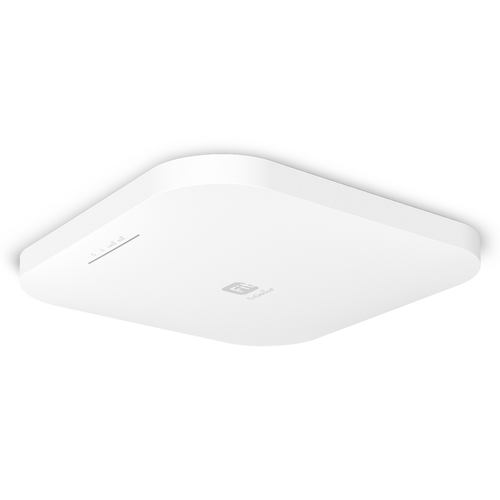

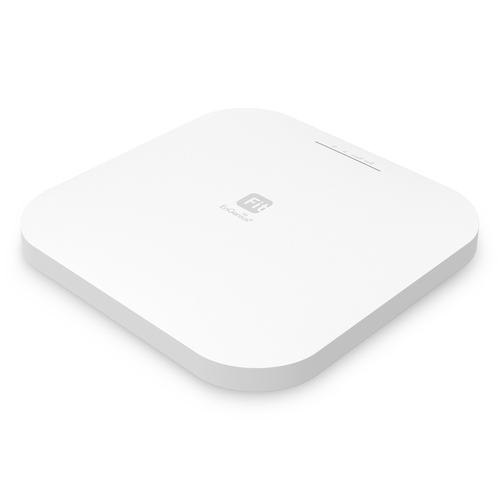

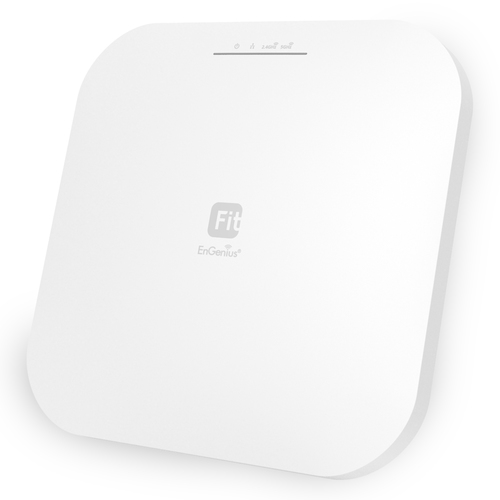

EnGenius Fit 802.11ax 4×4 Dual Band Managed Indoor Wireless Access Point
EnGenius Fit6 4x4 Lite Managed Indoor Wireless Access Point offers advanced 802.11ax technology, granting users incredibly speedy and efficient performance with a maximum theoretical speed of 1,148 Mbps on the 2.4GHz frequency and an incredible 2400Mbps on 5GHz frequency! Furthermore it's safeguarded by top-tier WPA3/WPA2PSK AES encryption protocols for unparalleled security.
Specifications
Features
| 2.4 GHz | Yes |
|---|
| 5 GHz | Yes |
|---|
| Maximum data transfer rate | 2400 Mbit/s |
|---|
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
|---|
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Networking standards | IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
|---|
| MIMO | Yes |
|---|
| MIMO type | Multi User MIMO |
|---|
| VLAN support | Yes |
|---|
| Quality of Service (QoS) support | Yes |
|---|
Security
| Security algorithms | WPA2-Enterprise, WPA3 |
|---|
| MAC address filtering | Yes |
|---|
| IGMP snooping | Yes |
|---|
Protocols
| Management protocols | SNTP |
|---|
Management features
| Web-based management | Yes |
|---|
| Switch type | Managed |
|---|

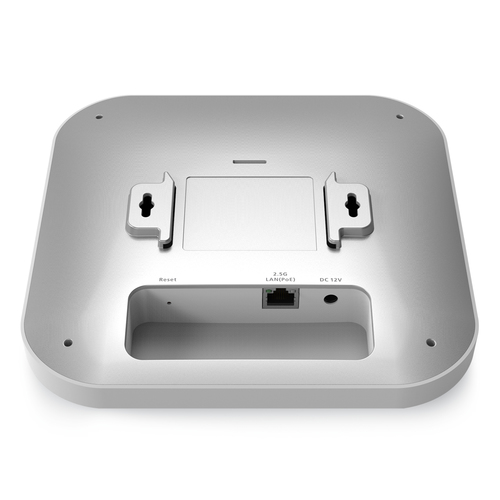

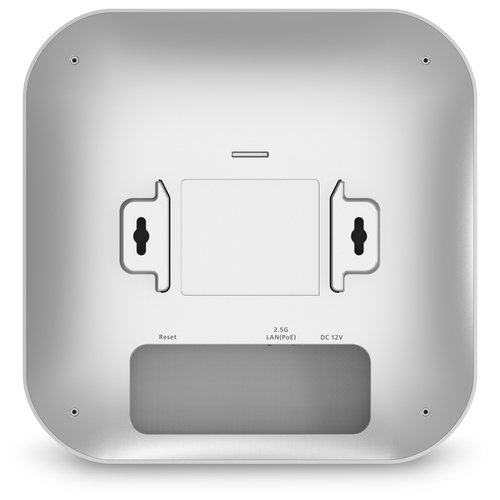

Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Power
| Power over Ethernet (PoE) | Yes |
|---|
| DC voltage range | 12 V |
|---|
| Input current | 2 A |
|---|
Design
| Product colour | Grey |
|---|
Antenna
| Antenna type | Internal |
|---|
| Antenna direction type | Omni-directional |
|---|
Weight & dimensions
| Width | 205.7 mm |
|---|
| Depth | 205.7 mm |
|---|
| Height | 33.2 mm |
|---|
| Weight | 570 g |
|---|
Packaging data
| Package width | 247 mm |
|---|
| Package depth | 87 mm |
|---|
| Package height | 247 mm |
|---|
| Package weight | 870 g |
|---|
Operational conditions
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
| Master (outer) case width | 450 mm |
|---|
| Master (outer) case length | 500 mm |
|---|
| Master (outer) case height | 280 mm |
|---|
| Master (outer) case gross weight | 12.2 kg |
|---|
| Products per master (outer) case | 10 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
