EnGenius

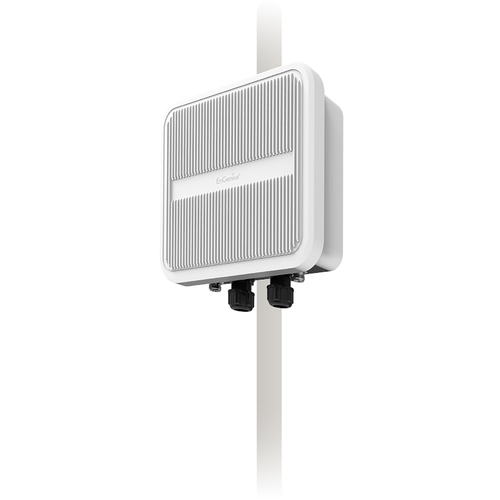

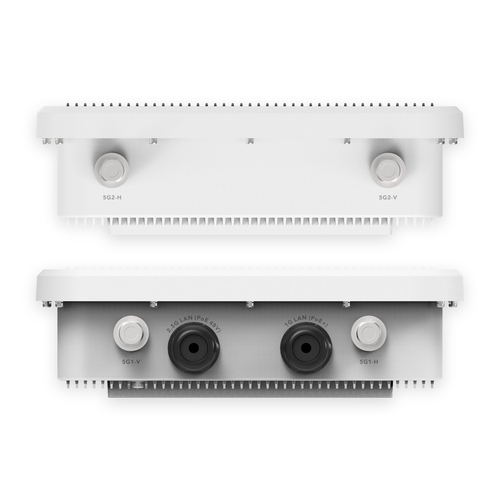

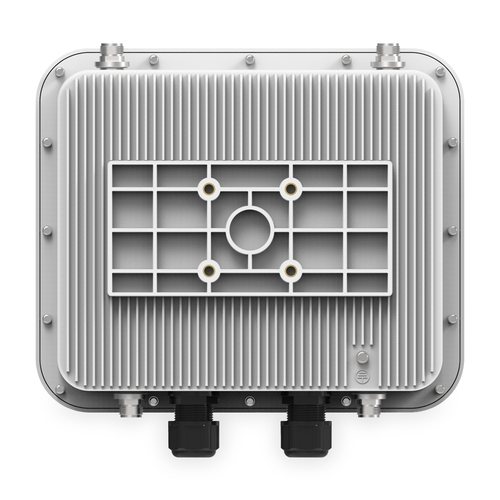

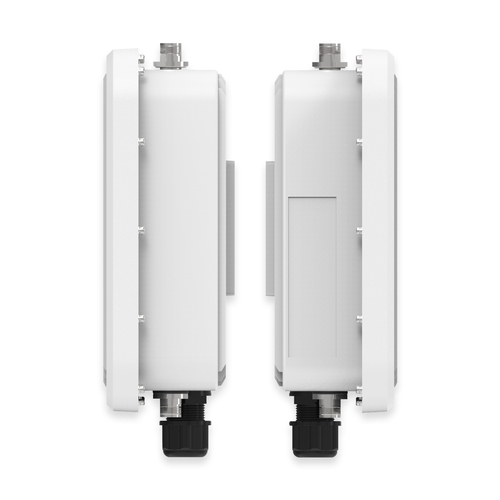

EnGenius Outdoor PTP/PTMP Bridge, Wi-Fi 6 (11ax), 2x2.5GbE , 360° , at

Part number EOC655

NEW ENGENIUS BROADBAND OUTDOOR ACCESS POINT EOC655/5GHZ DUAL RADIO DELIVERS SPEE

Wi-Fi 6 (802.11ax) technology with OFDMA, Beamforming, and MU-MIMO for improved throughput
2x2 dual 5GHz radios capable of reaching speeds of up to 2 Gbps
High 27 dBm transmit power extends Wi-Fi to the yard or building-to-building
Auto Provisioning: Streamline large-scale network development with easy, centralized control
Mobile App Radio Tuning: Integrates a 2.4 GHz radio with a mobile app for easy PtP or PtMP setup, efficient antenna alignment, and streamlined troubleshooting
Quick Outage Response: Features a Dying Gasp module for prompt alerts and response to power-related issues
Automatic RF Correction: Enhances network resilience by improving stability and reducing interruptions
Auto & Dynamic Channel Selection: Automatically choose optimal channels to avoid interference and enhance signal quality
Smart Network Mapping: Built-in GPS enables auto-discovery and detailed network topology insights
Centralized Network Management Software: Offers a comprehensive web-based network performance, health, and security management platform
IP67-Rated Casing: Ensures durability against harsh environmental conditions, prolonging device lifespan
Uncompromised Security: Ensures top-tier data protection with AES-256 encryption and optional FIPS-140-2 compliance

Manufacturer: EnGenius
Part number: EOC655
Condition: New
Category: Network Devices › Wireless Networking
1GPA category: Hardware

Overview

EnGenius EOC655 Wi-Fi 6 2x2 outdoor bridge boasts dual 5GHz radios that can reach speeds of up to 2Gbps. Its IP67 rating ensures reliable performance even in harsh outdoor conditions. Equipped with built-in GPS, the EOC series ensures precise device placement and effective network mapping. This is crucial for PtP/PtMP setups, asset management, and network integration through auto-discovery features. The system prioritizes security by utilizing AES-256 encryption and providing optional FIPS-140-2 compliance for reliable and secure communication. With the SkyPoint NMS, you can enjoy comprehensive web-based monitoring and management while auto-provisioning enables efficient large-scale deployments.

Specifications

Data transmission
Maximum data transfer rate	2500 Mbit/s

Antenna
Antenna design	Internal & external
Antenna connector type	N-type

Wireless LAN features
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)

Network
Ethernet LAN	Yes
Ethernet LAN interface type	2.5 Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Networking standards	IEEE 802.11e, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u

Ports & interfaces
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	2

Management features
Management protocols	SNMP v1, v2c, v3

Features
Product type	Network bridge
Mounting type	Pole
Product colour	White
International Protection (IP) code	IP67
Processor family	ARM Cortex
Processor model	Cortex-A53
Processor frequency	1 MHz
Processor manufacturer	Qualcomm
Internal memory	1024 MB
Mean time between failures (MTBF)	100000 h

Power
Power source type	PoE
Power consumption (max)	21 W

Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	-30 - 80 °F
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%

Certificates
Certification	FCC, CB, RoHS, WEEE

Weight & dimensions
Width	267 mm
Depth	227 mm
Height	82 mm
Weight	1.84 kg

Packaging content
Packaging content	1 – EOC655 Outdoor Wireless 1 – PoE Injector 1 – Power Cord 1 – Pole Mount Brackets 1 – Pole Mount Strap 1 – Ethernet Cable Cat5e 1.5 mts 1 – Grounding Cable 1.8 mts

Other features
Warranty period	1 year(s)

Packaging data
Package width	314 mm
Package depth	159 mm
Package height	450 mm
Package weight	3.99 kg
Quantity per pack	1 pc(s)

Logistics data
Harmonized System (HS) code	85176990
Master (outer) case width	332 mm
Master (outer) case length	338 mm
Master (outer) case height	485 mm
Master (outer) case gross weight	8.74 kg
Products per master (outer) case	2 pc(s)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
