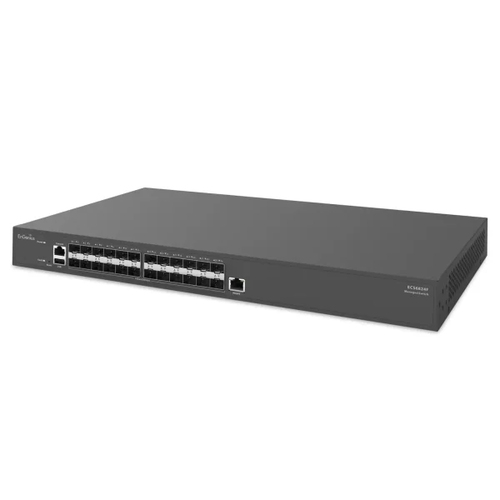

EnGenius 24-Port Non-PoE Layer 3 Switch
Part number ECS6824F
ENGENIUS CLOUDSWITCH ECS6824F 24X10G SFP+ ENTERPRISE L3
- 24-Port 10G Fiber Network Switch
- 10 Gigabit connectivity
- 480 Gbps Switching Capacity
- Scalable Fiber Aggregation
- High-Performance Layer 3 Routing
- High Availability with VRRP
- Manufacturer
- EnGenius
- Part number
- ECS6824F
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
The EnGenius CloudSwitch Core ECS6824F is a cloud-managed Layer 3 fiber switch with 24 × 10G SFP+ ports for high-speed aggregation and core connectivity. It combines advanced Layer 3 routing with enterprise-class reliability, making it ideal for small to mid-sized enterprise deployments.
Scalable Enterprise Core Network Connectivity
The EnGenius ECS6824F delivers high-speed 10G fiber connectivity, advanced Layer 3 routing, and cloud-based management, making it an ideal core and aggregation switch for small to mid-sized enterprise networks.
24×10G Fiber Connectivity
Deliver high-speed 10G fiber connectivity for small to mid-sized enterprise core and aggregation networks.
Advanced Layer 3 Routing
Optimize traffic with dynamic Layer 3 routing, high-performance switching, and intelligent network segmentation.
Flexible Management, Simplified
Manage switches with EnGenius Cloud, Standalone Mode, or remotely via GUI and CLI.
Specifications
| Switch type | Managed |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| SFP+ module slots quantity | 24 |
|---|---|
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3z, IEEE 802.3ae, IEEE 802.1p |
|---|---|
| 10G support | Yes |
| Routing entries | 1500 |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Switching capacity | 480 Gbit/s |
|---|---|
| MAC address table | 16000 entries |
| Static route | Yes |
| Number of static routes | 512 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| DHCP features | DHCP relay, DHCP server, DHCP client |
|---|---|
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv4 entries | 256 |
| Access Control List (ACL) IPv6 entries | 512 |
| IGMP snooping | Yes |
| IGMP entries | 256 |
| Multicast Listener Discovery (MLD) snooping | Y |
|---|
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
| Memory type | DDR4-SDRAM |
|---|---|
| Internal memory | 2 MB |
| Flash memory | 264 MB |
| Power source | AC |
|---|---|
| Power supply included | Yes |
| Number of power supply units | 2 |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 257 mm |
|---|---|
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 3.6 kg |
| Package width | 350 mm |
|---|---|
| Package depth | 535 mm |
| Package height | 100 mm |
| Package weight | 4.58 kg |
| Country of origin | Taiwan |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
