Products › Displays

Eizo

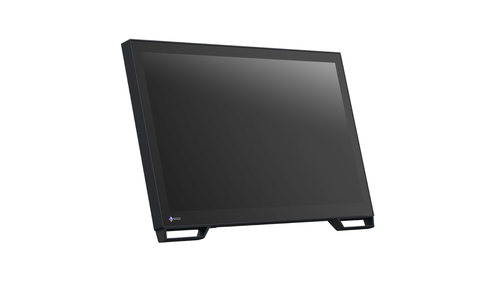

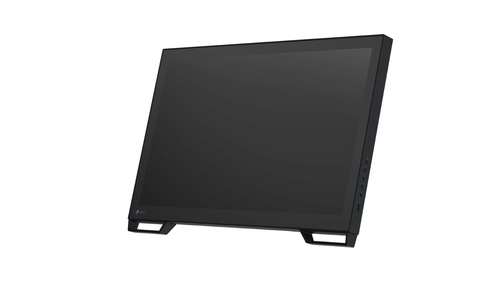

EIZO DuraVision FDF2382WT-A computer monitor 58.4 cm (23") 1920 x 1080 pixels Full HD LED Touchscreen Tabletop Black

Part number FDF2382WT-A-BK

PROJECTED CAPACITIVE MULTI TCH PANEL 23.0WIDE CLR TFT IPS LCD WLED

  • 58.4 cm (23") Black
  • Height adjustment 18.5 cm Built-in speaker(s)
  • USB upstream port type: USB Type-B HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Maximum refresh rate: 60 Hz Response time: 11 ms
  • 1920 x 1080 pixels Full HD Panel type: IPS
  • Energy efficiency class (SDR): E
Manufacturer
Eizo
Part number
FDF2382WT-A-BK
Condition
New
Category
Displays › Computer Monitors
1GPA category
Hardware

Overview

The FDF2382WT-A recognises up to 10 simultaneous touches and allows smooth and accurate pen input. It ignores incorrect entries, for example, when the palm of the hand is resting on the screen.

Maximum image quality thanks to the IPS panel

The monitor is capable of all three key elements of excellent image quality: excellent resolution of 1920 x 1080 (Full HD) pixels, maximum contrast of 1000:1, and stable brightness of up to 260 cd/m². That means you will experience razor-sharp text contours, brilliant graphics, and clear images. Thanks to the high-quality IPS panels with LED backlight, contrasts and colours remain stable from every viewing angle.

Flicker free

The monitor is flicker-free at every brightness setting. This is great for users, as their eyes will not tire as quickly, allowing them to work in front of the screen for longer periods of time without fatigue.

Overdrive to quickly change images

Fast, faster, overdrive. The overdrive function accelerates switching time so that the gray-gray change takes only 11 ms on average. You can watch films and rapidly changing images without annoying afterglow.

Fine, precise stylus input

The FDF2382WT-A contains reliable capacitive touch technology (PCAP) that detects movements with very high precision. Hence you can easily capture even small writing and character input via the screen.

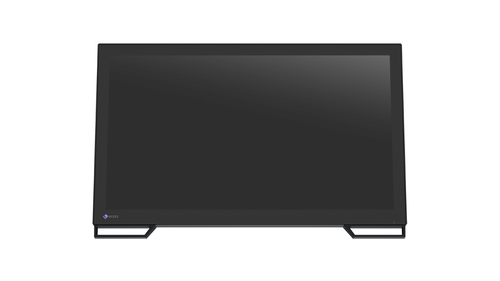

Frameless touchscreen

The display extends right up to the bezels – this means that the entire touch surface can be used without disruptions right up to the edges, which is particularly convenient for swiping and scrolling motions.

Multi-touch screen with robust surface

The monitor can detect up to ten simultaneous touches, which means that multiple individuals can operate the monitor at the same time. Furthermore, the touchscreen is equipped with hand ball recognition. While writing, users can place their hands or arms on the monitor without accidentally triggering an input.

With a hardness of 5H, the glass surface is insensitive to scratches and guarantees to recognize up to 50 million touches.

Touch detection and sensitivity

The monitor is equipped with technology that calibrates the touch sensitivity to minimise incorrect touch response due to environmental factors and electromagnetic noise. This ensures that the screen maintains accurate touch interaction during use.

Users can easily turn touch detection on or off by pushing the button conveniently located on the monitor's outer rim. A button is located on two sides of the monitor for easy access.

Touch operation without additional drivers

The multitouch interface is supported by standard Windows 11, 10 and 8.1 drivers. You can operate the touch panel without additional drivers by simply connecting the USB cable.

In addition to Windows standard touch drivers, a dedicated touch driver is also available to support touch interaction sounds and mouse emulation.

Preset color modes: optimized display at the touch of a button

Preset color modes make it easier for you to work and view images, texts and videos. This is because when choosing color settings, it makes a difference whether you are looking at a film, editing an image, surfing the Internet or writing texts. You can configure the respective default settings for brightness, gamma correction and colour temperature at the press of a button.

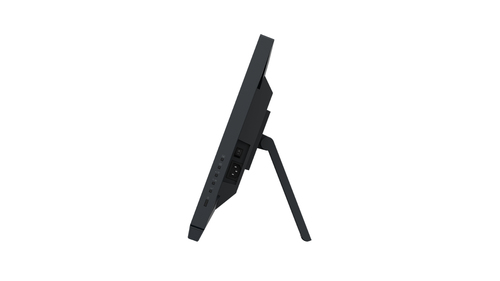

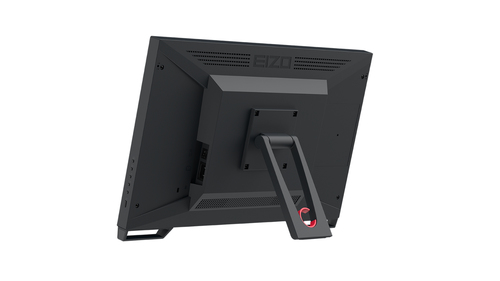

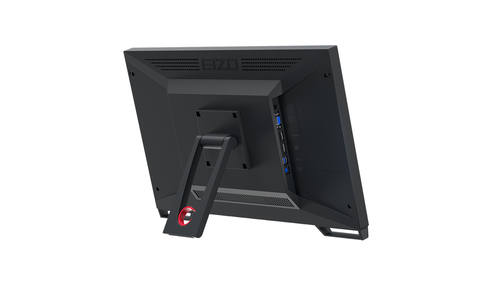

Reclining stand

The equipped stand provides flexible positioning to allow the monitor to rest on your desk like a laptop and recline back to your desired angle. This makes it easy to place the monitor in the ideal position for comfortable use in any environment.

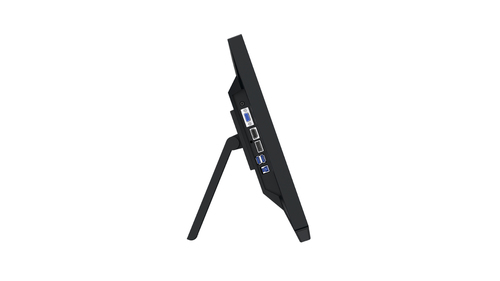

One monitor, many ports

It couldn't be easier: Most end devices, such as PC, laptop, mouse, keyboard or headphones, can be connected directly to the monitor, thanks to its wide range of signal interfaces and ports. This makes your daily work easier and ensures a tidy desk.

Three-year warranty

EIZO grants a three-year warranty. This is possible thanks to the highly developed production process based on a simple principle of success: sophisticated and innovative technology, made from high-end materials.

24/7 use

The FDF2382WT-A is built for 24-hour use and is characterised by maximum reliability.

Specifications

Display
Display diagonal58.4 cm (23")
Display resolution1920 x 1080 pixels
HD typeFull HD
Native aspect ratio16:9
Display technologyLED
Panel typeIPS
LED backlightYes
Backlight typeLED
TouchscreenYes
Touchscreen typeTabletop
Touchscreen technologyProjected capacitive system
Touch technologyMulti-touch
Number of simultaneous touchpoints10
Display brightness (typical)260 cd/m²
Response time11 ms
Screen shapeFlat
Contrast ratio (typical)1000:1
Maximum refresh rate60 Hz
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.78 million colours
Pixel pitch0.265 x 0.265 mm
Viewable size, horizontal50.9 cm
Viewable size, vertical28.6 cm
Digital horizontal frequency31 - 68 kHz
Digital vertical frequency59 - 61 Hz
Display diagonal (metric)58 cm
Performance
NVIDIA G-SYNCNo
AMD FreeSyncNo
Flicker-free technologyYes
Multimedia
Built-in speaker(s)Yes
Built-in cameraNo
Design
Product colourBlack
Ports & interfaces
Built-in USB hubYes
USB hub version3.2 Gen 1 (3.1 Gen 1)
USB upstream port typeUSB Type-B
Number of upstream ports1
USB Type-A downstream ports quantity2
USB Touch portYes
USB Touch ports quantity1
VGA (D-Sub) ports quantity1
HDMIYes
HDMI ports quantity1
DisplayPorts quantity1
Audio inputYes
HDCPYes
Ergonomics
VESA mountingYes
Panel mounting interface100 x 100 mm
Height adjustmentYes
Adjustable height (max)18.5 cm
PivotYes
Tilt adjustmentYes
Tilt angle range15 - 70°
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesSimplified Chinese, German, English, Spanish, French, Italian, Japanese, Swedish
Power
Energy efficiency class (SDR)E
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours17 kWh
Power consumption (typical)12 W
Power consumption (standby)1.5 W
Power consumption (max)47 W
Power consumption (off)0.3 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power supply typeInternal
Energy efficiency scaleA to G
Weight & dimensions
Width (with stand)556.7 mm
Depth (with stand)216.3 mm
Height (with stand)353.9 mm
Weight (with stand)6.6 kg
Width (without stand)556.7 mm
Depth (without stand)54 mm
Height (without stand)339.2 mm
Weight (without stand)6 kg
Packaging content
Cables includedAC, DisplayPort, HDMI, USB, USB Type-A to USB Type-B
Other features
Placement supportedHorizontal
CertificationCE, UKCA, CB, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC
Technical details
Native refresh rate60 Hz

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
