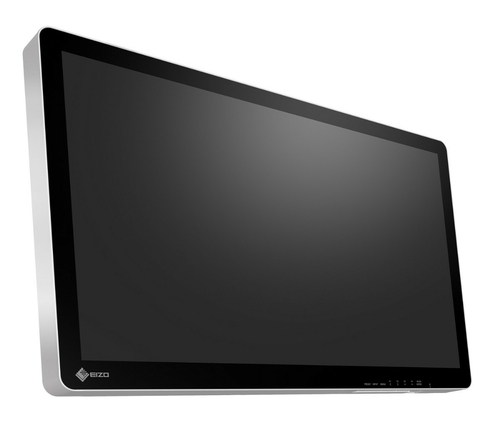

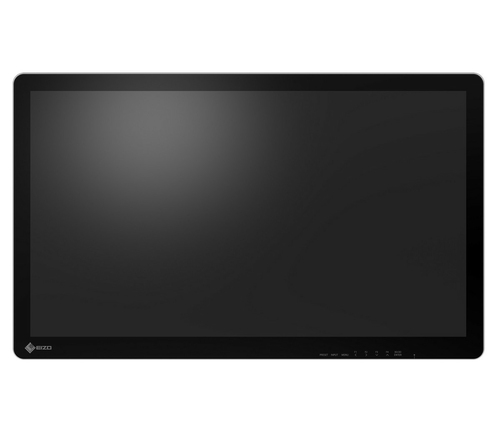

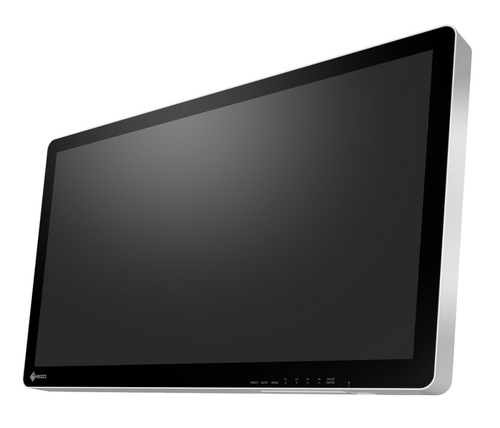

EIZO CuratOR EX3242-3D computer monitor 81.3 cm (32") 3840 x 2160 pixels 4K Ultra HD LCD Touchscreen White

Overview

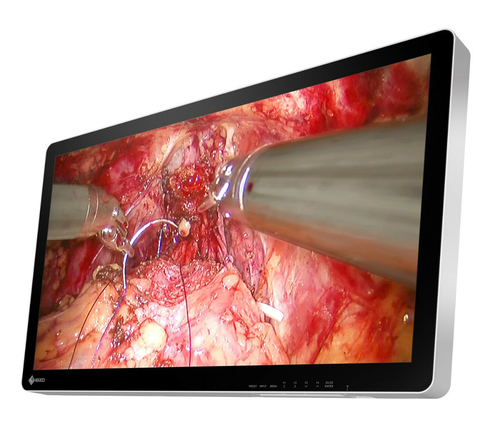

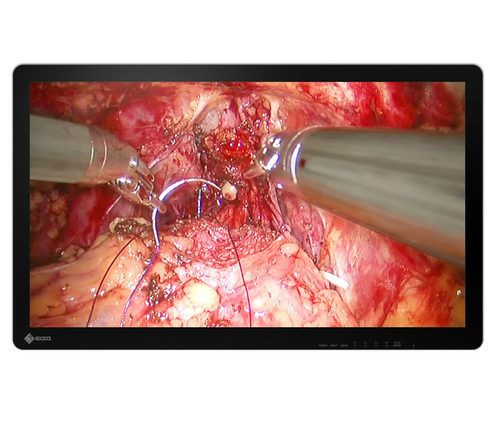

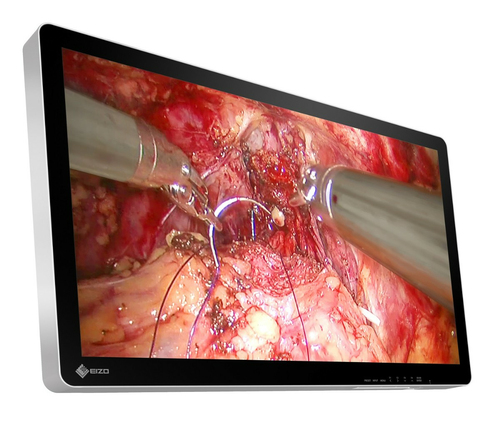

A 32-inch widescreen 3D surgical monitor with 4K UHD (3840 x 2160 pixels) for faithful reproducing stereoscopic images for endoscopy, microsurgery, and other high-precision procedures.

4K 3D Surgical Display with High Visibility

This monitor faithfully reproduces stereoscopic images in 4K UHD resolution (3840 x 2160) at a high brightness of up to 850 cd/m², achieving both detail and depth for endoscopy and microsurgery.

Wide Color Gamut for Distinguishing Tones

During procedures, the operating surgeon needs to be able to differentiate between varying color tones. The monitor supports the BT.2020 4K video color standard to ensure that subtle differences between shades of reds and yellows captured by BT.2020-supported cameras are distinguishable on the screen.

HDR Compatibility

HDR (High Dynamic Range) is a range that approximates the human perception of color and light as content is shown on a display device. The monitor is equipped with the perceptual quantization (PQ) curve and hybrid log-gamma (HLG) for supporting HDR. This ensures images from HDR-supported endoscope cameras are displayed without crushing blacks and more closely resemble the human visual system.

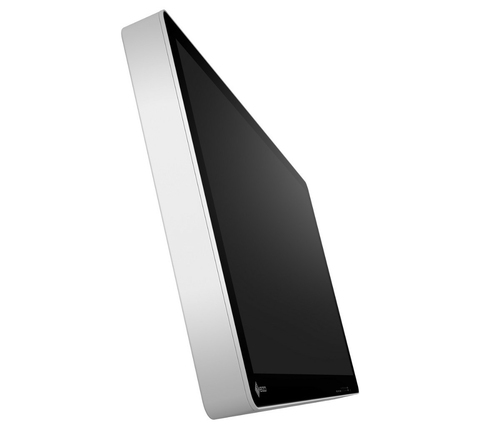

Fully Flat Design

Operating rooms contain various medical devices that are arranged according to the type of surgery. Safe handling and a sterile environment play a major role. EIZO's surgical monitors adopt a flat design with rounded corners that promotes a safe environment and easy cleaning and disinfection. Furthermore, the front is covered with a fully flat protective glass with IP45 for protection against foreign material and splashes (the whole monitor has an IP32 rating).

Cable Cover for Safety and Hygiene

With the attached cable cover, cables can be stored neatly out of sight, increasing safety and hygiene.

High Durability

The monitor has protective glass with a hardness of 9H, making it resistant to impacts. Furthermore, the monitor is equipped with optical bonding, which removes the layer of air between the LCD panel and glass. This ensures foreign materials such as dust and moisture cannot damage the LCD panel.

Reduced Reflections

Reflections on the screen of LCD monitors are caused when external light hits the screen and reflects off of the protective glass and layer of air at different refractive indices. Optical bonding removes the layer of air in order to lower the difference of refractive indices. This softens the reflections and produces a clear, highly visible image without affecting contrast.

Condensation Prevention

Optical bonding prevents condensation from forming between the LCD panel and protective glass. This allows the monitor to maintain high visibility in harsh environments.

Various 3D Signal Format Support

The monitor supports Side by Side, Line by Line, Top and Bottom, and Simulcast (SIMUL) 3D signal formats.

Connectivity with a Wide Range of Devices

With BNC (12G-SDI), and DisplayPort or HDMI, 4K UHD images are displayed at 60 frames per second with a single cable over various modalities. When connected via BNC (12G-SDI), stable transmission is achieved even over long distances of 30 meters. In addition, the monitor is equipped with two BNC (12G-SDI), enabling connection to a wide range of devices, such as a 4K/3D microscope camera that can display clearly in Simulcast (SIMUL) format.

Output Images Directly to Multiple Monitors

The monitor is also equipped with BNC (12G-SDI), DisplayPort, and DVI output terminals so input video can be passed through and output directly to the next monitor.

The same image is displayed on multiple monitors making information sharing among medical staff smooth in the operating room, while alleviating excess cabling.

3D-Mode: 180° Rotation and Mirroring

Regardless of the orientation of the endoscopic camera, you can rotate the displayed 3D image by 180° or mirror it to find the perfect operating angle. This is suitable for matching the image with the line of sight of surrounding assistants and surgeons, improving convenience in the operating room.

3D-mode: Parallax Adjustment

With the parallax adjustment function, you can adjust 3D images horizontally so that it displays a natural sense of depth.

View Two Signals on One Screen

Two different types of signal sources can be viewed simultaneously on one monitor side by side using the PbyP (Picture-by-Picture) or one displayed within an inset window over the other with the PinP (Picture-in-Picture) function. This is useful in cases where vitals or ultrasound endoscopes need to be monitored simultaneously in addition to surgical images.
