Eaton

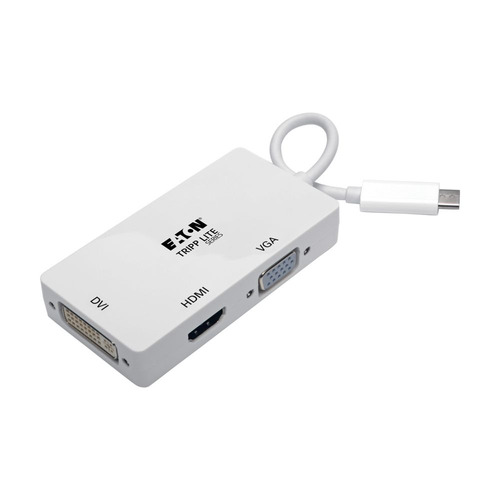

Eaton U444-06N-HDV4K6 interface hub USB Type-C White
Part number U444-06N-HDV4K6
EATON TRIPP LITE SERIES USB C MULTIPORT ADAPTER M/3XF 4K60HZ HDMI 1080P VGA + DV
- Plug-and-play operation with no software required for easy, immediate installation
- Low-profile design is easy to carry in a laptop bag, briefcase or purse
- Transmits video signals from sources supporting USB DisplayPort Alt Mode
- Connects HDMI, DVI and VGA with no need to carry separate adapters for each display
- Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) with High Dynamic Range (HDR)
- Manufacturer
- Eaton
- Part number
- U444-06N-HDV4K6
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Specifications
| Host interface | USB Type-C |
|---|---|
| Hub interfaces | DVI-D, HDMI, VGA |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ports quantity | 3 |
| Maximum refresh rate | 60 Hz |
|---|---|
| Supported graphics resolutions | 3840 x 2160, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |
| Colour depth | 48 bit |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| High Dynamic Range (HDR) supported | Yes |
| Product colour | White |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Mirror mode | Yes |
| Number of displays supported | 2 |
| AWG wire size | 34/32/28 |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Connector contacts plating | Nickel |
| Plug and Play | Yes |
| Certification | EN 55032 EN 55035 IEC/EN 63000 |
| Width | 45.7 mm |
|---|---|
| Depth | 83.8 mm |
| Height | 15.2 mm |
| Weight | 50 g |
| Quantity per pack | 1 pc(s) |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Operating temperature (T-T) | 32 - 113 °F |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Compliance certificates | CE, UKCA, RoHS, Federal Communications Commission (FCC), REACH |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
