Eaton U444-06N-H4GUC3

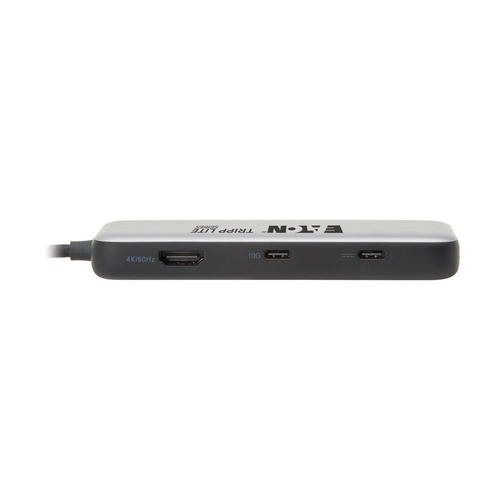

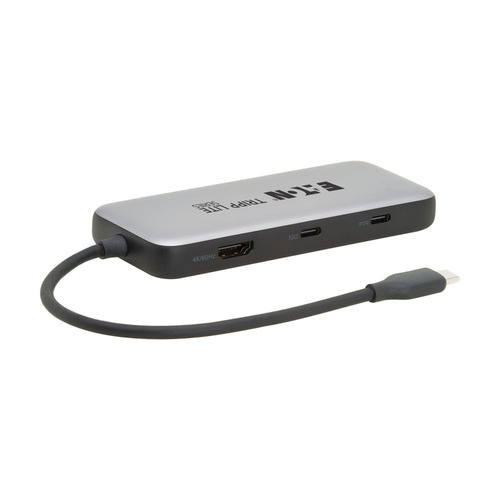

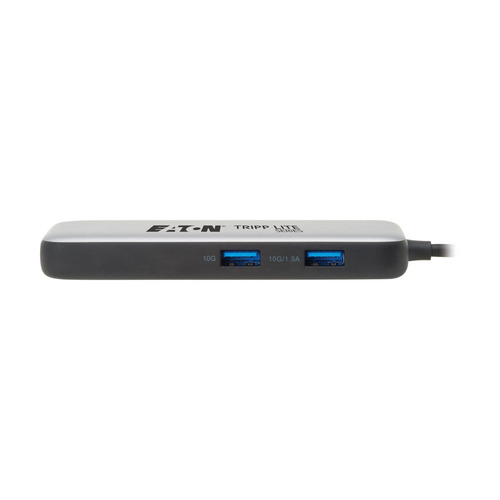

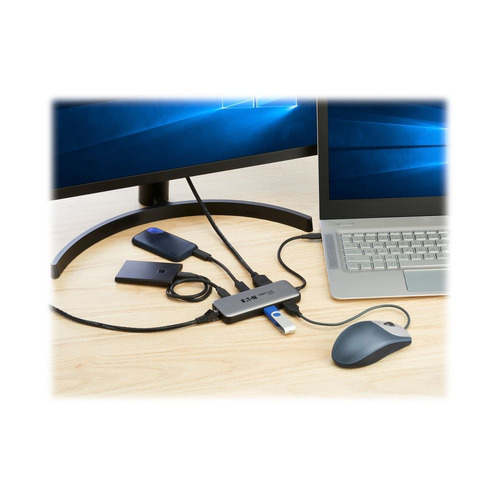

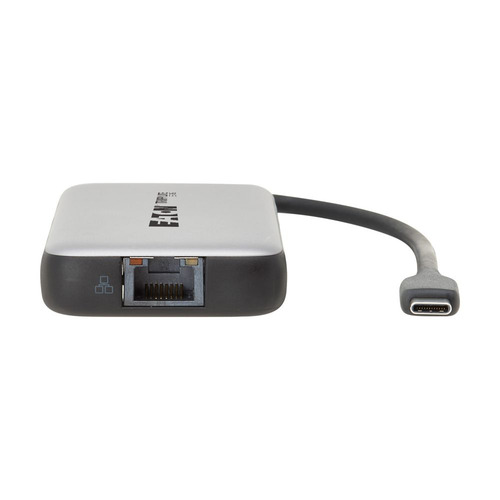

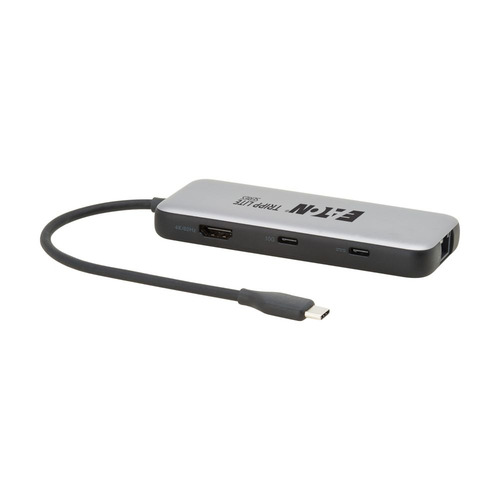

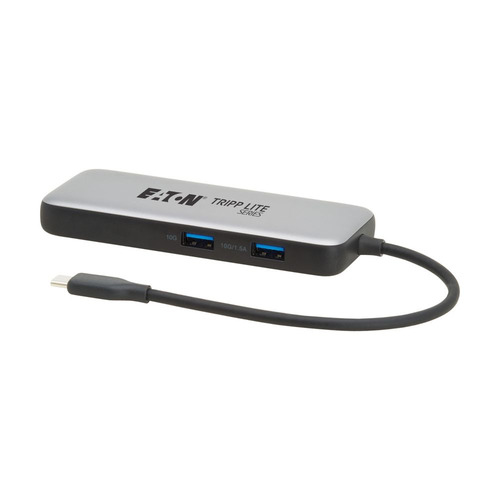

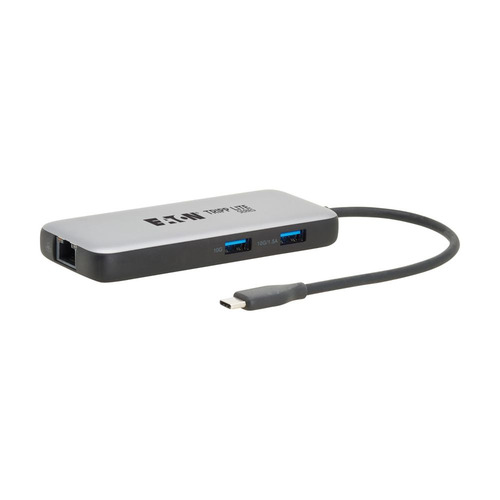

View 1 View 2 View 3 View 4 View 5 View 6 View 7 View 8
Eaton

Eaton U444-06N-H4GUC3 interface hub USB Type-C 10000 Mbit/s Black, Grey

Part number U444-06N-H4GUC3

EATON TRIPP LITE SERIES USB-C MULTIPORT ADAPTER - 4K 60 HZ HDMI, USB 3.2 GEN 2 H

  • USB 3.2 Gen 2 data ports transmit to external drives and connect peripherals at 10 Gbps
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) for heightened video quality
  • Connects you to a wired Gigabit Ethernet network when Wi-Fi is weak or unavailable
  • Power Delivery port provides 20V 5A (100W) output for charging connected host device
Manufacturer
Eaton
Part number
U444-06N-H4GUC3
Condition
New
Category
Input & Output Devices › Usb & Firewire Conn
1GPA category
Hardware

Specifications

Ports & interfaces
Host interfaceUSB Type-C
Hub interfacesUSB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, HDMI, RJ-45
Ports quantity6
Ethernet LAN (RJ-45) ports1
Features
Data transfer rate10000 Mbit/s
Supported graphics resolutions3840 x 2160
Colour depth36 bit
High Dynamic Range (HDR) supportedYes
3DYes
Product colourBlack, Grey
Housing materialPolycarbonate (PC), Acrylonitrile butadiene styrene (ABS)
HDCPYes
HDCP version2.3
USB Power Delivery (USB PD)Yes
USB Power Delivery up to100 W
Mirror modeYes
Number of displays supported1
AWG wire size34/24
Cable jacket materialThermoplastic elastomer (TPE)
Cable length0.17 m
Connector contacts platingNickel
CertificationEN 55032 EN 55035
Network
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Weight & dimensions
Width119.9 mm
Depth15.5 mm
Height50 mm
Weight40 g
Packaging data
Quantity per pack1 pc(s)
Operational conditions
Operating temperature (T-T)0 - 45 °C
Operating temperature (T-T)32 - 113 °F
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 85%
Storage relative humidity (H-H)5 - 95%
Technical details
Compliance certificatesUKCA, REACH, RoHS, CE, Federal Communications Commission (FCC)
Connector 1 form factorStraight
Other features
Maximum resolution3840 x 2160 pixels

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
