Eaton SRCABLEVRT6HD2 rack accessory Cable management panel

Overview

Vertical fiber cable manager routes and organizes network cabling through your open frame rack while maintaining proper bend radius.

7 ft. Vertical Cable Manager Keeps Your Rack Looking Neat and Organized

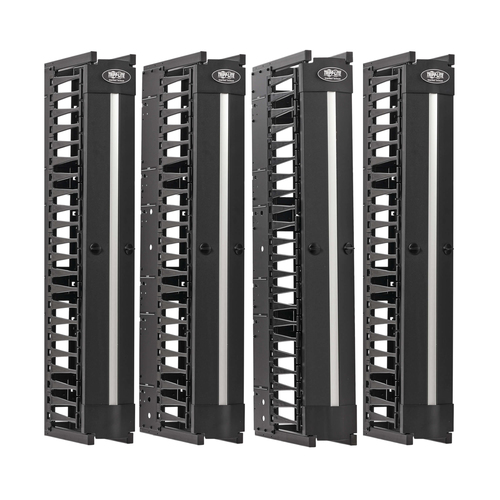

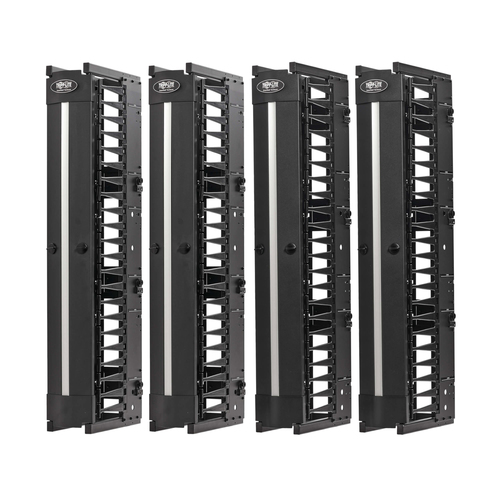

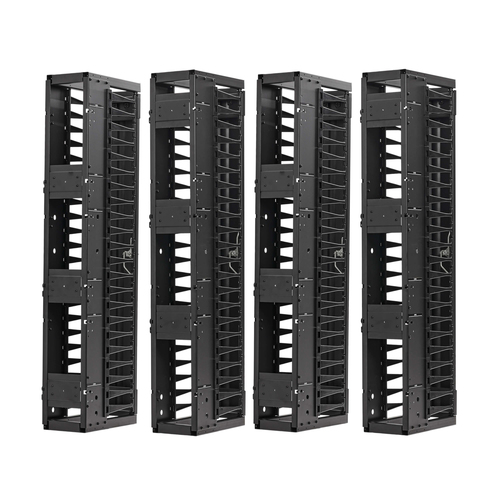

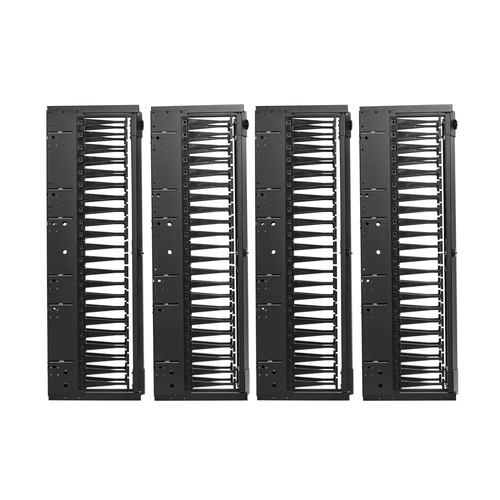

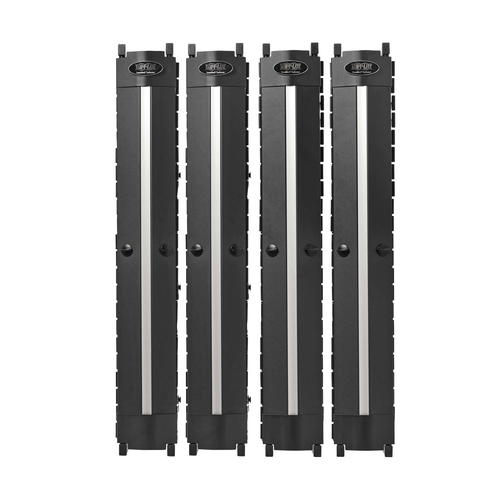

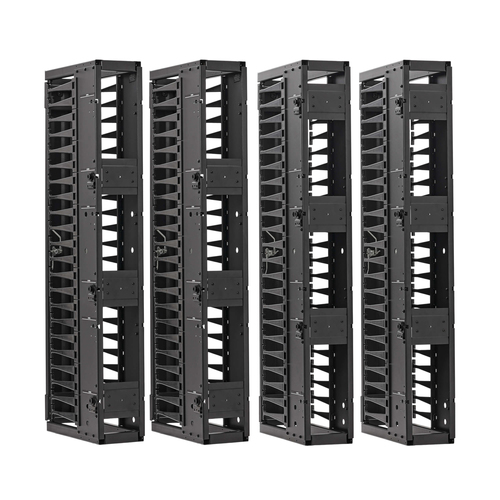

Easy to mount along the side of your open frame rack, the SmartRack® SRCABLEVRT6HD2 neatly organizes fiber optic, copper and coax cable bundles. This vertical manager maintains proper bend radius to eliminate stress on the cables connecting your network devices. Fingers on either side allow convenient access to cabling for routing and separation of bundles. The high-capacity six-inch (15.2-centimeter) width and 11.4-inch (29-centimeter) depth on both sides allows the installation and routing of large cable bundles. The cable manager is made from cold-rolled steel with a black finish to match your rack.

3.5 ft. Sections Allow Flexibility in Mounting

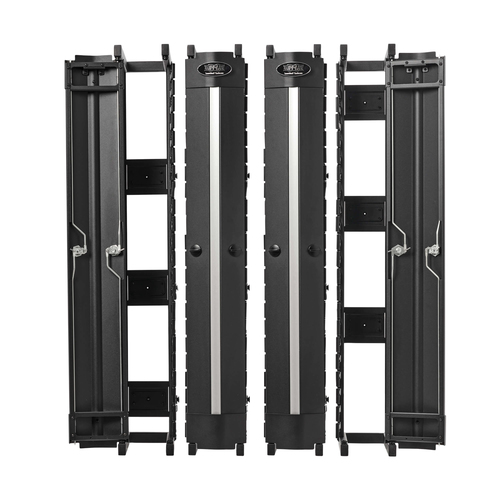

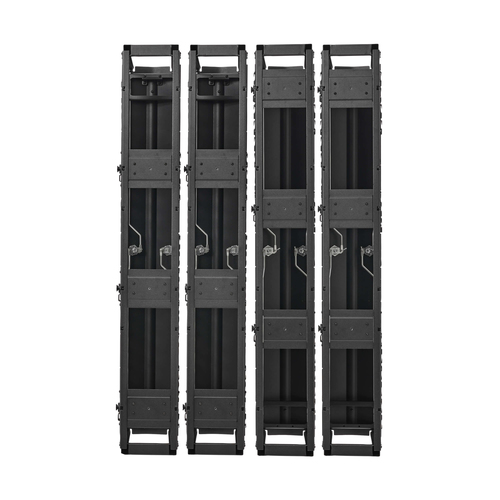

The double-sided SRCABLEVRT6HD2 splits into four 3.5-foot (1.1-meter) sections to give you more installation options while maintaining the same mounting points as the single-sided version (SRCABLEVRT6HD, sold separately). All assembly hardware is included. No hardware is required for toolless 0U vertical installation in an EIA-standard 19-inch 2-post or 4-post open frame rack.
