Eaton P054-02M-EU power cable Black 2 m CEE7/7 IEC C13
Part number P054-02M-EU
PDU POWER CORD, SCHUKO TO C13 - 10A, 100-250V, H05VV-F, 2 M (6.6 FT.), BLACK
- 2-meter length allows flexibility in placing devices in relationship to AC outlet
- Ideal replacement for a worn-out or missing power cord
- VDE-compliant H05VV-F jacket allows use in European IT applications
- Manufacturer
- Eaton
- Part number
- P054-02M-EU
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Connects a computer, server or drive with a C14 plug to a Schuko wall outlet.
Power Cord Connects Data Center Equipment to Reliable AC Power

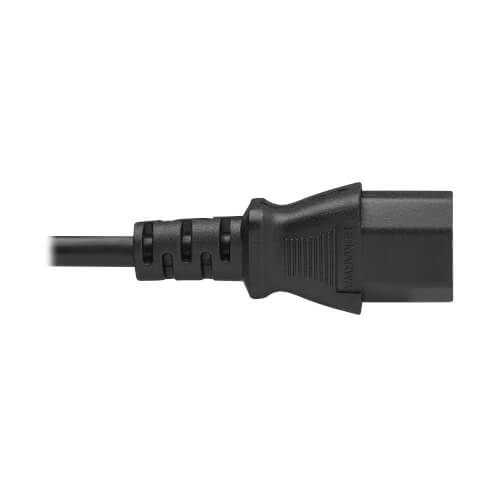

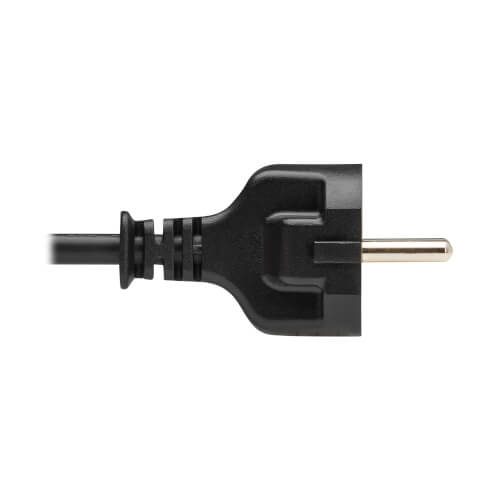

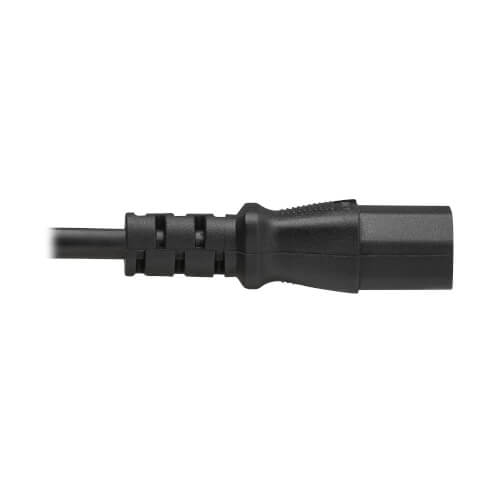

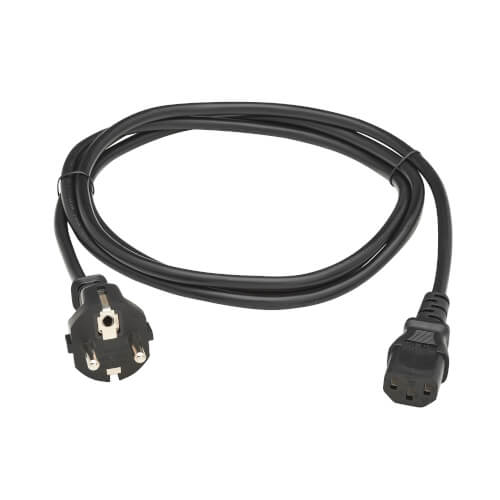

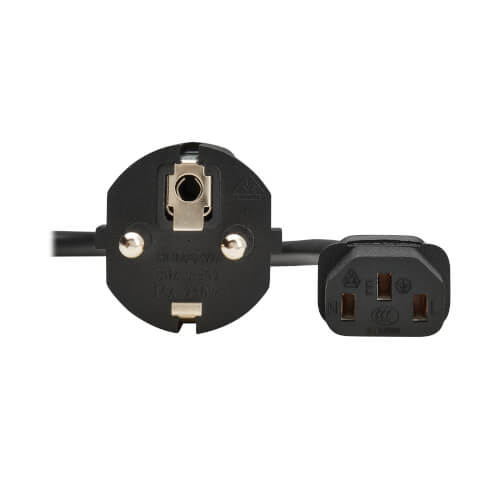

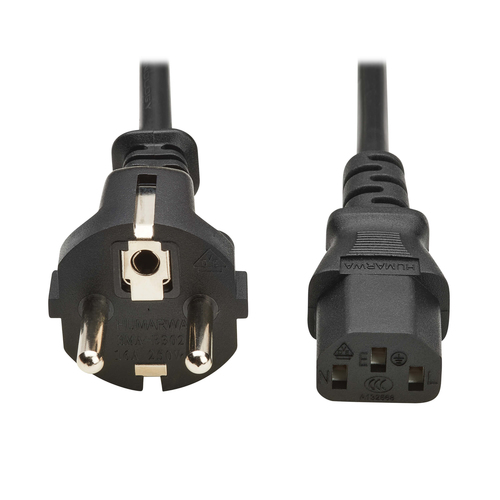

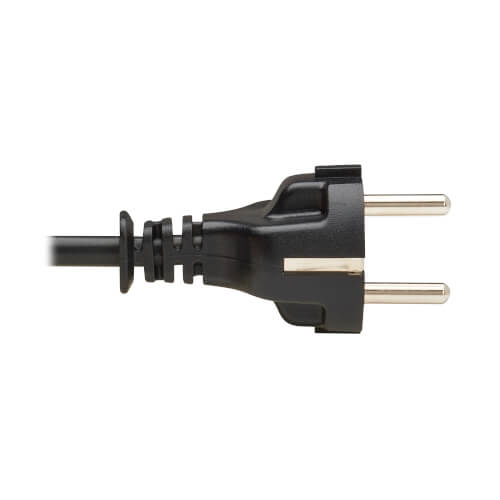

This VDE-compliant power cable connects a computer, server or drive with a C14 plug to a PDU, UPS or surge protector with Schuko outlets. Or you can extend an existing power connection up to two meters (6.6 feet). The P054-02M-EU features a CEE 7/7 Schuko end for connecting to an AC power source and an IEC-320-C13 end for connecting to a network device in a data center or other IT application.
H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.
Specifications
| Product colour | Black |
|---|---|
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable length | 2 m |
| Connector 1 | CEE7/7 |
| Connector 2 | IEC C13 |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable type | H05VV-F |
| Number of conductors | 3 |
| Input voltage | 100-250 V |
|---|---|
| Input current | 10 A |
| Operating temperature (T-T) | -15 - 70 °C |
|---|---|
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Certification | CE (Europe); REACH; RoHS; UKCA |
|---|
| Diameter | 6.7 mm |
|---|
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 178.1 mm |
| Package depth | 12.7 mm |
| Package height | 229.1 mm |
| Package weight | 110 g |
