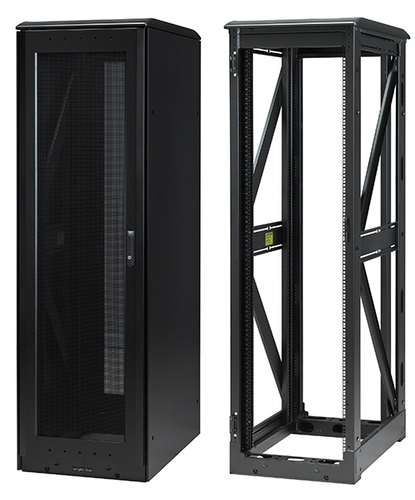

Eaton ETN-ENC442448S rack cabinet 42U Freestand/Wall/Floor mounted rack Black
Part number ETN-ENC442448S
S RACK 44U X 24W X 48IND
- Fully configured Seismic Enclosures tested to Telecordia GR-63-Core seismic requirements up to 1,300 lbs. (590 kg)
- 12 gauge steel construction
- Size: 84"H (42U usable vertical space), 24"W or 30"W and 40"D
- NEBS rated doors with Dirak swing handle threepoint latching system (Black)
- Dirak swing handle is the NEBS approved lock for this enclosure
- Doors have full perforation pattern
- Standard Titanium insert panels are used with the NEBS door frames
- Mechanically fastened NEBS rated side panels or divider panels (Black)
- Frame is configured with networking top panel
- Seismic mounting washers included with the frame
- Lacing bar provided for PDU mounting in rear
- Grounding kit included
- Manufacturer
- Eaton
- Part number
- ETN-ENC442448S
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
The Eaton S-Series seismic enclosure is ideal for installations where shock and vibration are factors - including earthquake zones, railway, shipboard, power plants and airports. The S-Series seismic enclosure helps protect your electronics by providing enhanced frame strength and rigidity.
Specifications
| Rack capacity | 42U |
|---|---|
| Type | Freestand/Wall/Floor mounted rack |
| Maximum weight capacity | 590 kg |
| Product colour | Black |
| Material | Steel |
| Front door construction | Mesh |
| Removable back door | Yes |
| Removable side panels | Yes |
| Side panels included | Yes |
| Castor wheels | No |
| Width | 762 mm |
|---|---|
| Depth | 1016 mm |
| Height | 2134 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
