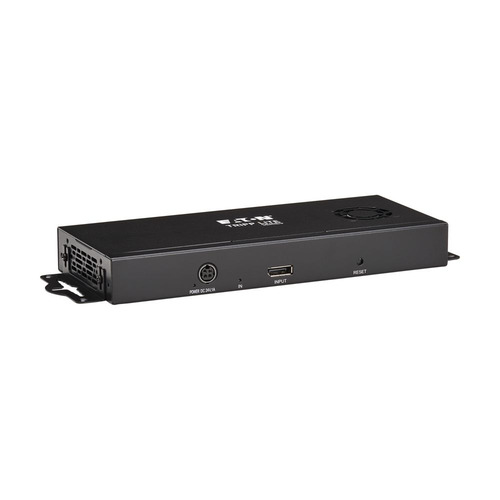

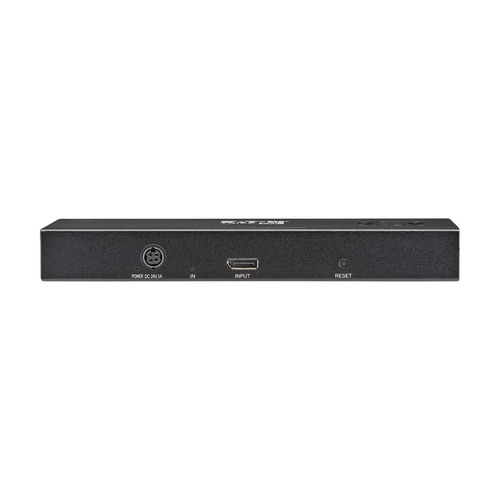

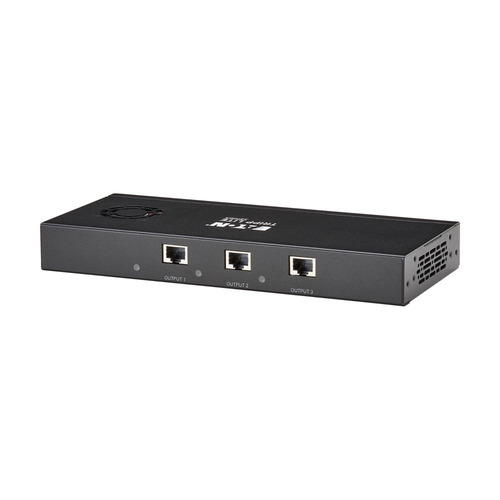

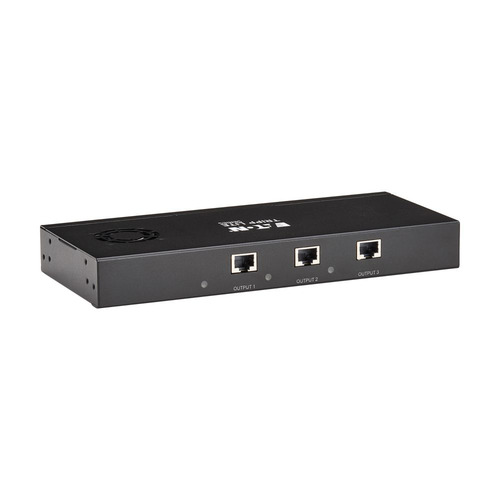

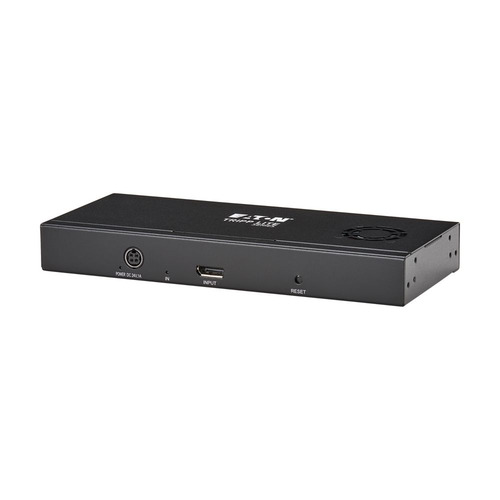

Eaton B156E-003-H8K-K video splitter DisplayPort HDMI
Part number B156E-003-H8K-K
EATON TRIPP LITE SERIES 3-PORT DISPLAYPORT TO HDMI SPLITTER/EXTENDER KIT OVER CA
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Supports UHD resolutions up to 8K @ 60 Hz (4:4:4) in video wall mode
- Power over Cable (PoC) technology provides power to the receivers via Cat6 cable
- Transmits in mirrored, extended and video wall modes for advanced digital signage
- Ready for plug-and-play operation with no additional software or drivers needed
- Manufacturer
- Eaton
- Part number
- B156E-003-H8K-K
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Specifications
| Video port type | DisplayPort |
|---|---|
| Video out | HDMI |
| Video ports quantity | 3 |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
|---|---|
| Maximum resolution | 7680 x 2160 pixels |
| Maximum operating distance | 70 m |
| Colour depth | 12 bit |
| HDCP version | 2.3 |
| Cable length | 1.52 m |
| HDCP | Yes |
| Connector contacts plating | Gold |
| Plug and Play | Yes |
| LED indicators | Signal, Power |
| Number of displays supported | 2 |
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 26.5 W |
| Width | 235 mm |
|---|---|
| Depth | 100 mm |
| Height | 29.7 mm |
| Weight | 220 g |
| Quantity per pack | 1 pc(s) |
|---|
| AC adapter included | Yes |
|---|---|
| Included power plug types | AU, UK, NA |

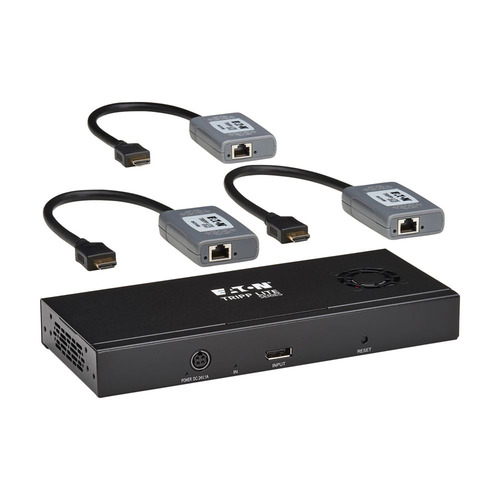

| Packaging content | External power supply (Input: 100–240V, 50/60 Hz, 0.6A; Output: 24V 1A) with 4.5 ft. cord (4) International plug adapters (North America, Europe, U.K., Australia) (3) HDMI pigtail receivers B156E-003-H8K-K 3-Port DisplayPort to HDMI Multi-Monitor Splitter Mounting hardware Installation guide |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Compliance certificates | Federal Communications Commission (FCC), UKCA, CE, WEEE, RoHS, TAA |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
