Eaton B156E-002-8K-K
View 1 View 2 View 3 View 4 View 5 View 6 View 7 View 8
Eaton

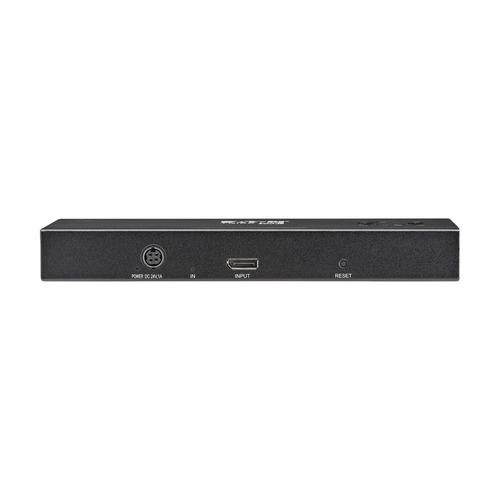

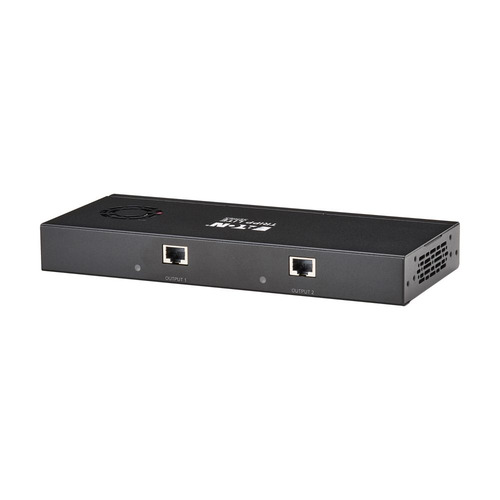

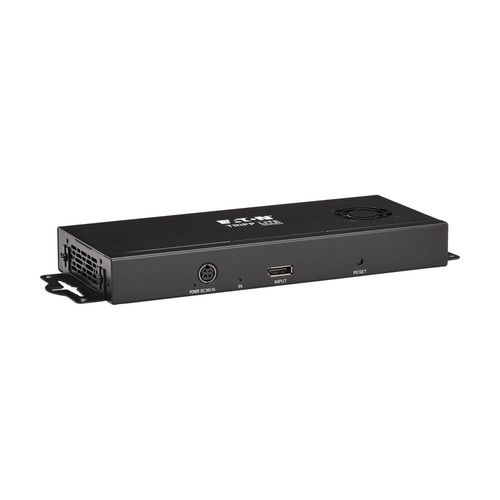

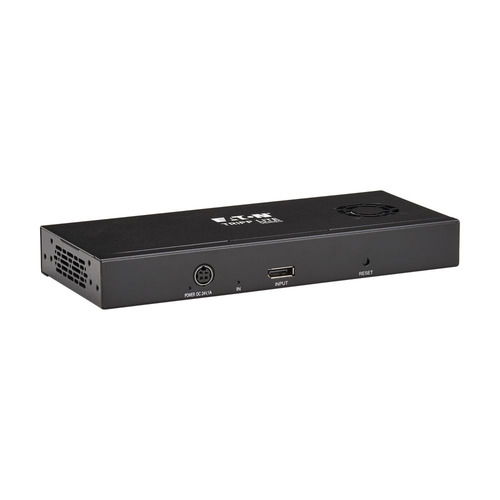

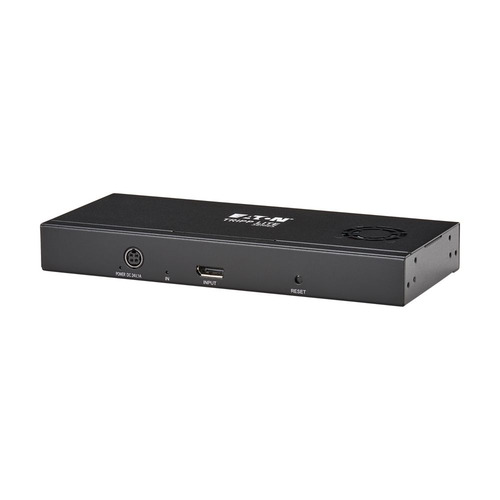

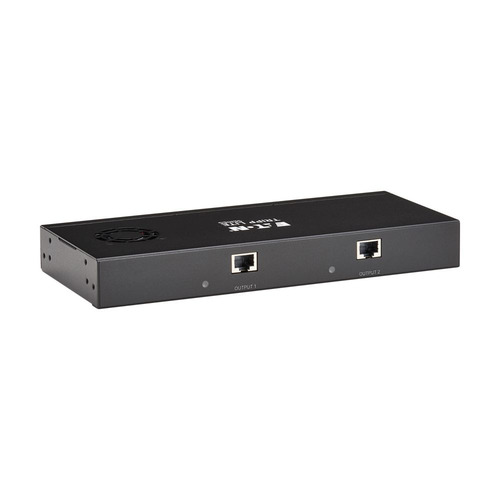

Eaton B156E-002-8K-K video splitter DisplayPort

Part number B156E-002-8K-K

DISPLAYPORT TO DISPLAYPORT EXTENDER KIT OVER CAT6 2-PORT MST

  • Supports UHD resolutions up to 8K @ 60 Hz (4:4:4) in video wall mode
  • Transmits in mirrored, extended and video wall modes for advanced digital signage
  • Power over Cable (PoC) technology provides power to the receivers via Cat6 cable
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • Ready for plug-and-play operation with no additional software or drivers needed
Manufacturer
Eaton
Part number
B156E-002-8K-K
Condition
New
Category
Audio/Video Devices › Home Stereo/Theater Equipment

Specifications

Ports & interfaces
Video port typeDisplayPort
Video outDisplayPort
Video ports quantity2
Features
Housing materialAcrylonitrile butadiene styrene (ABS)
Maximum resolution7680 x 2160 pixels
3DYes
Maximum operating distance70 m
Colour depth12 bit
Maximum refresh rate60 Hz
HDCP version1.4
High Dynamic Range (HDR) supportedYes
HDCPYes
Connector contacts platingNickel/Gold
LED indicatorsSignal, Power
Number of displays supported2
Power
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (typical)26.5 W
Weight & dimensions
Width235 mm
Depth100 mm
Height29.7 mm
Weight220 g
Packaging data
Package typeBox
Packaging content
AC adapter includedYes

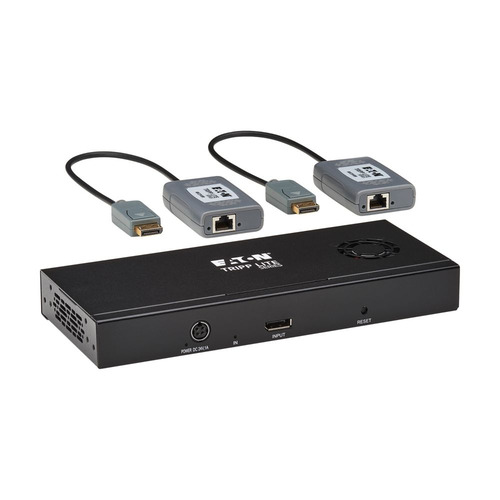

Packaging contentMounting hardware B156E-002-8K-K 2-Port DisplayPort to DisplayPort Multi-Monitor Splitter (4) International plug adapters (North America, Europe, U.K., Australia) (2) DisplayPort pigtail receivers Installation guide External power supply (Input: 100–240V, 50/60 Hz, 0.6A; Output: 24V 1A) with 4.5 ft. cord
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 85%
Technical details
Compliance certificatesRoHS, CE, WEEE, UKCA, TAA, Federal Communications Commission (FCC)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
