Products › Input & Output Devices
Eaton

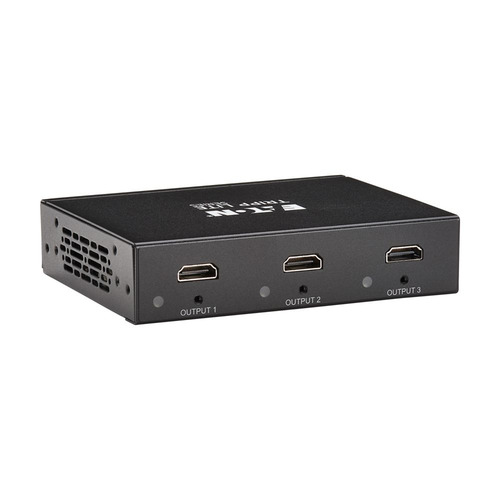

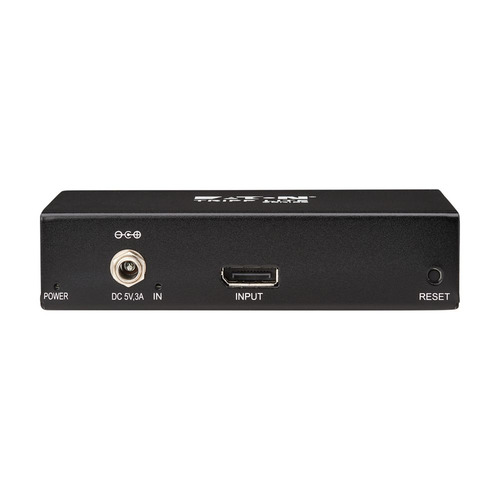

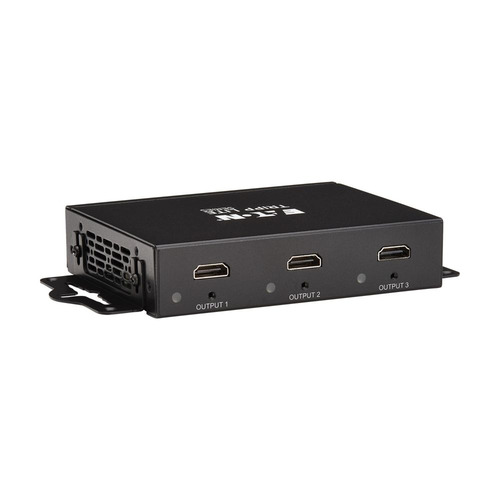

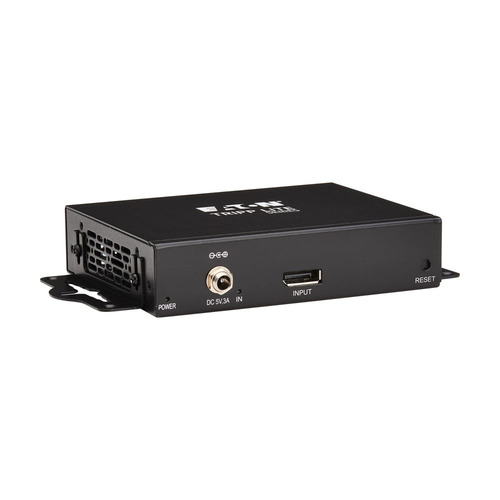

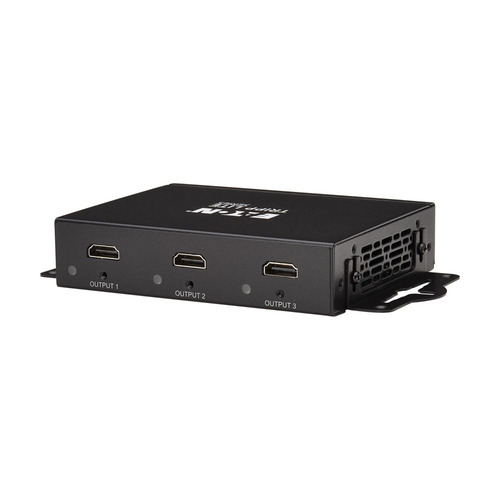

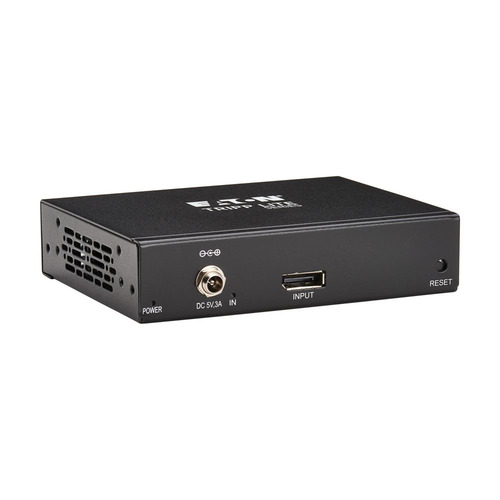

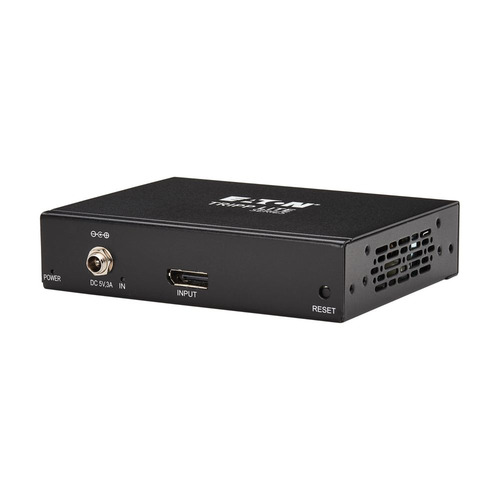

Eaton B156-003-H8K video splitter DisplayPort HDMI
Part number B156-003-H8K
EATON TRIPP LITE SERIES 3-PORT DISPLAYPORT TO HDMI MULTI-MONITOR SPLITTER, MST H
- Supports UHD resolutions up to 8K @ 60 Hz (4:4:4) in video wall mode
- Transmits in mirrored, extended and video wall modes for advanced digital signage
- Complies with HDMI 2.0 standards and backward compatible with earlier versions
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Ready for plug-and-play operation with no additional software or drivers needed
- Manufacturer
- Eaton
- Part number
- B156-003-H8K
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Specifications
| Video port type | DisplayPort |
|---|---|
| Video out | HDMI |
| Video ports quantity | 3 |
| Product colour | Black |
|---|---|
| Maximum resolution | 7680 x 2160 pixels |
| Colour depth | 16 bit |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.4 |
| Cable length | 1.52 m |
| HDCP | Yes |
| Connector contacts plating | Nickel/Gold |
| Plug and Play | Yes |
| LED indicators | Signal, Power |
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 26.5 W |
| Width | 128 mm |
|---|---|
| Depth | 100 mm |
| Height | 29.7 mm |
| Weight | 90 g |
| AC adapter included | Yes |
|---|---|
| Included power plug types | AU, EU, UK |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Compliance certificates | UKCA, CE, TAA, Federal Communications Commission (FCC), RoHS, WEEE |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
