Overview
Transmits Video to Multiple Displays Simultaneously

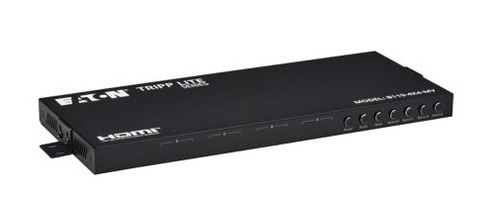

This compact unit splits a video signal for display on multiple monitors, projectors or televisions at the same time. Ideal for offices, conference rooms, lecture halls, trade shows, retail settings and other digital signage applications, this splitter supports video resolutions up to {MaxResolution}. It is compatible with all major operating systems. The plug-and-play splitter comes ready to connect right out of the package and requires no additional software.
Specifications
Features
| Product type | AV matrix switcher |
|---|
| Data transfer rate | 10.2 Gbit/s |
|---|
| Maximum pixel clock | 297 MHz |
|---|
| Maximum TMDS clock | 297 MHz |
|---|
| Maximum resolution | 3840 x 2160 pixels |
|---|
| Bandwidth | 10.2 Gbit/s |
|---|
| Crosspoint size | 4 x 4 |
|---|
| Audio channels | 2 |
|---|
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
|---|
| HDCP | Yes |
|---|
| No Signal Latency | Yes |
|---|
| No video compression | Yes |
|---|
| Firmware upgradeable | Yes |
|---|
| Extended display identification data (EDID) | Yes |
|---|
| EDID management | Yes |
|---|
| EDID emulation (TX) | Yes |
|---|
| Number of layers per screen | 4 |
|---|
| Audio formats supported | LPCM, AC3, DTS |
|---|
| Supported chroma subsampling | 4:2:2, 4:4:4 |
|---|
Design
| Housing colour | Black |
|---|
| Housing material | Metal |
|---|
| Control type | Buttons, Remote |
|---|
| Cooling type | Passive |
|---|
| LED indicators | Yes |
|---|
| Remote control included | Yes |
|---|
| Rubber feet | Yes |
|---|
Display
| Built-in display | No |
|---|
Ports & interfaces
| HDMI input ports quantity | 4 |
|---|
| HDMI output ports quantity | 4 |
|---|
| HDMI version | 1.4 |
|---|
| Digital audio optical out | 1 |
|---|
| USB connector type | Micro-USB B |
|---|
| USB ports quantity | 1 |
|---|
| RS-232 ports | 1 |
|---|
| Remote (IR) output | 1 |
|---|
| Remote (IR) input | 1 |
|---|
| Headphone connectivity | 3.5 mm |
|---|
| Headphone outputs | 1 |
|---|
| DC-in jack | Yes |
|---|
Power
| Power consumption (max) | 10 W |
|---|
| Power supply location | External |
|---|
| AC input voltage | 100-240 V |
|---|
| AC input frequency | 50-60 Hz |
|---|
| Input current | 0.4 A |
|---|
| Output power | 10 W |
|---|
| Output current | 2000 mA |
|---|
| Output voltage | 5 V |
|---|
| Number of power supply units | 1 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|
| Storage temperature (T-T) | -10 - 80 °C |
|---|
| Operating relative humidity (H-H) | 5 - 90% |
|---|
| Storage relative humidity (H-H) | 5 - 90% |
|---|
| Heat dissipation | 34.12 BTU/h |
|---|
| Heat dissipation (max) | 34.12 BTU/h |
|---|
Weight & dimensions
| Width | 110 mm |
|---|
| Depth | 270 mm |
|---|
| Height | 27 mm |
|---|
| Weight | 540 g |
|---|
Packaging content
| Cables included | USB Type-A to Micro USB-B |
|---|
| Manual | Yes |
|---|
| Mounting brackets included | Yes |
|---|
| AC adapter included | Yes |
|---|
| Screws included | Yes |
|---|
| IR receiver included | Yes |
|---|
