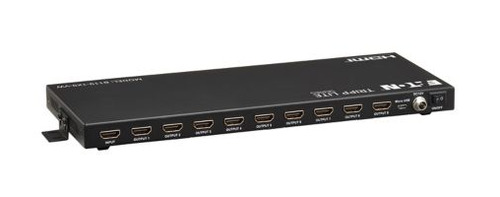

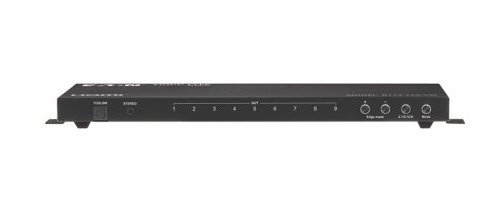

Eaton B119-1X9-VW video splitter HDMI
Part number B119-1X9-VW
1X9 VIDEO WALL CONTROLLER 4K 30 1 HDMI INPUT 9 HDMI OUTPUTS 4:4:4
- Supports HDMI input with UHD resolutions up to 4K @ 30 Hz (4:4:4)
- Captures, converts, routes and distributes 4K audio/video to a 1080p video wall
- Plug-and-play operation with no software required for easy, immediate installation
- Allows flexible control via front-panel buttons, IR remote or RS-232 commands
- Edge masking function allows picture border adjustments by adding/removing pixels
- Manufacturer
- Eaton
- Part number
- B119-1X9-VW
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
Overview
Transmits Video to Multiple Displays Simultaneously
This compact unit splits a video signal for display on multiple monitors, projectors or televisions at the same time. Ideal for offices, conference rooms, lecture halls, trade shows, retail settings and other digital signage applications, this splitter supports video resolutions up to {MaxResolution}. It is compatible with all major operating systems. The plug-and-play splitter comes ready to connect right out of the package and requires no additional software.
Specifications
| Video port type | HDMI |
|---|---|
| Video out | HDMI |
| Video ports quantity | 10 |
| Consumer Electronics Control (CEC) support | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Metal |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Colour depth | 36 bit |
| HDCP version | 1.3 |
| Extended display identification data (EDID) | Yes |
| HDCP | Yes |
| Connector contacts plating | Nickel |
| Certification | CE Marked FCC Compliant RoHS UKCA WEEE Directive |
| AC input voltage | 100–240 |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 12 W |
| Width | 292 mm |
|---|---|
| Depth | 112 mm |
| Height | 19 mm |
| Weight | 617 g |
| Quantity per pack | 1 pc(s) |
|---|
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
