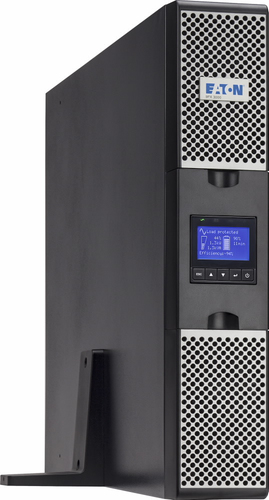

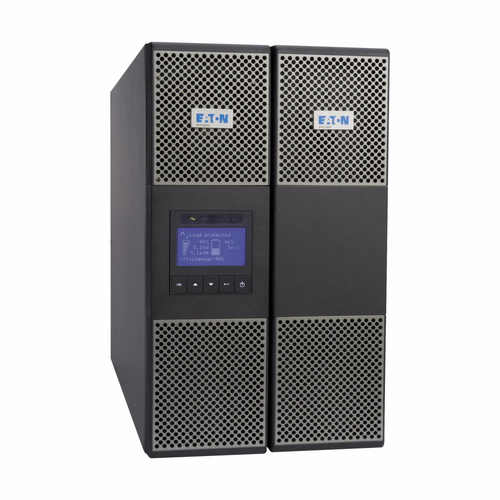

Eaton 9PX3000IRT2UBS uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 10 AC outlet(s)
Part number 9PX3000IRT2UBS
3000VA INTERNATIONAL UNIT C20 8 C13 + 2 C19
Double-conversion (Online)
3 kVA 3000 W
Waveform: Sine
10 AC outlet(s)
Sealed Lead Acid (VRLA) 12 V 9 Ah
Rackmount/Tower Black, Silver
Manufacturer
Eaton
Part number
9PX3000IRT2UBS
Condition
New
Category
Power & Rack Equipment › Rack Equipment
1GPA category
Hardware
Overview
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Specifications
Features
UPS topology
Double-conversion (Online)
Output power capacity
3 kVA
Output power
3000 W
Waveform
Sine
Input operation voltage (min)
100 V
Input operation voltage (max)
276 V
Input frequency
40/70 Hz
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Number of input phases
1
Number of output phases
1
Efficiency
94%
Efficiency (On-line mode)
98%
Power factor
1
Input power factor
0.99
Output power factor
1
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
40 dB
Power protection features
Overdischarge
Ports & interfaces

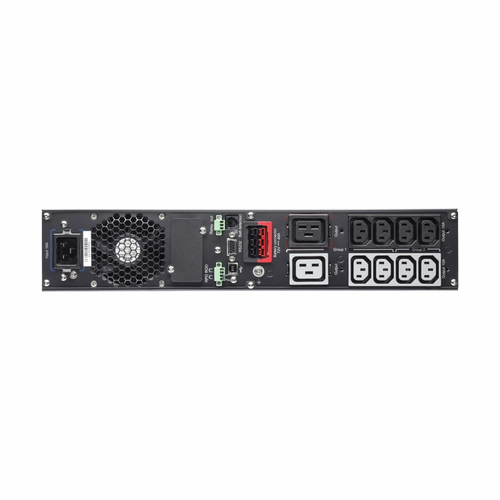

AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
AC outlets quantity
10 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
1
Serial interface
Yes
Serial interface type
RS-232
Serial ports quantity
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
9 Ah
Battery voltage
12 V
Number of batteries supported
6
Typical backup time at full load
3 min
Automatic battery test
Yes
Design

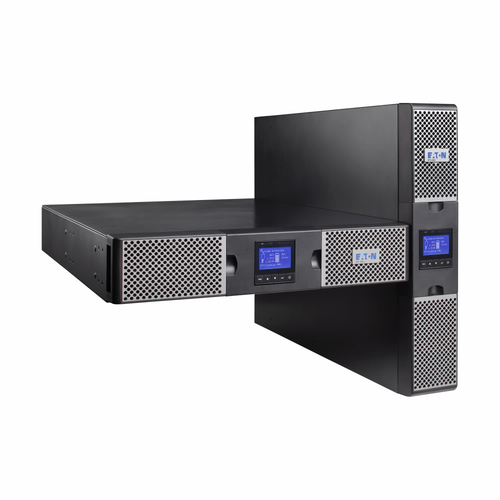

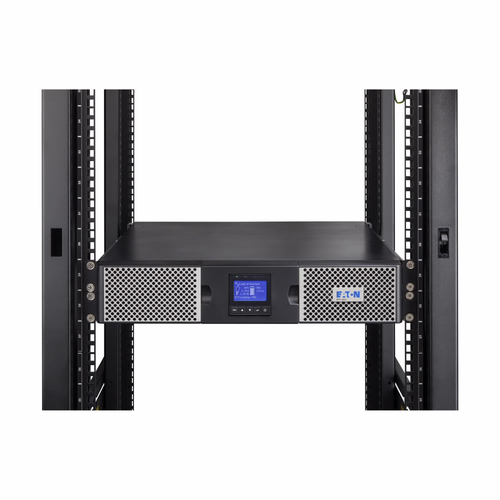

Form factor
Rackmount/Tower
Cable length
1.8 m
Product colour
Black, Silver

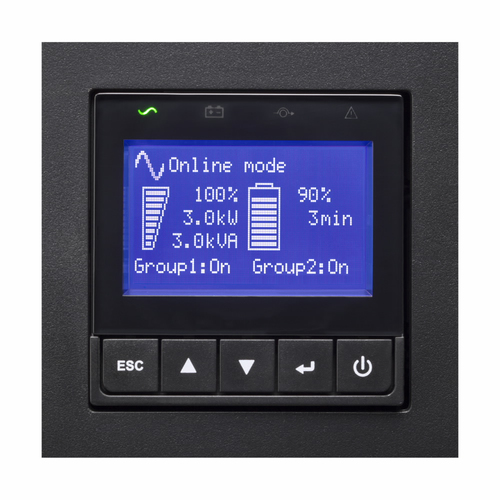

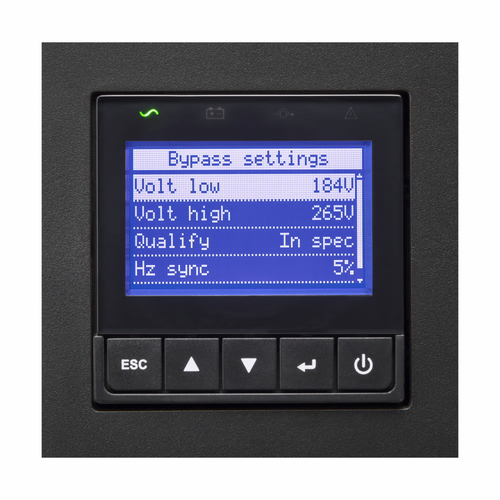

Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 96%
Operating altitude
0 - 3000 m
Certificates
Compliance certificates
CE
Certification
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
cULus
EAC
Packaging content
Rack mount kit
Yes
Cables included
Input power cable, USB cable
Quick installation guide
Yes
Sustainability
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR
Weight & dimensions
Width
580 mm
Depth
770 mm
Height
290 mm
Weight
26.3 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
