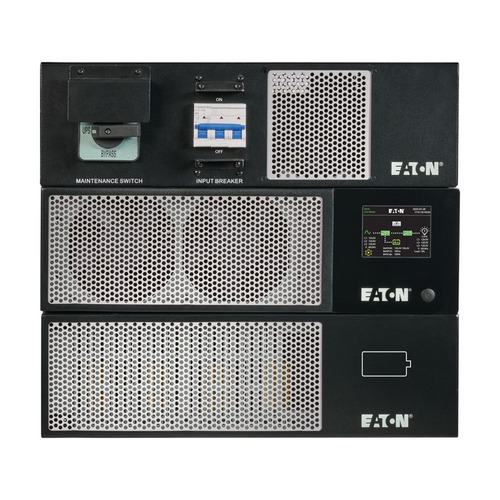

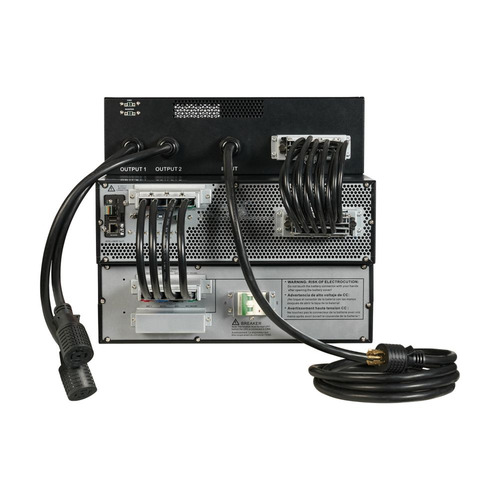

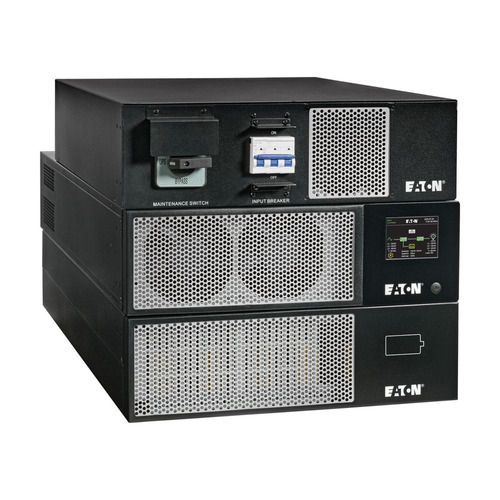

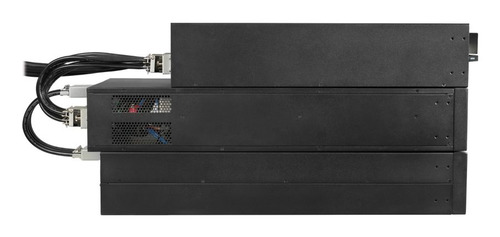

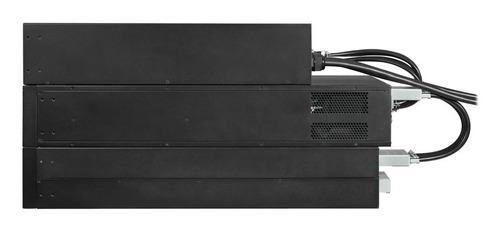

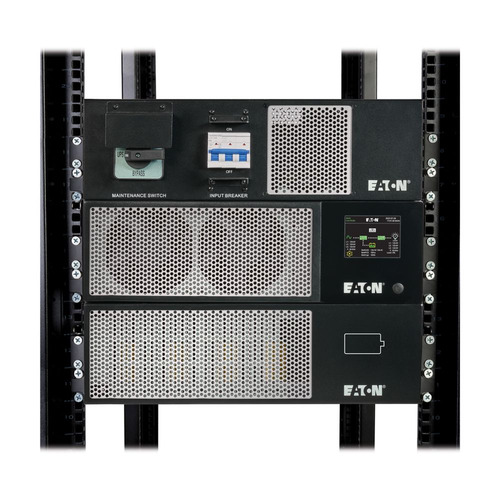

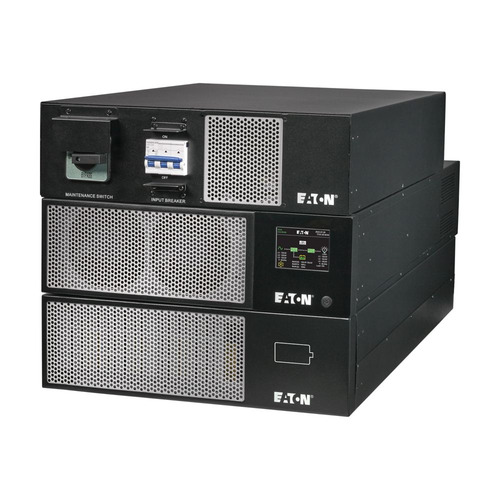

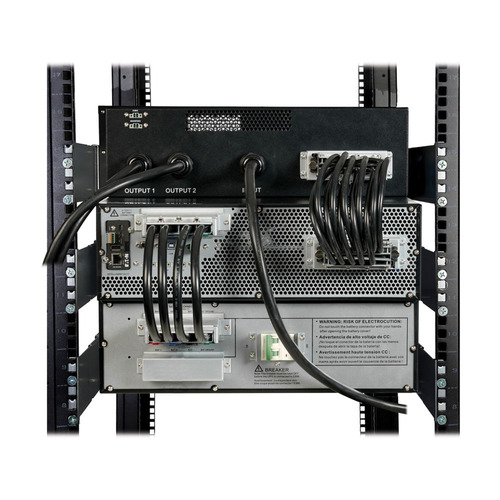

Eaton 93PX5KINDA uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 5000 W 2 AC outlet(s)

Part number 93PX5KINDA

EATON 93PX 5000VA 5000W 208V 3-PHASE ONLINE DOUBLE-CONVERSION UPS BUNDLE - L21-2

Innovative quick-connect design for easy plug-and-play deployment and service
Corded AC input and output for convenient utility power and PDU connections
Unity power factor (1.0) and high power density to save data center white space
Cybersecure network card enables full remote access and control 24/7
Maintenance bypass keeps equipment operational during UPS service or replacement

Manufacturer: Eaton
Part number: 93PX5KINDA
Condition: New
Category: Power & Rack Equipment › Power Equipment
1GPA category: Hardware

Overview

93PX 5000VA 5000W 208V 3-Phase Online Double-Conversion UPS Bundle - L21-20P Input, 2x L21-20R Output, Maintenance Bypass, Cybersecure Industrial Gateway Card, Extended Run, 9U, TAA (93PX5KINDA)

Specifications

Features
UPS topology	Double-conversion (Online)
Output power capacity	5 kVA
Output power	5000 W
Waveform	Pure sine
Input operation voltage (min)	120 V
Input operation voltage (max)	208 V
Input frequency	50/60 Hz
Output operation voltage (min)	120 V
Output operation voltage (max)	208 V
Output frequency	50/60 Hz
Response time	10 ms
Number of input phases	3
Number of output phases	3
Input power factor	1
Crest factor	3:1

Ports & interfaces
AC outlet types	NEMA L21-20
AC outlets quantity	2 AC outlet(s)

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery life (max)	6 year(s)

Design
Form factor	Rackmount
Rack capacity	9U
Product colour	Black

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%

Certificates
Compliance certificates	TAA

Weight & dimensions
Width	437.9 mm
Depth	805.4 mm
Height	391.9 mm
Weight	129.5 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
