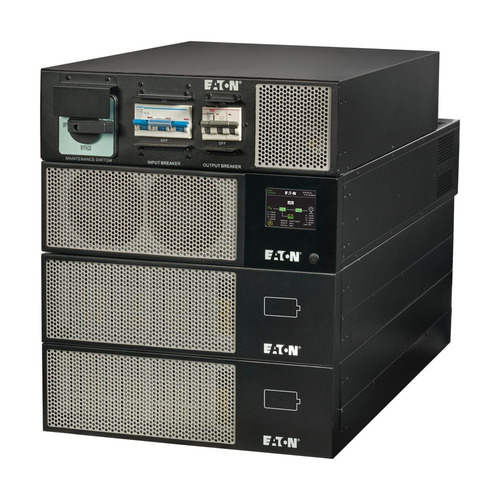

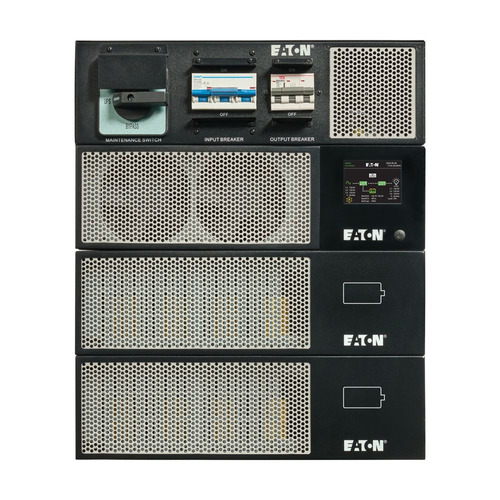

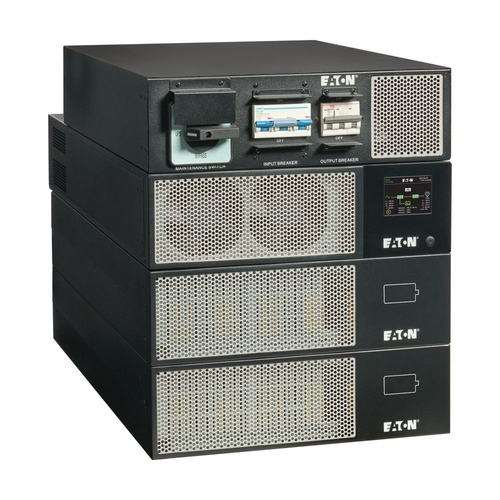

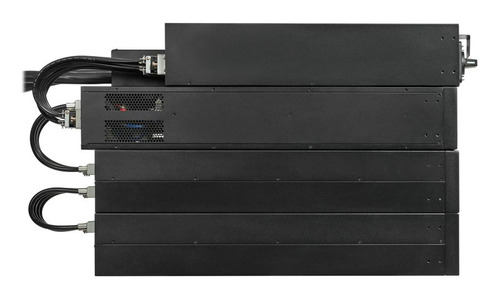

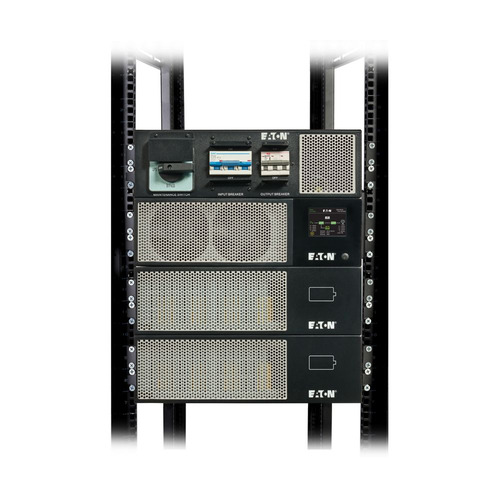

Eaton 93PX20KIND uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
Part number 93PX20KIND
EATON 93PX 20000VA 20000W 208V 3PHASE ONLINE UPS HARDWIRED INPUT IEC 309 60A OUT
- Innovative quick-connect design for easy plug-and-play deployment and service

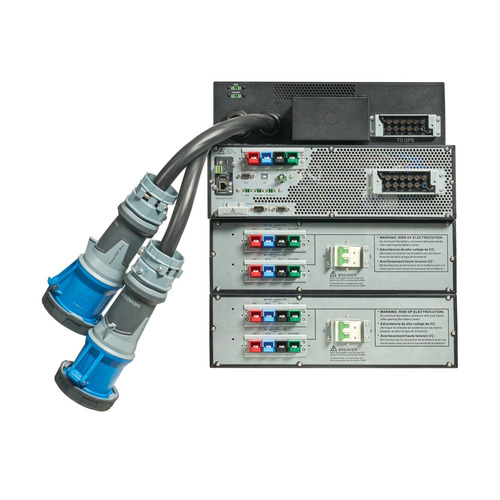

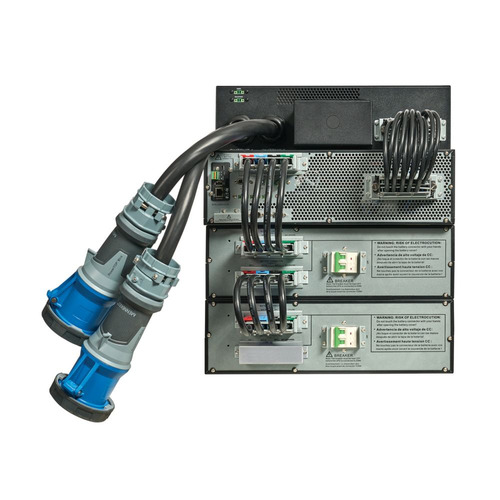

- Corded AC output for convenient PDU connections
- Unity power factor (1.0) and high power density to save data center white space
- Cybersecure network card enables full remote access and control 24/7
- Maintenance bypass keeps equipment operational during UPS service or replacement
- Manufacturer
- Eaton
- Part number
- 93PX20KIND
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview

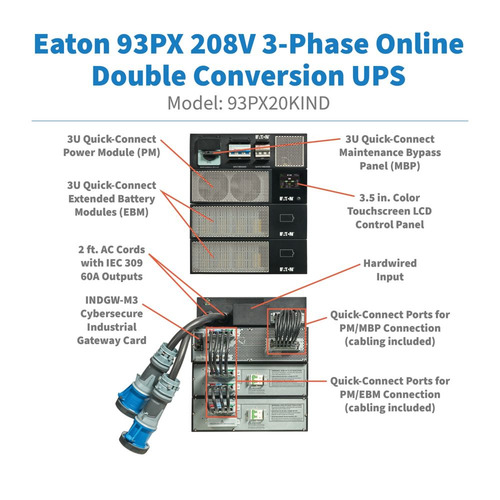

93PX 20000VA 20000W 208V 3-Phase Online Double-Conversion UPS - Hardwired Input, IEC 309 60A Output, Maintenance Bypass, Cybersecure Industrial Gateway Card, Extended Run, 12U (93PX20KIND)
Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 208 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 208 V |
| Response time | 10 ms |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 1 |
| Output power factor | 1 |
| Crest factor | 3:1 |
| Power plug | Hardwire |
|---|
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery life (max) | 6 year(s) |
| Form factor | Rackmount |
|---|---|
| Rack capacity | 12U |
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Compliance certificates | UL |
|---|
| Width | 438 mm |
|---|---|
| Depth | 819.2 mm |
| Height | 522.5 mm |
| Weight | 318.2 kg |
