Eaton 93PX20KIMBNDG uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W

Part number 93PX20KIMBNDG

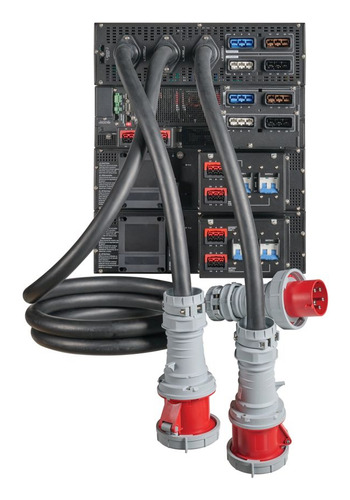

EATON 93PX 20000VA 20000W 400V 3-PHASE ONLINE UPS IEC 309 60A INPUT/OUTPUT, MAIN

Innovative quick-connect design for easy plug-and-play deployment and service
Up to 98.6% energy efficiency in ECO mode to save energy and operating costs
Unity power factor (1.0) and high power density to save data center white space
Cybersecure industrial network card enables full remote access and control 24/7
Maintenance bypass keeps equipment operational during UPS service or replacement

Manufacturer: Eaton
Part number: 93PX20KIMBNDG
Condition: New
Category: Power & Rack Equipment › Power Equipment
1GPA category: Hardware

Overview

93PX 20000VA 20000W 400V 3-Phase Online Double-Conversion UPS - IEC 309 60A Input/Output, Maintenance Bypass, Cybersecure Industrial Gateway Card, Extended Run, 12U

Specifications

Features
UPS topology	Double-conversion (Online)
Output power capacity	20 kVA
Output power	20000 W
Waveform	Pure sine
Input operation voltage (min)	230 V
Input operation voltage (max)	400 V
Input frequency	50/60 Hz
Output operation voltage (min)	230 V
Output operation voltage (max)	400 V
Maximum current	30.3 A
Response time	10 ms
Number of input phases	3
Number of output phases	3
Input power factor	0.9
Output power factor	1
Crest factor	3:1

Battery
Battery technology	Sealed Lead Acid (VRLA)

Design
Form factor	Rackmount
Rack capacity	12U
Product colour	Black
Display type	LCD

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	0 - 95%

Certificates
Compliance certificates	UL

Weight & dimensions
Width	437.9 mm
Depth	713.7 mm
Height	518.2 mm
Weight	178 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
