Eaton

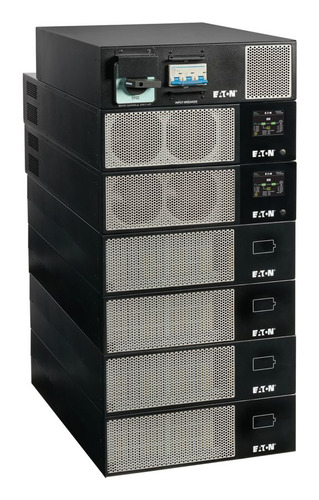

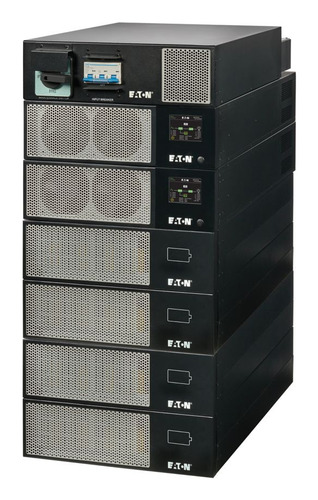

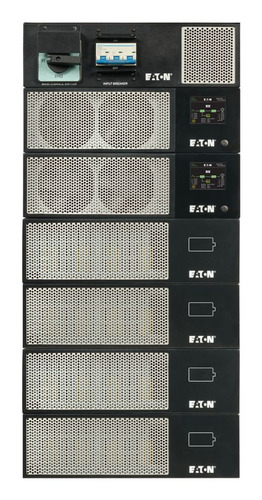

Eaton 93PX20KHWINDPAR uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
Part number 93PX20KHWINDPAR
EATON 93PX 20000VA 20000W N+1 208V 3-PHASE ONLINE UPS HARDWIRED INPUT/OUTPUT MAI
- Innovative quick-connect design for easy plug-and-play deployment and service
- Up to 97% energy efficiency in ECO mode to save energy and operating costs
- Unity power factor (1.0) and high power density to save data center white space
- Cybersecure network cards allow full UPS remote access and control 24/7
- Parallel maintenance bypass panel enables N+1 redundancy to maintain uptime
- Manufacturer
- Eaton
- Part number
- 93PX20KHWINDPAR
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
93PX 20000VA 20000W N+1 208V 3-Phase Online Double-Conversion UPS - Hardwired Input/Output, Maintenance Bypass, Cybersecure Industrial Gateway Cards, Extended Run, 21U (93PX20KHWINDPAR)
Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|
| Output power capacity | 20 kVA |
|---|
| Output power | 20000 W |
|---|
| Waveform | Pure sine |
|---|
| Input operation voltage (min) | 120 V |
|---|
| Input operation voltage (max) | 208 V |
|---|
| Input frequency | 50/60 Hz |
|---|
| Output operation voltage (min) | 120 V |
|---|
| Output operation voltage (max) | 208 V |
|---|
| Response time | 10 ms |
|---|
| Number of input phases | 3 |
|---|
| Number of output phases | 3 |
|---|
| Input power factor | 1 |
|---|
| Output power factor | 1 |
|---|
| Crest factor | 3:1 |
|---|
Ports & interfaces
| AC outlet types | Hardwire |
|---|
| Power plug | Hardwire |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery life (max) | 6 year(s) |
|---|
Design
| Form factor | Rackmount |
|---|
| Rack capacity | 21U |
|---|
| Product colour | Black |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 60 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
Certificates
| Compliance certificates | UL |
|---|
Weight & dimensions
| Width | 438 mm |
|---|
| Depth | 819.2 mm |
|---|
| Height | 914.4 mm |
|---|
| Weight | 412.5 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
