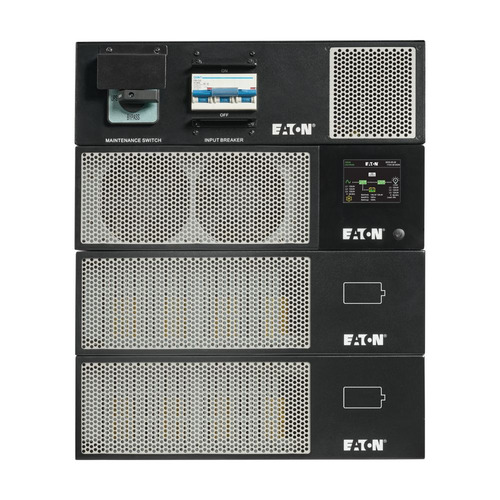

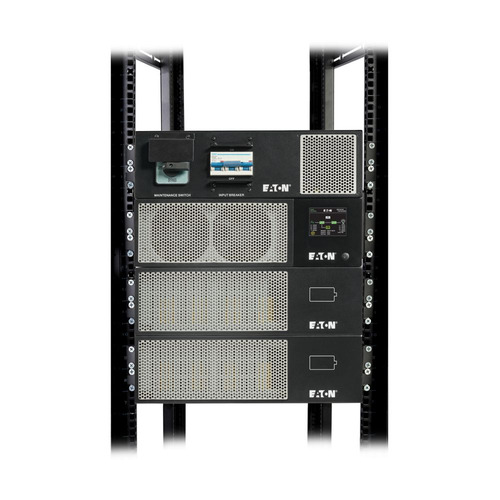

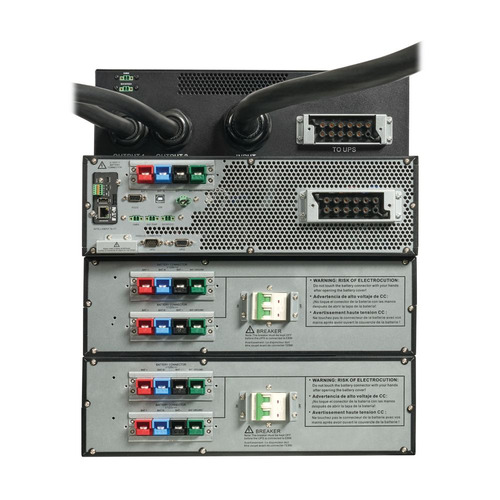

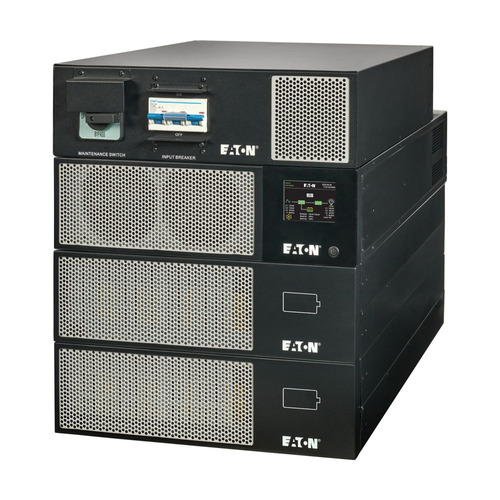

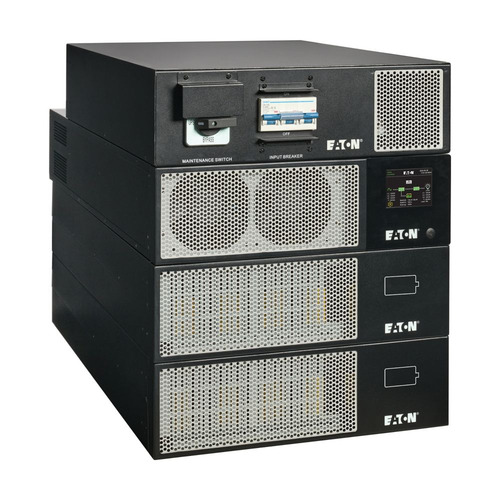

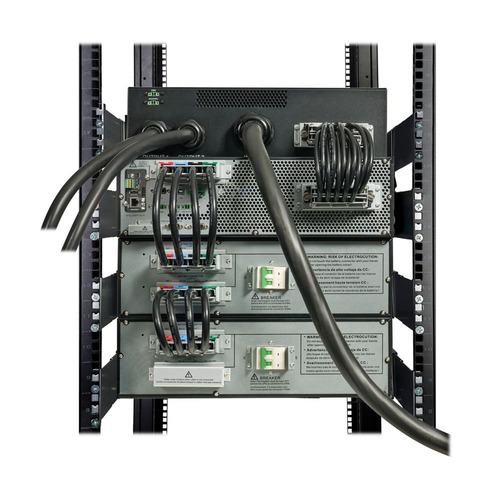

Eaton 93PX15KIND uninterruptible power supply (UPS) Double-conversion (Online) 15 kVA 15000 W

Part number 93PX15KIND

EATON 93PX 15000VA 15000W 208V 3-PHASE ONLINE UPS IEC 309 60A INPUT/OUTPUT MAINT

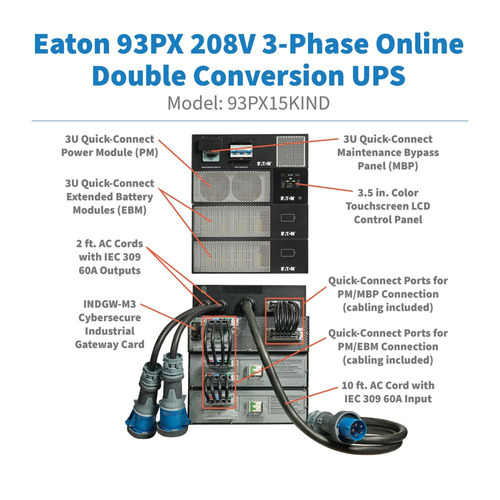

Innovative quick-connect design for easy plug-and-play deployment and service

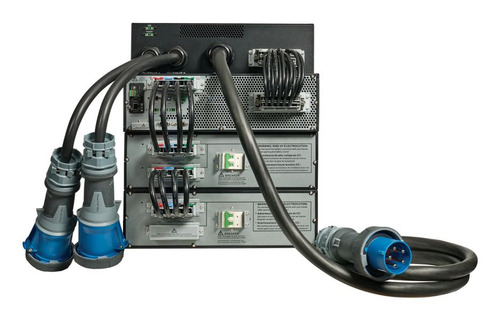

Corded AC input and output for convenient utility power and PDU connections
Unity power factor (1.0) and high power density to save data center white space
Cybersecure network card enables full remote access and control 24/7
Maintenance bypass keeps equipment operational during UPS service or replacement

Manufacturer: Eaton
Part number: 93PX15KIND
Condition: New
Category: Power & Rack Equipment › Power Equipment
1GPA category: Hardware

Overview

93PX 15000VA 15000W 208V 3-Phase Online Double-Conversion UPS - IEC 309 60A Input/Output, Maintenance Bypass, Cybersecure Industrial Gateway Card, Extended Run, 12U (93PX15KIND)

Specifications

Features
UPS topology	Double-conversion (Online)
Output power capacity	15 kVA
Output power	15000 W
Waveform	Pure sine
Input operation voltage (min)	120 V
Input operation voltage (max)	208 V
Input frequency	50/60 Hz
Output operation voltage (min)	120 V
Output operation voltage (max)	208 V
Output frequency	60 Hz
Maximum current	60 A
Response time	10 ms
Number of input phases	3
Number of output phases	3
Output power factor	1
Crest factor	3:1

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery life (max)	6 year(s)

Design
Form factor	Rackmount
Rack capacity	12U
Product colour	Black

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%

Certificates
Compliance certificates	UL

Weight & dimensions
Width	438 mm
Depth	819.1 mm
Height	522.5 mm
Weight	219.8 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
