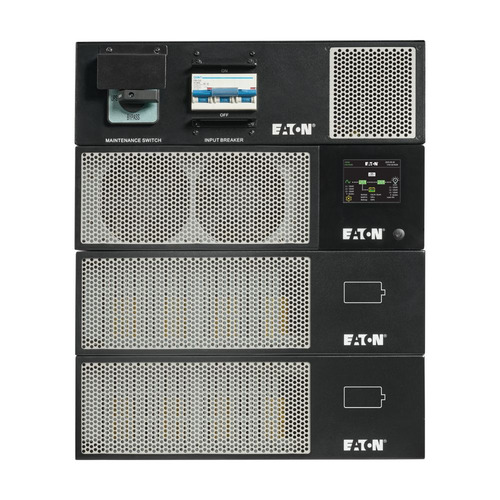

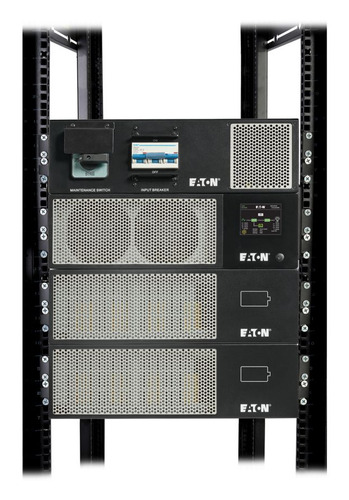

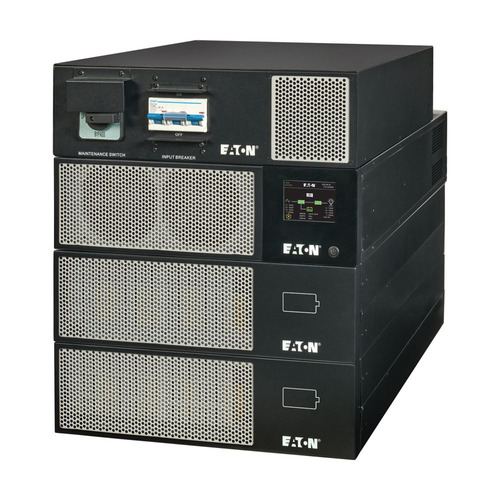

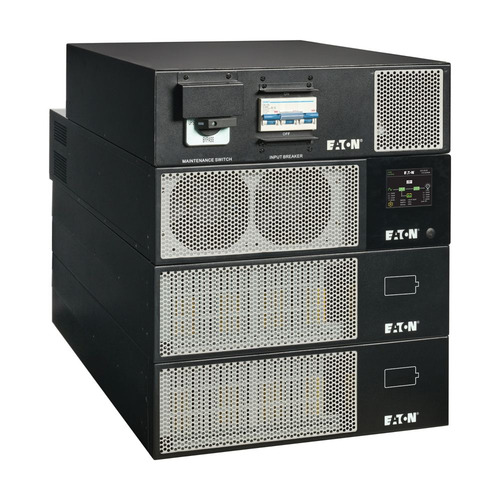

Eaton 93PX13KIND uninterruptible power supply (UPS) Double-conversion (Online) 13 kVA 2 AC outlet(s)

Part number 93PX13KIND

93PX 13000VA/W 208V 3PHASE UPS 60A BYPASS CYBERSECURE CARD 12U

Innovative quick-connect design for easy plug-and-play deployment and service

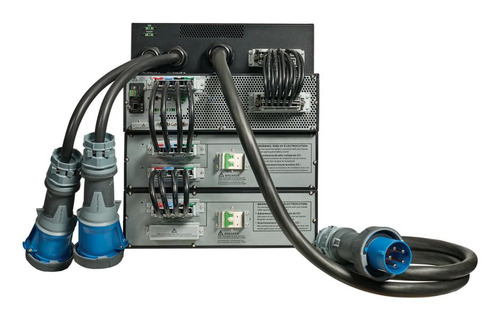

Corded AC input and output for convenient utility power and PDU connections
Unity power factor (1.0) and high power density to save data center white space
Cybersecure network card enables full remote access and control 24/7
Maintenance bypass keeps equipment operational during UPS service or replacement

Manufacturer: Eaton
Part number: 93PX13KIND
Condition: New
Category: Power & Rack Equipment › Power Equipment
1GPA category: Hardware

Overview

93PX 13000VA 13000W 208V 3-Phase Online Double-Conversion UPS - IEC 309 60A Input/Output, Maintenance Bypass, Cybersecure Industrial Gateway Card, Extended Run, 12U (93PX13KIND)

Specifications

Features
UPS topology	Double-conversion (Online)
Output power capacity	13 kVA
Waveform	Pure sine
Input operation voltage (min)	120 V
Input operation voltage (max)	208 V
Input frequency	50/60 Hz
Output frequency	60 Hz
Output voltage regulation	1%
Maximum current	60 A
Number of input phases	3
Number of output phases	3
Input power factor	1
Output power factor	1
Crest factor	3:1

Ports & interfaces
AC outlets quantity	2 AC outlet(s)
Number of output IEC jumpers	2

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery life (max)	6 year(s)

Design
Form factor	Rackmount
Rack capacity	12U
Product colour	Black

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	0 - 95%

Technical details
Network management	Yes
Battery included	Yes

Weight & dimensions
Width	438 mm
Depth	780 mm
Height	522.5 mm
Weight	219.8 kg
