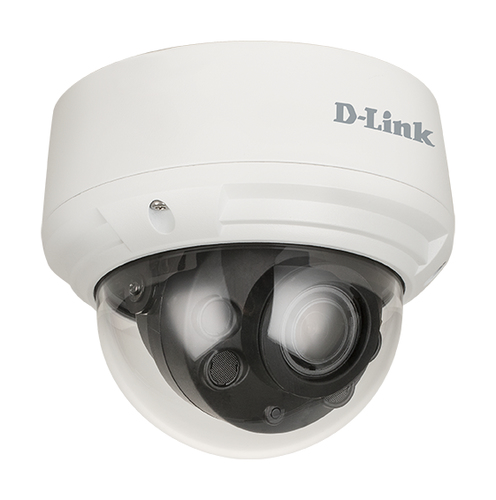

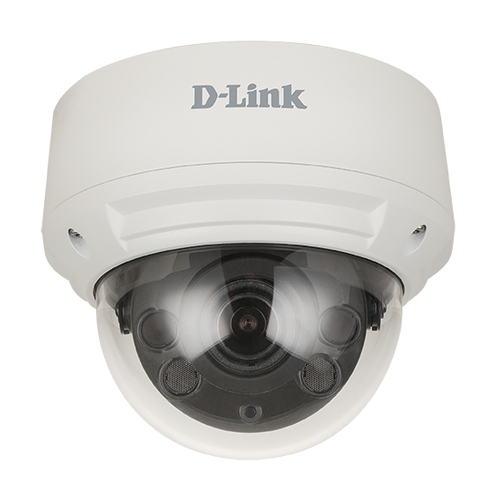

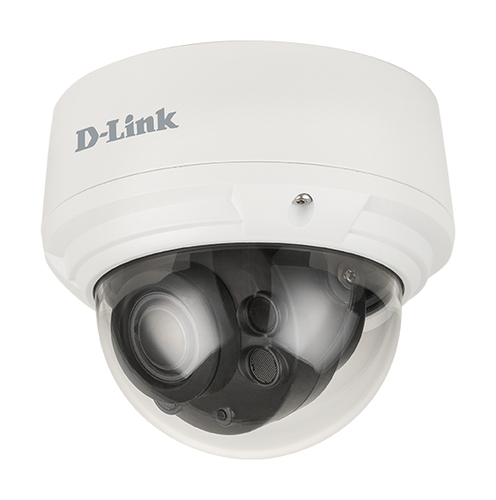

D-Link 8 Megapixel H.265 Outdoor Dome Camera DCS‑4618EK
Part number DCS-4618EK
D-LINK DCS-4618EK 8 MEGAPIXEL H.265 OUTDOOR DOME CAMERA
- 4K Ultra HD 8-megapixel sensor
- Vandal-proof IK10-housing
- IP66 Weather-Resistant
- Motorised varifocal lens
- 30m Night Vision with WDR & LowLight+
- PoE for easy installation
- Easy remote management with D-ViewCam
- Manufacturer
- D-LINK SYSTEMS
- Part number
- DCS-4618EK
- Condition
- New
- Category
- Physical Security › Video Surveillance
- 1GPA category
- Hardware
Overview
Professional Surveillance in Vandal‑proof 4K Ultra High Definition
An 8 Megapixel lens and state-of-the-art image enhancement features, packed into a secure and compact form factor that’s ready to face the outdoors.
4K Ultra HD Resolution
8-megapixel sensor with 4K Ultra HD resolution up to 3840 x 2160 for detailed footage
Vandal-proof
IK10-rated housing for protection against physical impacts
Weather-Resistant
IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C
Day & night surveillance
Built-in IR LED illuminators with 30-meter range for pitch-black areas
PoE Capable
Supports 802.3af PoE for flexible and simple installation
Storage options
Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or NAS
Wide Dynamic Range with LowLight+
Improved image quality in high-contrast conditions with WDR & optimised for low-light environments
Free Video Management Software
Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive
High quality videos, whatever the lighting
Video resolutions of up to 3840 x 2160 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions. The DCS-4618EK offers unbelievable flexibility to be manually angled to provide surveillance where you need it the most.
Viewing Angles
(H) 108.6° - 35°
(V) 56° - 21°
(D) 125° - 42°
High Quality Lens
Motorised varifocal 3.3 - 12 mm lens with an F1.4 aperture

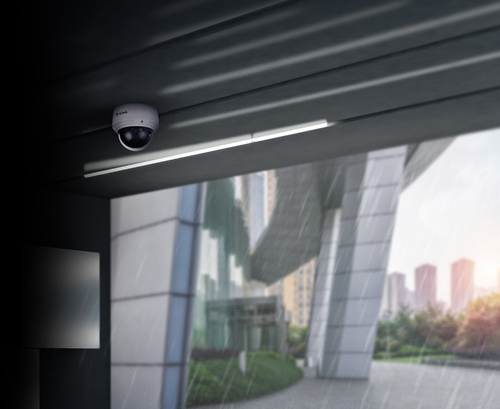

Versatile Monitoring in All Environments
IP66 certification ensures the camera is completely protected from dust and water in any environment and the IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.
Weather resistant
Withstands rain and moisture with a wide operating temperature range of -30°C to 50°C.
Specifications
| Type | IP security camera |
|---|---|
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE, FCC, RCM |
| Form factor | Dome |
|---|---|
| Mounting type | Ceiling |
| Product colour | White |
| Protection features | Vandal proof |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Camera pan control | Yes |
|---|---|
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 108.6° |
| Lens viewing angle, vertical | 56° |
| Lens viewing angle, diagonal | 125° |
| Tilt angle range | 10 - 90° |
| Pan range | 0 - 355° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Number of sensors | 1 |
|---|---|
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Sensor type | CMOS |
| Digital zoom | 18x |
|---|---|
| Focal length range | 3.3 - 12 mm |
| Maximum aperture number | 1.4 |
| Closest focusing distance | 0.5 m |
| Night vision | Yes |
|---|---|
| Night vision distance | 30 m |
| LED type | IR |
| Maximum resolution | 3840 x 2160 pixels |
|---|---|
| Total megapixels | 8 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Video recording | Yes |
| Frame rate | 20 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Privacy masking | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | IPv4, HTTP/HTTPS,RTSP/RTP/RTCP, TCP, UDP, DHCP, DNS, DDNS, NTP, FTP, SMTP, Client, ONVIF Profile S compliant, ARP, ICMP, PPPoE, SNMP v1/v2c/v3 |
| Wi-Fi | No |
| Bluetooth | No |
| Built-in HDD | No |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Video motion detection | Yes |
|---|---|
| Alert notification type | E-mail, Snapshot alert message |
| Motion sensor | Yes |
| Web-based management | Yes |
|---|---|
| Firmware upgradeable | Yes |
| Reset button | Yes |
| Power source type | AC, DC, PoE |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 8 W |
| DC output voltage | 12 |
| DC output current | 1.5 A |
| Operating temperature (T-T) | -30 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
|---|
| Width | 130 mm |
|---|---|
| Depth | 130 mm |
| Height | 112 mm |
| Weight | 750 g |
| Number of cameras | 1 |
|---|
| Harmonized System (HS) code | 85258900 |
|---|
