CyberPower SM020KAMFA uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W

Overview

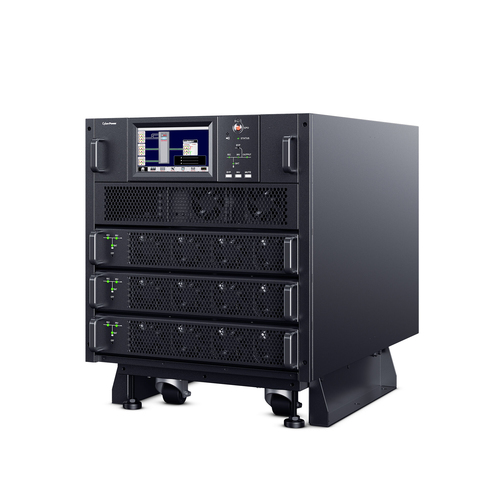

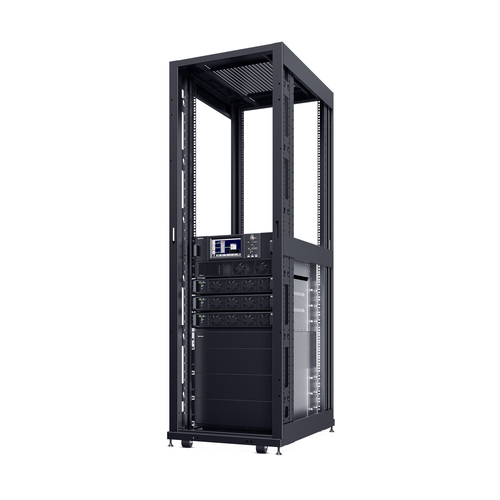

The CyberPower SM020KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.

The SM020KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7” color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus, hot-swappable power modules, battery and, bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers, the SM020KAMFA Smart App Online 3-Phase Modular UPS System assures reliable, high-quality AC power and includes a One-Year Limited Warranty.

Double-Conversion Topology

Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

Sine Wave Output

Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

Full Matrix LCD Touch Screen

Simple to set up, the user-friendly 7” color touchscreen display provides key status indicators at-a-glance with alerts of potential problems that could impact equipment and cause downtime. Screen tilts up to 22 degrees for easy viewing.

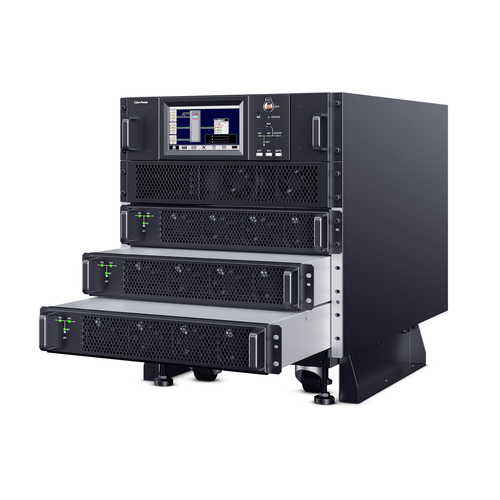

Hot-Swappable Batteries

Keeps equipment running by eliminating downtime during UPS power maintenance.

N+N Redundancy

Ensures uninterrupted operation if the entire system fails. N+1 redundancy guarantees system availability if one power module fails.

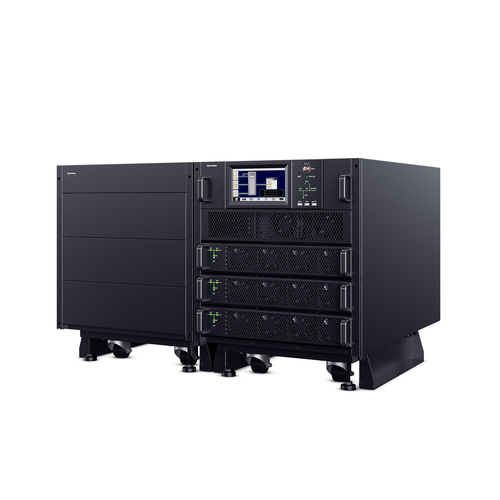

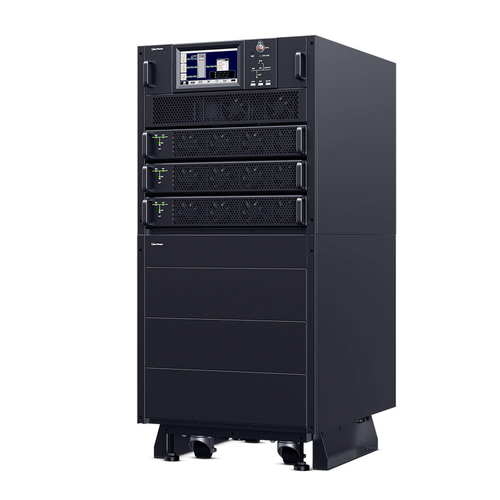

Expandable External Battery Cabinet

Extends runtime by adding space for additional battery modules.

Smart Battery Mangement

Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.

Battery Equalization Technology

Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.

PowerPanel® Business Software

Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.

RMCARD205

Enables remote management of up to 50 clients via a standard web browser, command-line interface (CLI), or network management system (NMS) connection.

Optional Input and Output 175A Circuit Breakers

Ensures power is turned off during service or maintenance and eliminates the risk of unintended powering off.

Upgradable UPS Firmware

Keeps equipment running by eliminating downtime during UPS power maintenance.

Multiple Language Options

The LCD Control Panel can be configured in English or Chinese.

Emergency Power Off (EPO)

Allows the UPS to be shut off in the event of an emergency when the EPO port is connected to an EPO switch.
