Overview

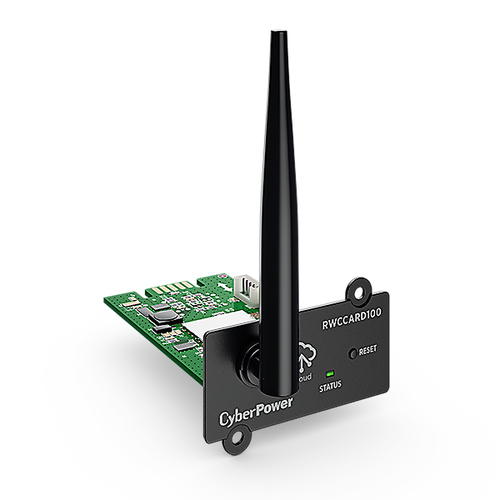

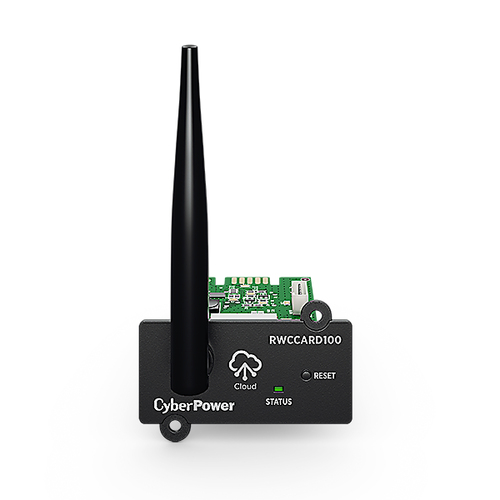

CyberPower RWCCARD100 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the expansion slot on the UPS, users can add the UPS to the PowerPanel® Cloud system, thus enabling remote monitoring and management of the UPS, through a secure web portal or mobile app.
The card is plug-and-play design and features hot-swappable capability, allowing quick and easy installation without interrupting the operation of the UPS. In addition, the card supports user-upgradeable firmware, so users are able to keep the functionality up-to-date with ease.
Specifications
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Interface | WLAN |
|---|
Network
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|---|
| Wi-Fi | Yes |
|---|
| Wi-Fi band | Single-band (2.4 GHz) |
|---|
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
|---|
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
|---|
Design
| Component for | PC |
|---|
| Product colour | Black, Green, Metallic |
|---|
| Internal | Yes |
|---|
| Antenna | Yes |
|---|
| Antenna design | External |
|---|
| Reset button | Yes |
|---|
| Plug and Play | Yes |
|---|
| LED indicators | Activity, Power |
|---|
| Country of origin | China |
|---|
| Certification | CE, FCC Class B, IC Class B, RoHS |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -10 - 50 °C |
|---|
| Operating relative humidity (H-H) | 0 - 90% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
Sustainability
| Sustainability compliance | Yes |
|---|
Weight & dimensions
| Width | 54 mm |
|---|
| Depth | 76.5 mm |
|---|
| Height | 36.1 mm |
|---|
| Weight | 34 g |
|---|
Packaging data
| Package width | 170 mm |
|---|
| Package depth | 60 mm |
|---|
| Package height | 165 mm |
|---|
| Package weight | 300 g |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 8473302000 |
|---|
