Overview

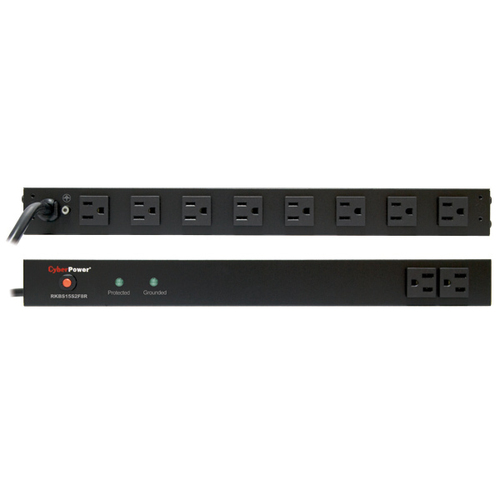

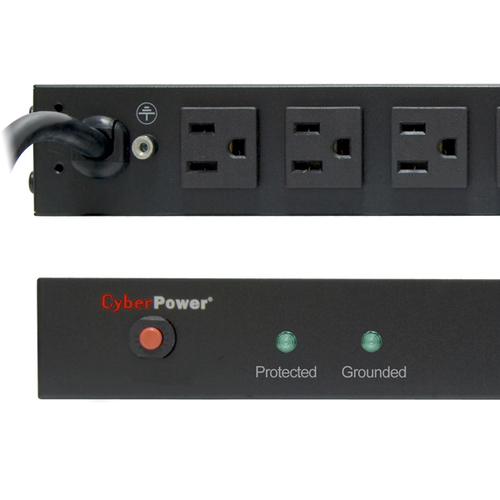

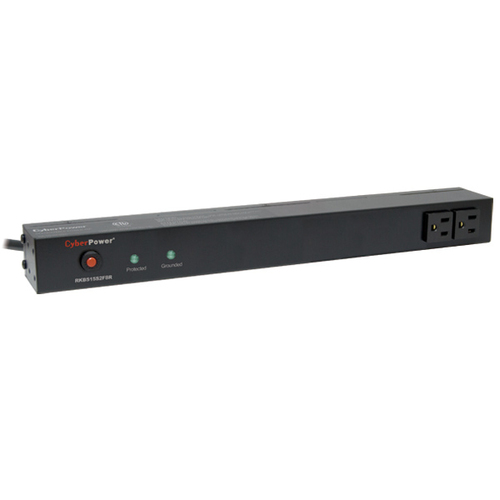

The CyberPower 10-outlet (2 Front and 8 Rear) rack mounted Rackbar surge suppressor (RKBS15S2F8R) provides 120V 15A output and a surge suppression rating of 3,600 joules. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P plug. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.
Specifications
Power
| Surge energy rating | 3600 J |
|---|
| AC outlets quantity | 10 AC outlet(s) |
|---|
| AC outlet types | NEMA 5–15R |
|---|
| Nominal input voltage | 120 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
Features
| Product colour | Black |
|---|
| Remote control included | No |
|---|
| Rack mounting | Yes |
|---|
| EMI/RFI noise filtering | Yes |
|---|
| EMI/RFI noise filtering | 50 dB |
|---|
| On/off switch | Yes |
|---|
Technical details
| Weight (imperial) | 1.82 kg (4.01 lbs) |
|---|
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Cable length | 4.57 m |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Certification | UL1363 UL1449, CSA C22.2 |
|---|
Indication
| LED indicators | Yes |
|---|
Other features
| Input connections | NEMA 5-15P |
|---|
| Depth (imperial) | 5.71 cm (2.25") |
|---|
| Height (imperial) | 44.5 cm (17.5") |
|---|
| Width (imperial) | 4.45 cm (1.75") |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
