Overview

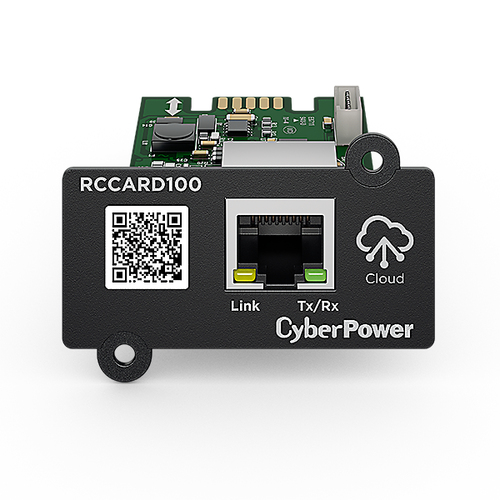

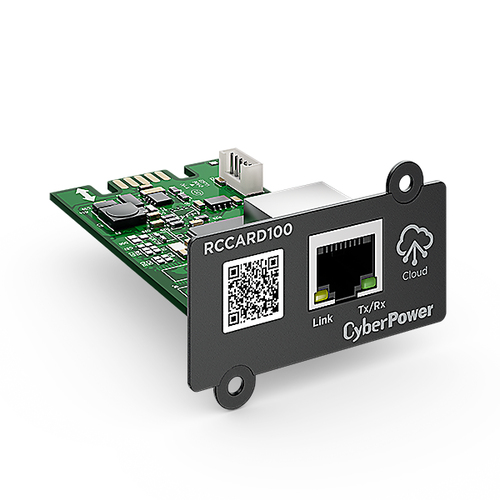

CyberPower RCCARD100 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the expansion slot on the UPS, users can add the UPS to the PowerPanel® Cloud system, thus enabling remote monitoring and management of the UPS, through a secure web portal or mobile app.
The card is plug-and-play design and features hot-swappable capability, allowing quick and easy installation without interrupting the operation of the UPS. In addition, the card supports user-upgradeable firmware, so users are able to keep the functionality up-to-date with ease.
Specifications
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Interface | Ethernet |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Network
| Maximum data transfer rate | 100 Mbit/s |
|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
|---|
| Ethernet LAN | Yes |
|---|
| Ethernet interface type | Fast Ethernet |
|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
|---|
| Cabling technology | 10/100BaseT(X) |
|---|
Design
| Component for | PC |
|---|
| Product colour | Black, Green, Metallic |
|---|
| Internal | Yes |
|---|
| Plug and Play | Yes |
|---|
| LED indicators | TX / RX, Link |
|---|
| Country of origin | China |
|---|
| Certification | CE, FCC Class B, RoHS |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -10 - 50 °C |
|---|
| Operating relative humidity (H-H) | 0 - 90% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
Sustainability
| Sustainability compliance | Yes |
|---|
Weight & dimensions
| Width | 54 mm |
|---|
| Depth | 76.5 mm |
|---|
| Height | 36.1 mm |
|---|
| Weight | 31 g |
|---|
Packaging data
| Package width | 170 mm |
|---|
| Package depth | 60 mm |
|---|
| Package height | 165 mm |
|---|
| Package weight | 300 g |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 8473302000 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
