CyberPower PR5000LCDRTXL5U uninterruptible power supply (UPS) Line-Interactive 5 kVA 4000 W
Part number PR5000LCDRTXL5U
SMART APP 5000VA RM 208V L6-30 5OUT UPS LCD PURESINE CUST PAYS FRT
- Line-Interactive
- 5 kVA 4000 W
- Sealed Lead Acid (VRLA)
- Black
- Manufacturer
- CyberPower
- Part number
- PR5000LCDRTXL5U
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview

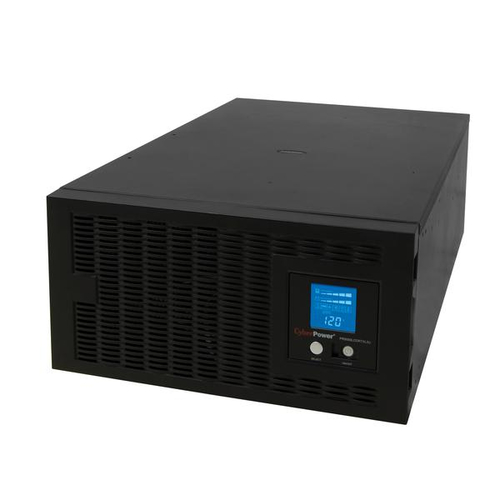

The CyberPower Smart App Sinewave PR5000LCDRTXL5U uninterruptible power supply (UPS) safeguards mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless Pure Sinewave power. Its full automatic voltage regulation (AVR) boost/buck topology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. Patented GreenPower UPS™ advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.

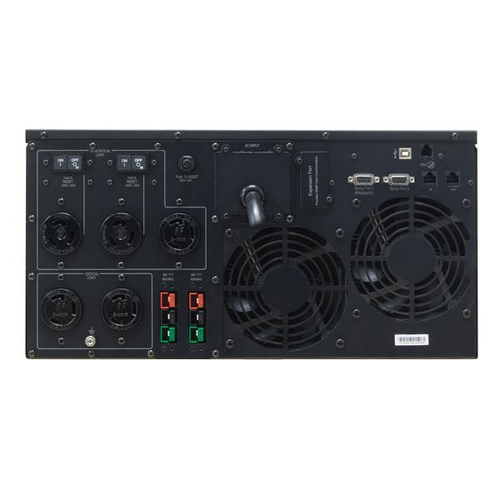

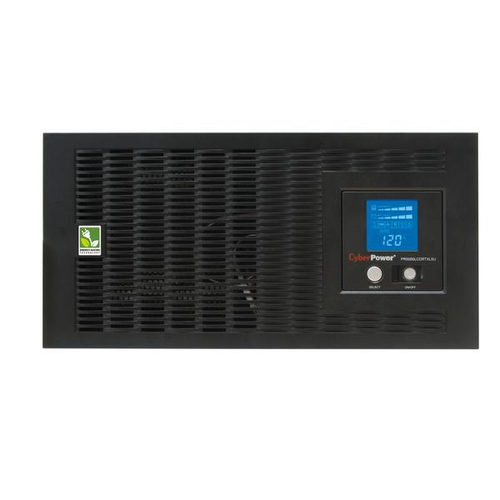

The PR5000LCDRTXL5U unit has a capacity of 5000VA/4000Watts, five (5) battery and surge-protected receptacles, including three (3) NEMA L6-30R twist lock receptacles and two (2) fail-safe NEMA L6-20R twist lock receptacles for critical loads. This UPS has sixteen (16) maintenance-free, user-replaceable 12V/9Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB, two (2) DB9 serial and one (1) emergency power off (EPO) port. Protection for phone/network (RJ11/RJ45) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel® Business Edition software for unsurpassed flexibility and control. The addition of an optional SNMP/Network card allows for remote management via web browser or network management system (NMS). A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.
This CyberPower extended runtime (XL) model allows for the addition of up to ten (10) external battery packs. The battery packs are easy to plug-in and can be "hot-swapped" to maintain system uptime during normal UPS maintenance. The BPL48V75ART2U battery pack is designed for this PR5000LCDRTXL5U model.
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 5 kVA |
| Output power | 4000 W |
| Surge energy rating | 2430 J |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| USB 2.0 ports quantity | 1 |
|---|---|
| Serial ports quantity | 2 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery recharge time | 8 h |
| Hot-swap battery | Yes |
| Rack capacity | 5U |
|---|---|
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certification | FCC, UL 1778, CSA C22.2 No. 107.3-05, ROHS |
|---|
| Weight | 100.7 kg |
|---|
| Dimensions (WxDxH) | 431.8 x 622.3 x 222.25 mm |
|---|---|
| Compatible operating systems | Windows 2000, 2003, XP, Vista, 7 |
| Operating temperature (T-T) | 32 - 104 °F |
| Management platform | Self Test, Auto-Charge, Auto-Restart |
