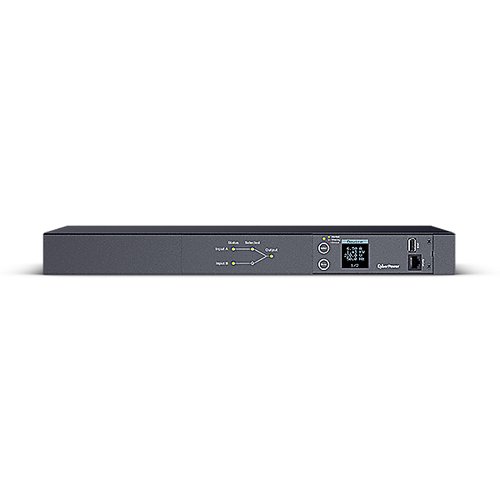

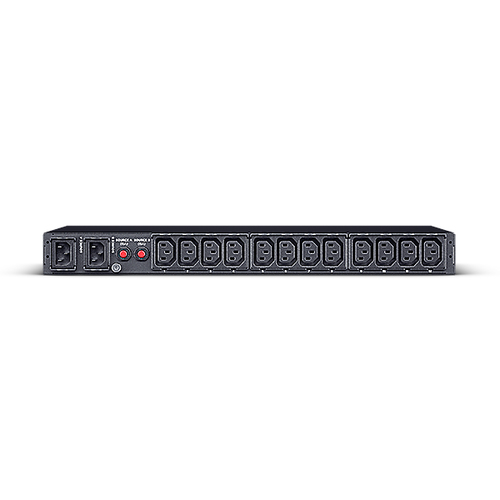

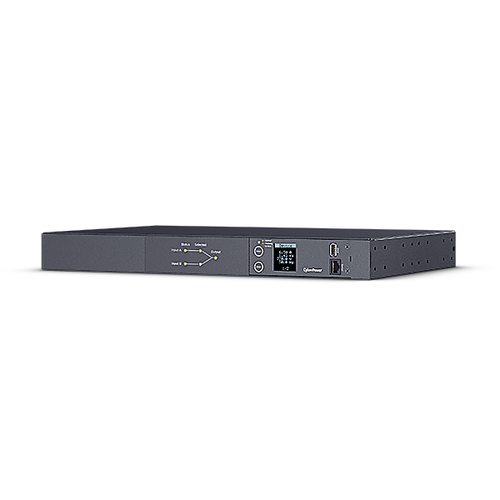

CyberPower PDU24004 power distribution unit (PDU) 12 AC outlet(s) 1U Black
Part number PDU24004
METERED ATS PDU 15A 208V 1U 12 IEC OUTLETS
- Real-time Local Monitoring
- Quick Transfer Time (Total < 10 ms)
- Digital Real-time Load Display
- Hot-swappable LCD Design
- Firmware Upgrade via USB
- Adjustable Mounting Brackets
- IEC Receptacle Locking
- Dual Inputs
- Industrial-grade Metal Housing
- User Configurable Color LCD
- LED Status Indicator
- User-upgradeable Firmware
- Manufacturer
- CyberPower
- Part number
- PDU24004
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
CyberPower PDU24004 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation.
The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.
Specifications
| PDU types | Managed, Switched |
|---|---|
| Type | Single-phase |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Steel |
| Product colour | Black |
| Display | LCD |
| On/off switch | Yes |
| AC outlets quantity | 12 AC outlet(s) |
|---|---|
| Power plug | IEC 60320 |
| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| Daisy chain | Yes |
|---|---|
| LED indicators | Yes |
| Cable length | 3.05 m |
| Monitoring | Current, Power, Voltage |
|---|
| Nominal input voltage | 200 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 12 A |
| Compliance certificates | CE, RoHS |
|---|---|
| Certification | CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368 |
| Sustainability compliance | Yes |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 15000 m |
| Width | 433 mm |
|---|---|
| Depth | 215 mm |
| Height | 44 mm |
| Weight | 3.5 kg |
| Package weight | 5.7 kg |
|---|---|
| Package width | 550 mm |
| Package depth | 398 mm |
| Package height | 125 mm |
| Country of origin | China |
|---|
