Products › Power & Rack Equipment

CyberPower

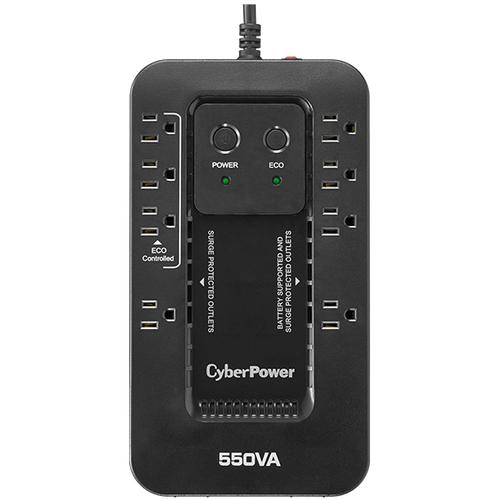

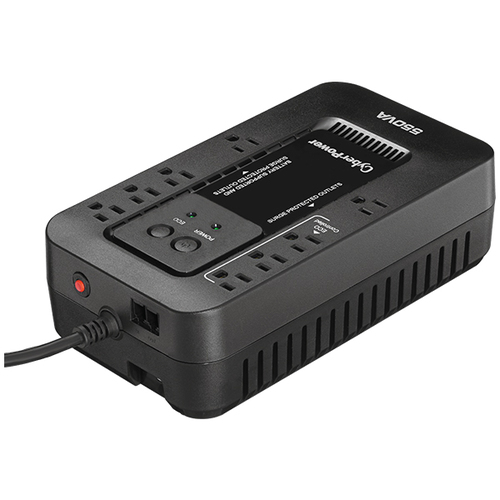

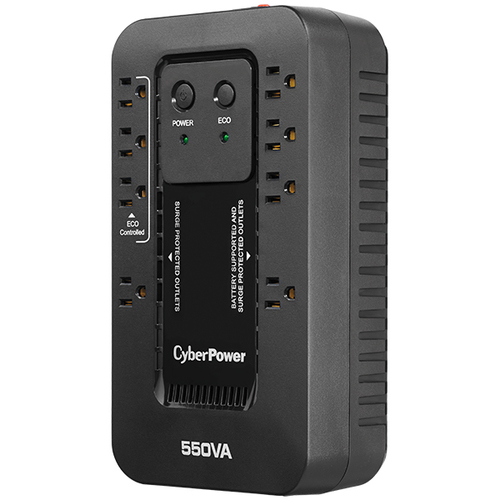

CyberPower EC550G uninterruptible power supply (UPS) Standby (Offline) 0.55 kVA 330 W 8 AC outlet(s)

Part number EC550G

550VA UPS 120V STANDBY ECOLOGIC ECO UPS 8 OUT 5-15R RJ11 5FT 3YR

  • Standby (Offline)
  • 0.55 kVA 330 W
  • Waveform: Sine
  • 8 AC outlet(s)
  • Sealed Lead Acid (VRLA) 12 V
  • Compact Black
Manufacturer
CyberPower
Part number
EC550G
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

The CyberPower ECO Series EC550G uninterruptible power supply (UPS) safeguards PCs and other electronics (monitors, cable DSL/ modems, and VoIP routers) from blackouts, brownouts, surges, spikes, sags, and other power abnormalities. Its composite integrated circuitry offers advanced lightning protection. Patented GreenPower UPS advanced circuitry reduces UPS energy costs and is an ENERGY STAR listed product.

The CyberPower EC550G has three surge protected ECO outlets. When ECO mode is on and the battery backup detects that your computer is off (or in Sleep mode), computer peripherals connected to the ECO outlets will be turned off (USB connection required). This provides additional reductions in power usage and greater energy savings.

The EC550G unit has a capacity of 550VA/330Watts, eight (8) NEMA 5-15R receptacles, including, 3 ECO mode outlets, and two (2) widely-spaced outlets to accommodate transformer-based plugs. Its compact design allows for horizontal or vertical placement, or it can be mounted on a wall. This UPS has a 12-volt maintenance-free sealed lead acid battery. Protection for phone/network (RJ11) is also included. EMI/RFI filters increase the immunity of the load to disturbances and surges.

A HID compliant USB port provides connectivity to the EC550G. PowerPanel Personal Edition UPS Management software is included to monitor the vitals of the UPS and will safely shutdown the system in case of a power outage.

A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $100,000 Connected Equipment Guarantee.

Specifications

Features
UPS topologyStandby (Offline)
Output power capacity0.55 kVA
Output power330 W
WaveformSine
Input operation voltage (min)96 V
Input operation voltage (max)140 V
Input frequency47/63 Hz
Surge energy rating526 J
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresModem, Telephone
Power protection featuresOverload
Audible alarm(s)Yes
Ports & interfaces
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
AC outlets quantity8 AC outlet(s)
USB 2.0 ports quantity1
Modem (RJ-11) ports2
Battery
Battery technologySealed Lead Acid (VRLA)
Battery voltage12 V
Typical backup time at full load2.4 min
Typical backup time at half load7.35 min
Battery recharge time8 h
Design
Form factorCompact
Cable length1.5 m
Product colourBlack
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Certificates
Compliance certificatesRoHS
CertificationUL1778, cUL 107.3, FCC
Sustainability
Sustainability certificatesENERGY STAR
Weight & dimensions
Width269.2 mm
Depth149.9 mm
Height78.7 mm
Weight2.72 kg
Packaging data
Bundled softwarePowerPanel
Other features
Nominal output voltage120 V

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
