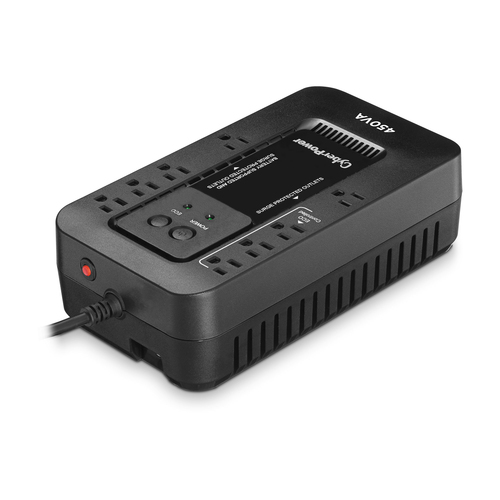

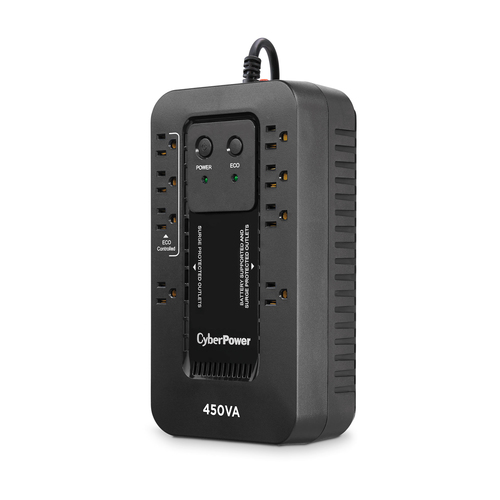

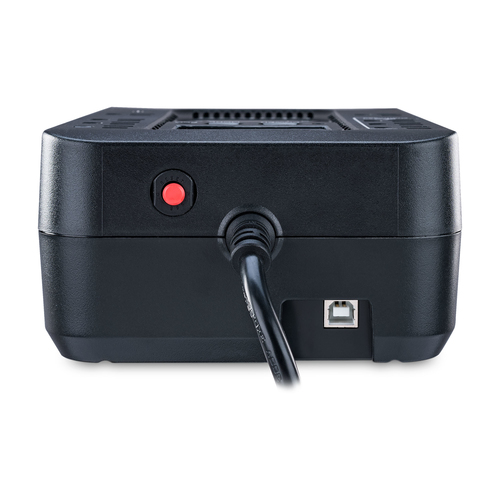

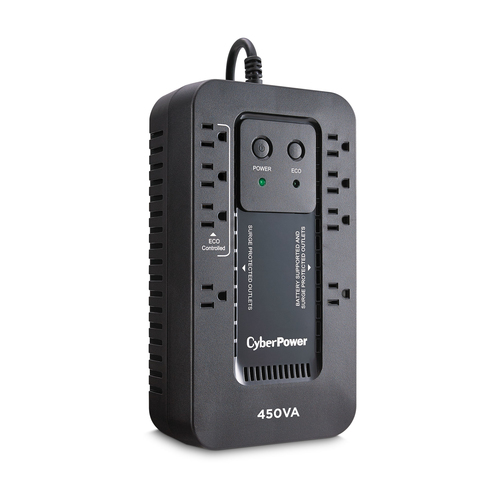

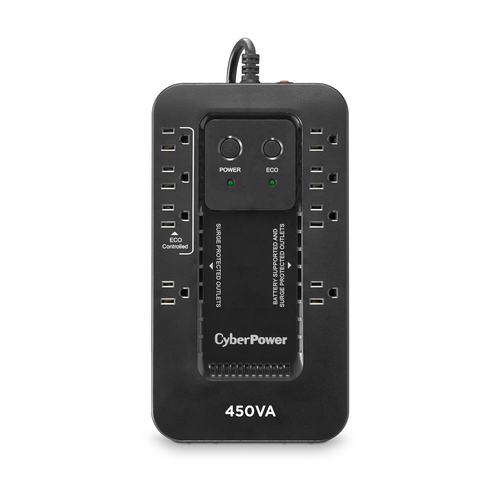

CyberPower EC450G uninterruptible power supply (UPS) Standby (Offline) 0.45 kVA 260 W 8 AC outlet(s)

Part number EC450G

450VA/260W COMPACT STANDBY UPS 8 NEMA 5-15R OUTLETS USB 3 YR WTY

  • Capacity: 450 VA / 260 W
  • Topology: Standby
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 5 ft. cord
  • Outlet types: 8 × NEMA 5-15R
  • Communication: USB
  • Management software: PowerPanel® Personal
Manufacturer
CyberPower
Part number
EC450G
Term
Term: 36 months
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

A compact UPS with standby topology, the CyberPower Ecologic EC450G provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC450G offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The EC450G comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.

Battery Backup

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection

Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Standby Topology

Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.

Simulated Sine Wave Output

Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.

GreenPower UPS™ High-Efficiency

Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.

ECO Mode

Is an energy-efficient, user selectable feature for some surge-protected outlets. When the computer is off or is in sleep mode, the UPS automatically cuts power to computer peripherals connected to any outlets in ECO mode.

LED Status Lights

Indicate Power On, ECO on/off.

PowerPanel® Personal Software

Includes a free software download that provides a user-friendly dashboard interface for controlling and monitoring the UPS.

ENERGY STAR

This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

Specifications

Features
UPS topologyStandby (Offline)
Output power capacity0.45 kVA
Output power260 W
WaveformSine
Input operation voltage (min)96 V
Input operation voltage (max)140 V
Input frequency47/63 Hz
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Output frequency50/60 Hz
Output voltage regulation5%
Maximum current10 A
Surge energy rating426 J
EMI/RFI noise filteringYes
Audible alarm(s)Yes
Audible alarm modesLow battery alarm, Overload alarm
Ports & interfaces
Power plugNEMA 5-15P
AC outlets quantity8 AC outlet(s)
USB portYes
Battery
Battery technologySealed Lead Acid (VRLA)
Battery capacity2.9 Ah
Battery voltage12 V
Number of battery cells1
Typical backup time at full load2 min
Typical backup time at half load6 min
Battery recharge time8 h
Design
Form factorCompact
Product colourBlack
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Certificates
Compliance certificatesRoHS
Safety regulation & standards
SafetyUL1778, cUL 107.3, FCC DOC Class B
Weight & dimensions
Width269 mm
Depth150 mm
Height79 mm
Weight2.04 kg
Packaging data
Package width111.2 mm
Package depth336.6 mm
Package height206.5 mm
Package weight2.49 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
