Overview
CyberPower Power Distribution Unit (PDU) provides additional outlets for managing your rackmount power needs.

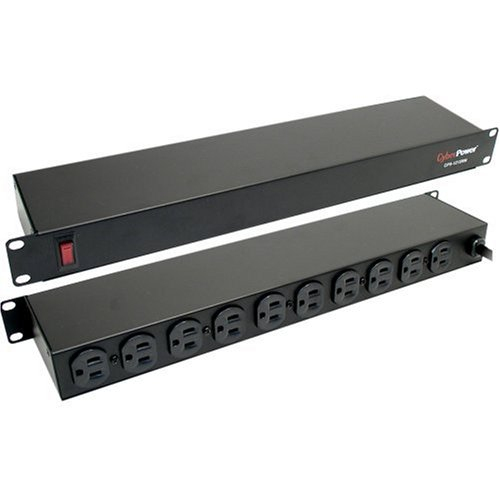

This 10-outlet rack mount power distribution unit (PDU) provides 120V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P input, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a durable metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A 3-year warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
Specifications
Design
| Rack capacity | 1U |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| I/O ports | 1 x NEMA 5-15P In
10 x NEMA 5-15R Out |
|---|
| Input connection type | NEMA 5-15P |
|---|
| Output connections | 10 x NEMA 5-15R |
|---|
Features
| Cable length | 4.57 m |
|---|
Power
| Nominal input voltage | 120 V |
|---|
| Maximum current | 15 A |
|---|
Certificates
| Certification | UL, ROHS |
|---|
Operational conditions
| Operating temperature (T-T) | -20 - 46 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
Weight & dimensions
| Width | 438.1 mm |
|---|
| Depth | 120.7 mm |
|---|
| Height | 44.5 mm |
|---|
| Weight | 2.27 kg |
|---|
