CyberPower CP2RAIL02 rack accessory Mounting kit
Part number CP2RAIL02
4POST RAIL KIT FOR UPS
- Adjustable range: From 20.1″ to 35.8″
- Weight capacity: Supports up to 500 lbs
- Attachment hardware included: Yes
- Manufacturer
- CyberPower
- Part number
- CP2RAIL02
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview

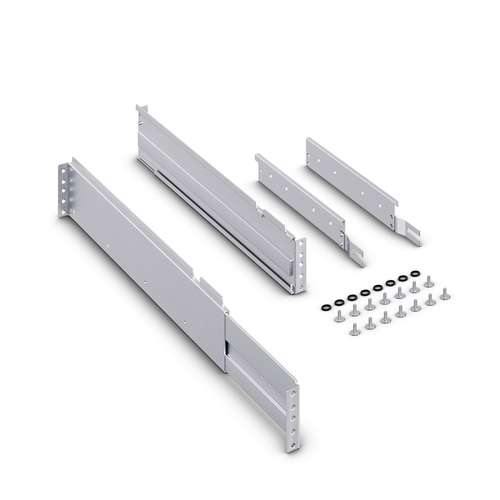

The CyberPower CP2RAIL02 4-post rackmount rail kit provides a mounting solution for select 2U and 3U UPS systems weighing up to 500 pounds. The two adjustable rails (right and left) can be expanded from 20.1" to 35.8" for various sizing requirements and installed by a single person.
4-Post Mounting
Secures equipment at both the front and back of the rack.
Single-Person Installation
Supports single-person installation by inserting half-thread screws into square holes on rear side for temporary support of rails.
Adjustable Rails
Extends from 20.1” to 35.8” for proper fit with various sizing requirements.
Slide-Out Rail Stop
Allows equipment to slide out a safe distance from the rack before locking in place.
Specifications
| Type | Mounting kit |
|---|---|
| Product colour | Steel |
| Housing material | Steel |
| Maximum weight capacity | 226.8 kg |
| Rack capacity | 3U |
| Compatibility | PR750RT2U, PR750RTXL2U, PR1000RT2U, PR1000RTXL2U, PR1500RT2U, PR2000RT2U |
| Width | 20 mm |
|---|---|
| Depth | 511 mm |
| Height | 86 mm |
| Weight | 2.72 kg |
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 137.2 mm |
| Package depth | 602 mm |
| Package height | 73.7 mm |
| Package weight | 2.99 kg |
| Mounting kit | Yes |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
