Overview

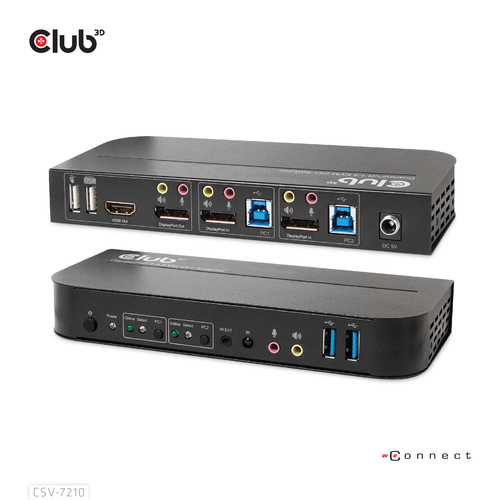

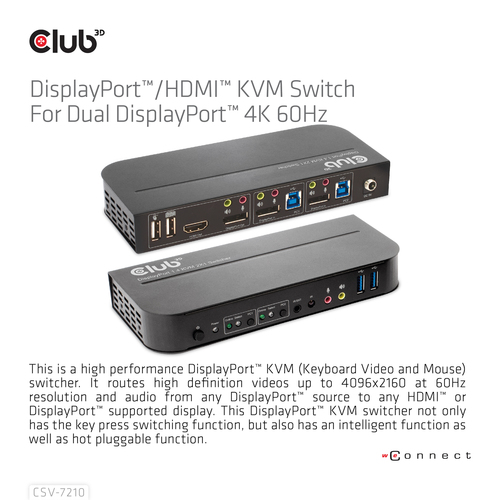

The CSV-7210 is a high performance DisplayPort™ KVM (Keyboard Video and Mouse) switcher. It routes high definition videos up to 4096x2160 at 60Hz resolution and audio from any DisplayPort™ source to any HDMI™ or DisplayPort™ supported display. This DisplayPort™ KVM switcher not only has the key press switching function, but also has an intelligent function as well as hot pluggable function.
Specifications
Ports & interfaces
| Number of computers controlled | 2 |
|---|
| Keyboard port type | USB |
|---|
| Mouse port type | USB |
|---|
| Video port type | HDMI/DisplayPort |
|---|
| HDMI ports quantity | 1 |
|---|
| DisplayPorts quantity | 3 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
|---|
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB B |
|---|
| Audio connections | Yes |
|---|
| Headphone outputs | 4 |
|---|
| Number of microphone inputs | 4 |
|---|
| DC-in jack | Yes |
|---|
Performance
| HD type | 4K Ultra HD |
|---|
| Maximum resolution | 4096 x 2160 pixels |
|---|
| Video bandwidth | 60 Hz |
|---|
| Data transfer rate (max) | 32.4 Gbit/s |
|---|
| High Dynamic Range (HDR) supported | Yes |
|---|
| HDCP | Yes |
|---|
| Plug and Play | Yes |
|---|
| HDCP version | 1.4/2.2 |
|---|
Design
| Rack mounting | No |
|---|
| Product colour | Black |
|---|
| Housing material | Metal |
|---|
| LED indicators | Yes |
|---|
Display
| Built-in display | No |
|---|
Power
| Power source | DC |
|---|
| Input voltage | 5 V |
|---|
| Power consumption (typical) | 12 W |
|---|
| External power adapter | Yes |
|---|
System requirements
| Windows operating systems supported | Yes |
|---|
| Linux operating systems supported | Yes |
|---|
| Mac operating systems supported | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Storage temperature (T-T) | -10 - 80 °C |
|---|
| Operating relative humidity (H-H) | 10 - 85% |
|---|
| Storage relative humidity (H-H) | 5 - 90% |
|---|
Weight & dimensions
| Width | 178 mm |
|---|
| Depth | 75 mm |
|---|
| Height | 26 mm |
|---|
| Weight | 370 g |
|---|
Packaging data
| Package width | 230 mm |
|---|
| Package depth | 65 mm |
|---|
| Package height | 210 mm |
|---|
| Package weight | 787 g |
|---|

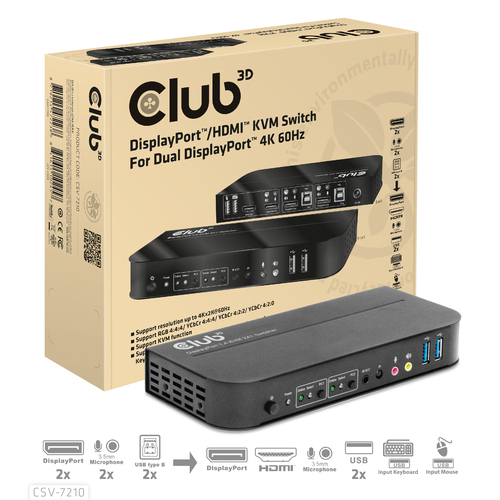

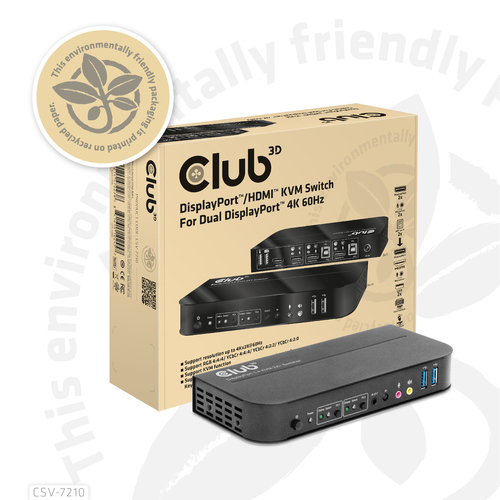

| Package type | Box |
|---|
| Paper/cardboard packaging weight | 147 g |
|---|
| Plastic packaging weight | 6 g |
|---|
| Total plastic packaging weight | 30 g |
|---|
| Total paper/cardboard packaging weight | 735 g |
|---|

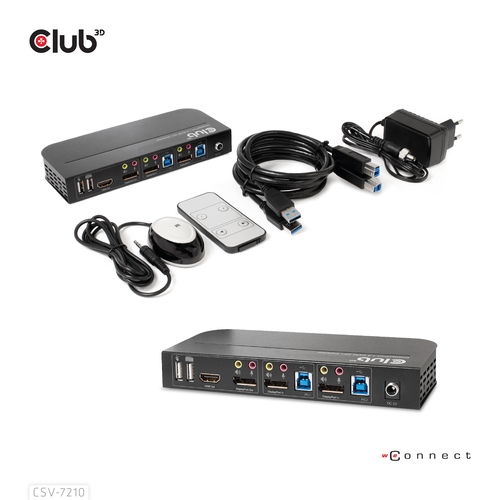

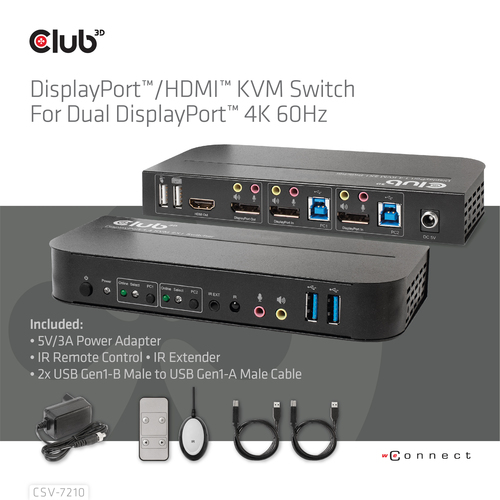

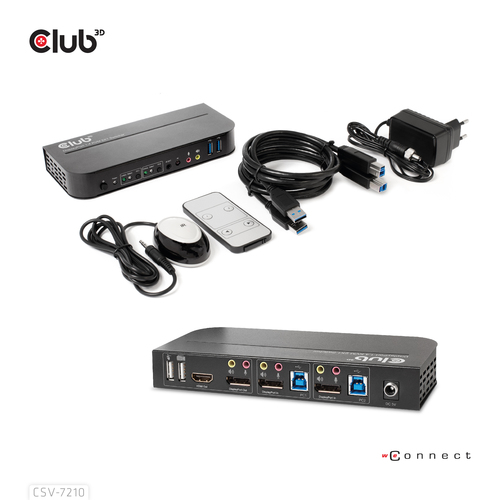

Packaging content
| Cables included | USB Type-A to USB Type-B |
|---|
| Quick installation guide | Yes |
|---|
| AC adapter included | Yes |
|---|
| Remote control included | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 8473 3020 |
|---|
