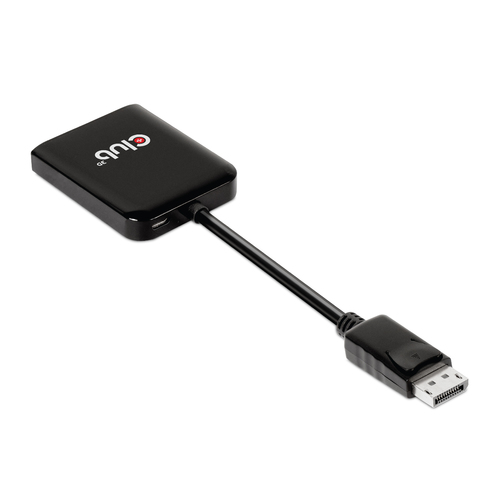

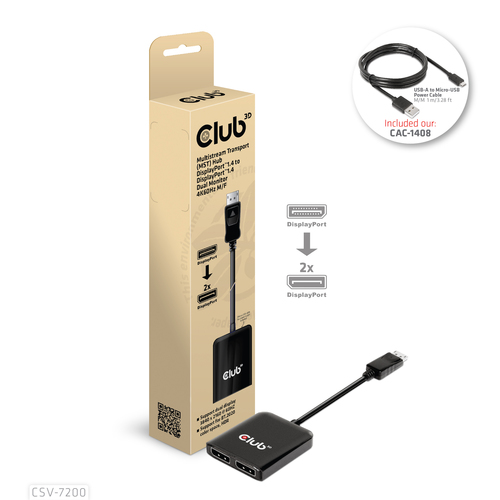

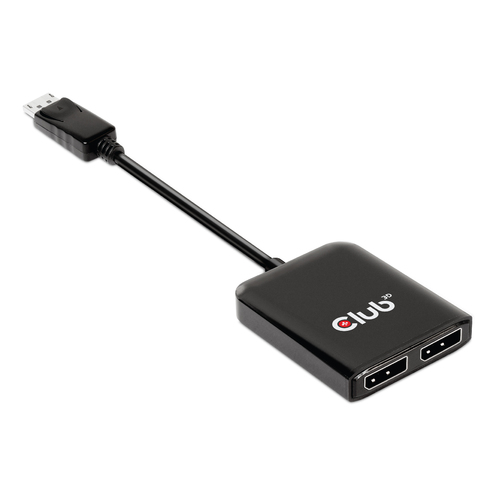

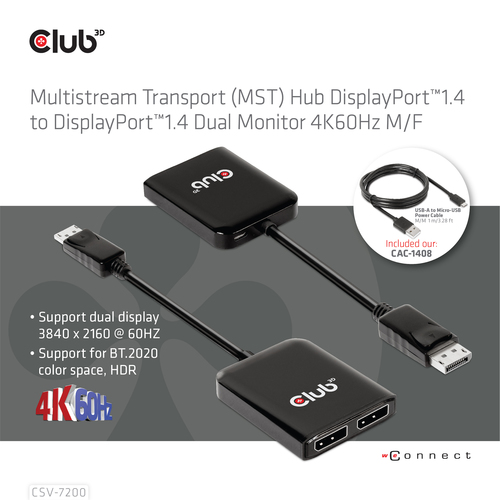

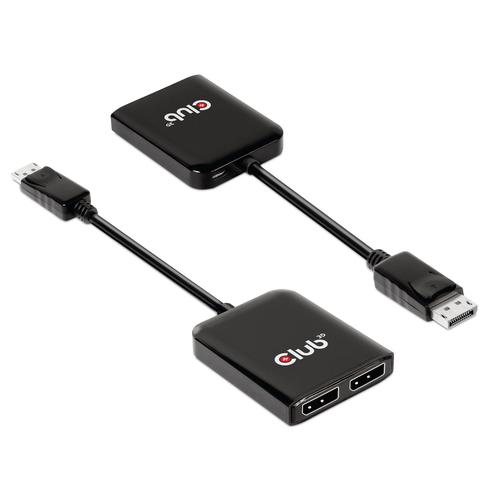

CLUB3D Multistream Transport (MST) Hub DisplayPort™1.4 to DisplayPort™1.4 Dual Monitor 4K60Hz M/F
Part number CSV-7200
CSV-7200 IS A DP1.4 ALT MODE TO DISPLAYPORT DUAL MONITOR 4K60HZ M/F MST HUB. THI
- Supports main link rates of 8.1Gbps (HBR3),5.4Gbps (HBR2), 2.7Gbps (HBR) and (1.62Gbps RBR) from source
- Supports up to Two HDMI™ 4K60Hz ports

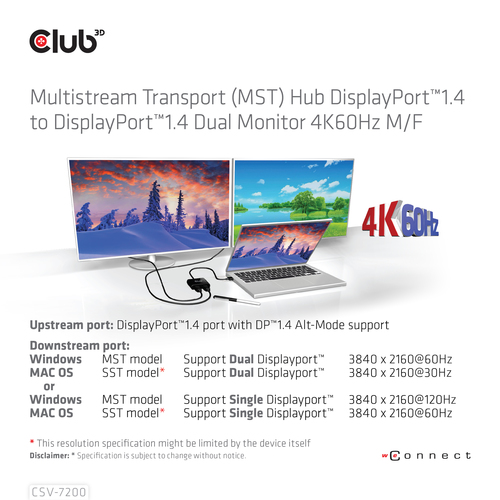

- Supported output resolutions:
- up to 3840*2160p @ 60Hz single or dual displays (Note when the source is DP1.4 and supports DSC1.2)
- 1x 3840*2160P/30HZ + 1x 1920*1080P/60HZ (DP1.2)
- Supports transmission of audio and video signals
- Works with AMD*, Nvidia™ and Intel™ HD Graphics solutions
- Plug and Play - no driver needed
- Functionality may vary per GPU and OS
- USB Bus Powered
- Compliant with: DisplayPort™ v1.4, DisplayPort™ v1.2, VESA DDM Standard, HDMI™ 4K60Hz
- Manufacturer
- CLUB 3D B.V
- Part number
- CSV-7200
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
Overview
The Club 3D CSV-7200H Multi Stream Transport (MST) Hub DisplayPort™ 1.4 to Dual HDMI 4K60Hz is an integrated solution that allows you to enjoy displaying content onto two different displays simultaneously under MST mode. The Two screens can accommodate displaying the same contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user’s visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station. It is the perfect solution for host devices that feature DP1.2 /1.4 graphic cards for gaming and commercial applications.
Specifications
| Video port type | DisplayPort |
|---|---|
| Video out | 2x DisplayPort |
| Video ports quantity | 2 |
| Product colour | Black |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| HDCP version | 1.4/2.2 |
| HDCP | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Plug and Play | Yes |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |

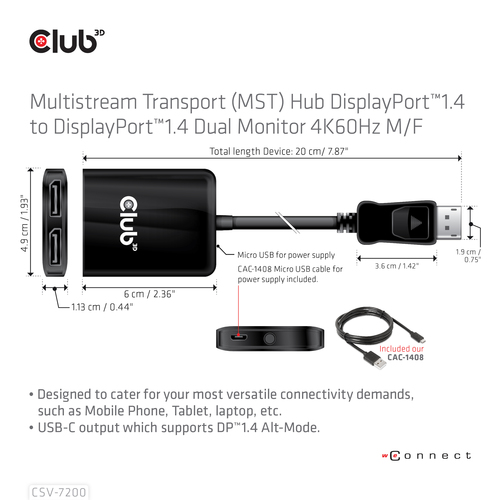

| Width | 60 mm |
|---|---|
| Depth | 49 mm |
| Height | 11.3 mm |
| Weight | 50 g |
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 60 mm |
| Package depth | 240 mm |
| Package height | 35 mm |
| Package weight | 28 g |
| Package type | Box |
| Plastic packaging weight | 5 g |
| Paper/cardboard packaging weight | 28 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Harmonized System (HS) code | 8473 3020 |
|---|
