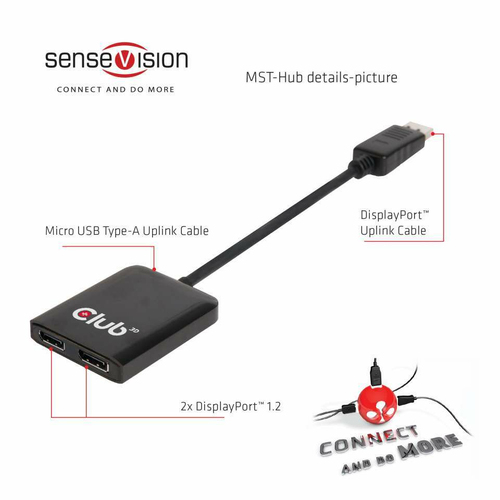

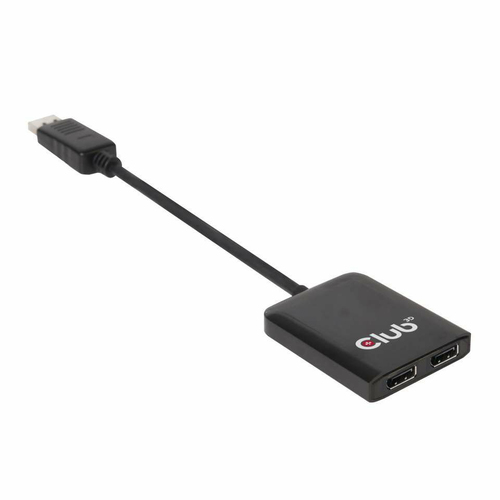

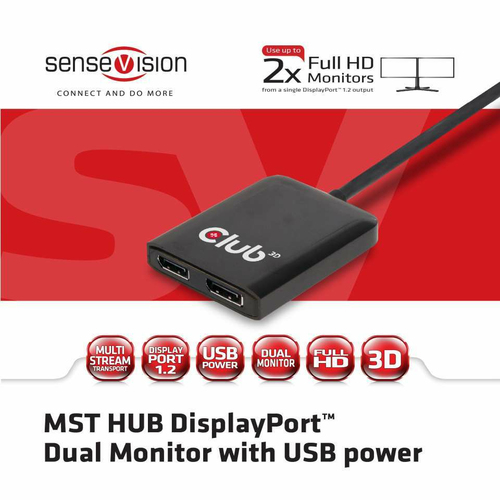

CLUB3D Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor
Part number CSV-6200
DP1.2 TO 2XDP 1.2 MST SPLITTER USB POWER
- Connect 2 Screens to a single DisplayPor™ t 1.2 output

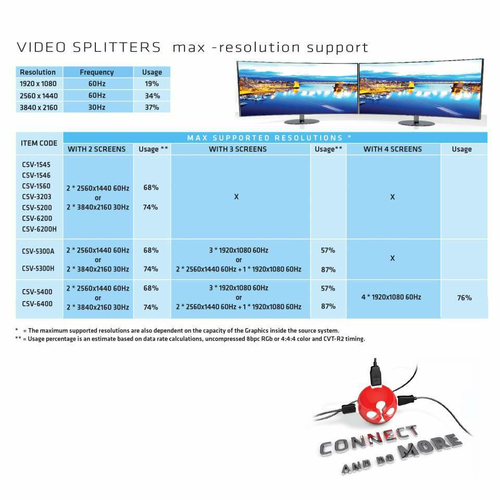

- Supports resolutions up to 2 x 3840x2160 30Hz or 250x1600 60 Hz
- Powered by USB
- Manufacturer
- CLUB 3D B.V
- Part number
- CSV-6200
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
Overview
CSV-6200 - The Club3D SenseVision MST Hubs utilise Multi Stream Transport, a unique DisplayPort™ 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming.
This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected screens. The CSV-6200 is Plug & Play and does not require any driver installation.
The Club3D MST Hubs do not increase the bandwidth of the DisplayPort™ 1.2 output of the source system, but it enables the optimal use of it.
Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.
Specifications
| Video port type | DisplayPort |
|---|---|
| Video in | Displayport 1.2 |
| Video out | 2x Displayport |
| Video ports quantity | 2 |
| DC-in jack | Yes |
| Product colour | Black |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Full HD | Yes |
| 3D | Yes |
| Maximum refresh rate | 60 Hz |
| Cable length | 0.2 m |
| HD-Ready | Yes |
| HDCP | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| Certification | EMI CE, FCC, ROHs, WEEE |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| AC input voltage | 5 V |
|---|---|
| Input current | 2 A |
| USB powered | Yes |
| Dimensions (WxDxH) | 244 x 49 x 11 mm |
|---|---|
| Weight | 54 g |
| Quantity per pack | 1 pc(s) |
|---|---|
| Package length | 16 cm |
| Package width | 240 mm |
| Package depth | 18 mm |
| Package weight | 9 g |
| Package type | Polybag |
| Manual | Yes |
|---|---|
| Cables included | Micro-USB |

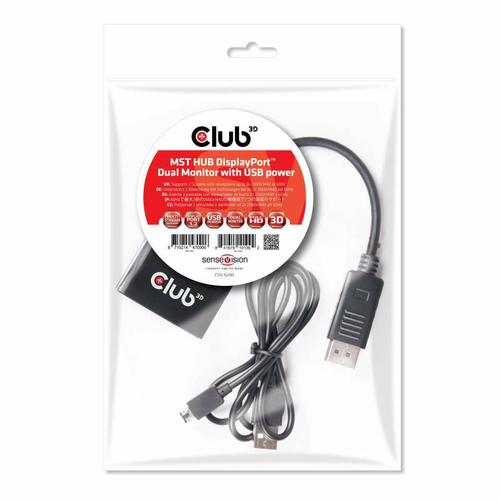

| Packaging content | -Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Dual Monitor USB Powered -USB to Micro USB Cable for power -Quick install guide |
| Connection to PC | Yes |
|---|---|
| Technical features | Resolutions up to: 2 x 3840 x 2160 at 30Hz or 2 x 2560 x 1440 at 60Hz |
| Harmonized System (HS) code | 85176990 |
|---|---|
| Products per master (outer) case | 5 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
